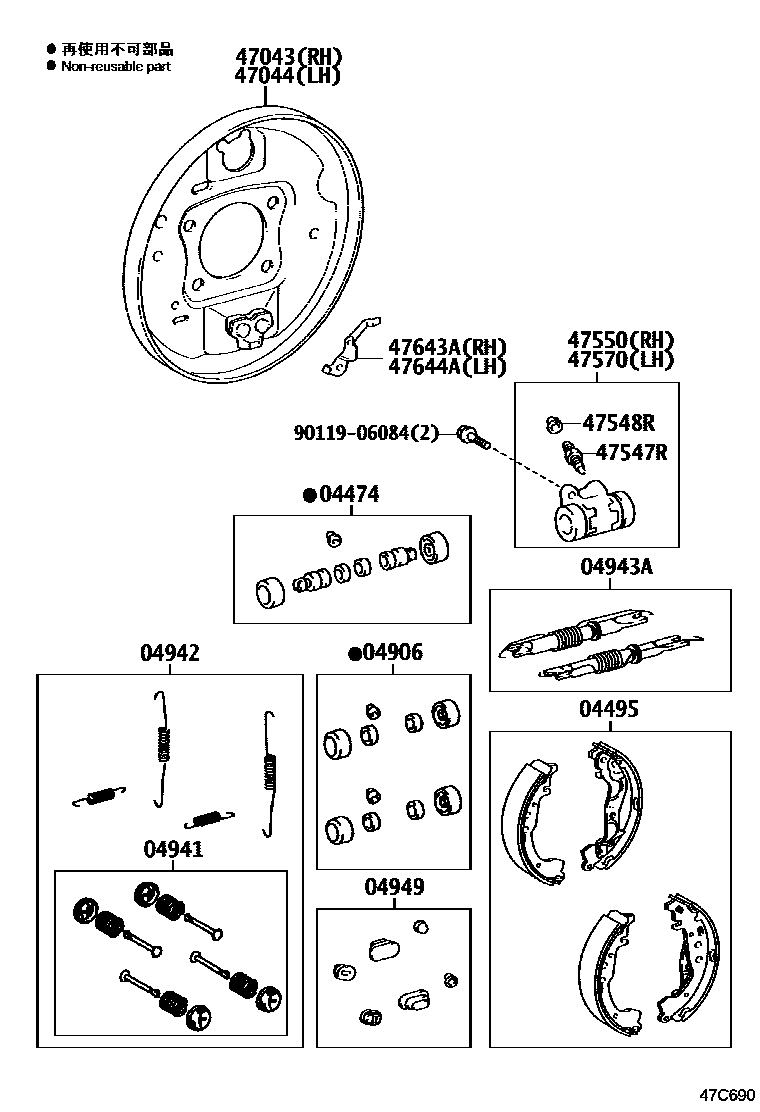

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iMXPA10202401-202501

main04474-52140×2iMXPH10202401

04495SHOE KIT, REAR BRAKE

main04495-52121iMXPH10202401

MARK NBK LN521

main04495-52170iMXPA10..6F202005-202207

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iMXPA10..6F202005-202207

main04906-28040iMXPH10202401

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iMXPH10202401

main04941-46010iMXPA10202401-202501

04942SPRING KIT, REAR BRAKE

main04942-13030iMXPH10202401

main04942-52050iMXPA10,MXPH10..CVT202005-202401

04943ASTRUT KIT, REAR BRAKE

main04943-12010iMXPA10202401-202501

main04943-52030iMXPH10202401

04949PLUG KIT, REAR BRAKE

main04949-12010iMXPA10..6F202005-202207

main04949-13010iMXPH10202401

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iMXPA10202401-202501

main47043-52120iMXPH10202401

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iMXPA10..6F202005-202207

main47044-52120iMXPH10202401

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iMXPA10,MXPH10..CVT202005-202401

main47547-27030×3iMXPH10202401

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iMXPA10..6F202005-202207

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iMXPA10,MXPH10..CVT202005-202401

main47550-28060iMXPH10202401

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iMXPH10202401

main47570-20101iMXPA10..6F202005-202207

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52102iMXPA10,MXPH10..CVT202005-202401

main47643-52120iMXPH10202401

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52102iMXPA10..6F202005-202207

9011906084

main90119-06084

16 parts on this diagram · 3 diagrams in section
