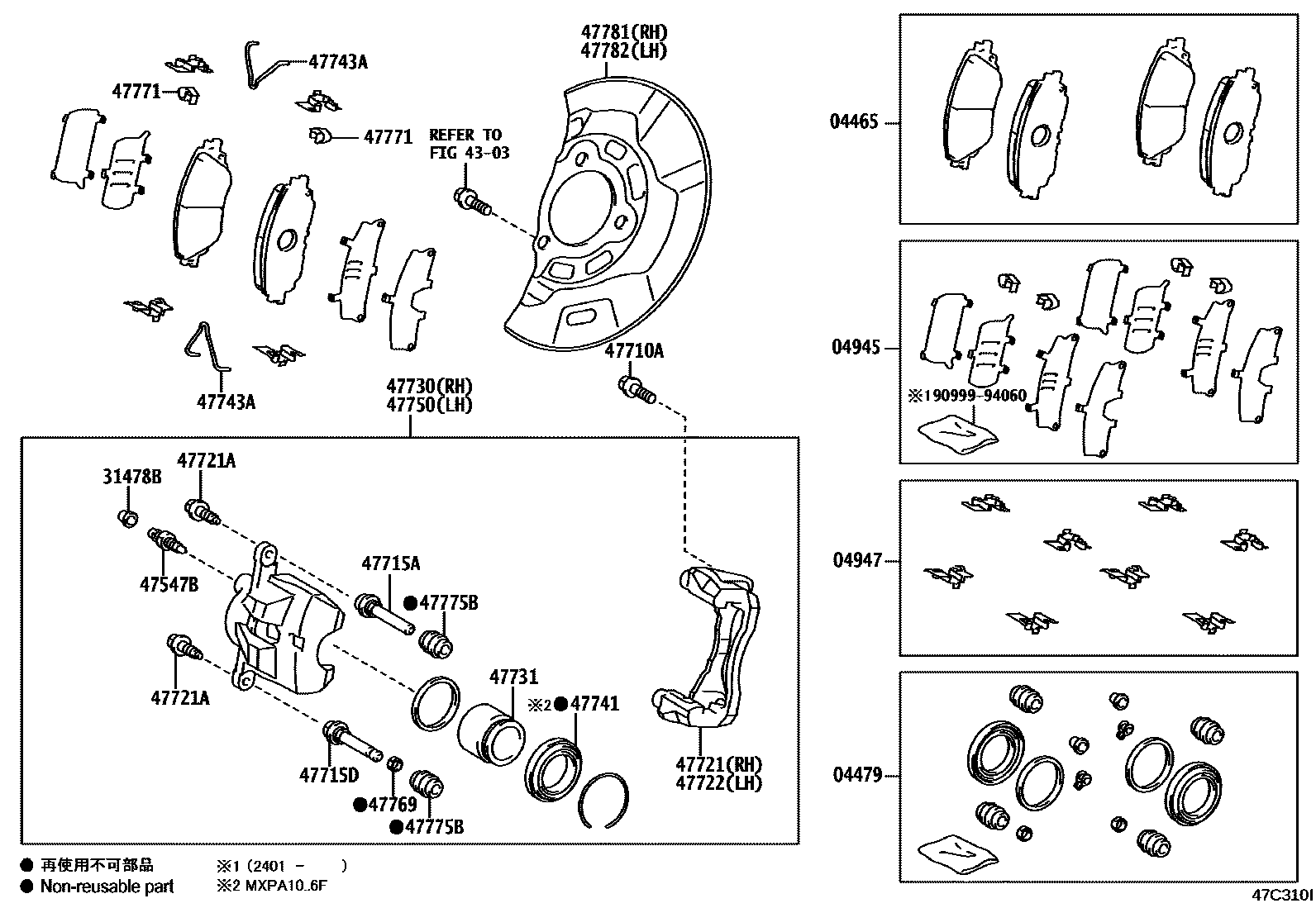

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-K0020iMXPA10..6F202005-202501

MARK AK NS435H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12120iMXPA10202005-202501

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-K0000iMXPA10..6F202005-202501

04947FITTING KIT, DISC BRAKE, FRONT

main04947-K0000iMXPA10..6F202005-202501

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMXPA10..6F202005-202501

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMXPA10..6F202005-202501

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXPA10..6F202005-202501

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iMXPA10..6F202005-202501

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iMXPA10..6F202005-202501

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-K0010iMXPA10..6F202005-202501

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMXPA10..6F202005-202501

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-K0010iMXPA10..6F202005-202501

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-K0010iMXPA10..6F202005-202501

47731PISTON, FRONT DISC BRAKE

main47731-52190iMXPA10..6F202005-202501

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-12B00iMXPA10..6F202005-202207

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12090iMXPA10..6F202005-202501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-K0010iMXPA10..6F202005-202501

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMXPA10..6F202005-202501

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMXPA10..6F202005-202501

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMXPA10..6F202005-202501

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-K0010iMXPA10..6F202005-202501

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-K0010iMXPA10..6F202005-202501

9099994060

main90999-94060

24 parts on this diagram · 1 diagram in section
