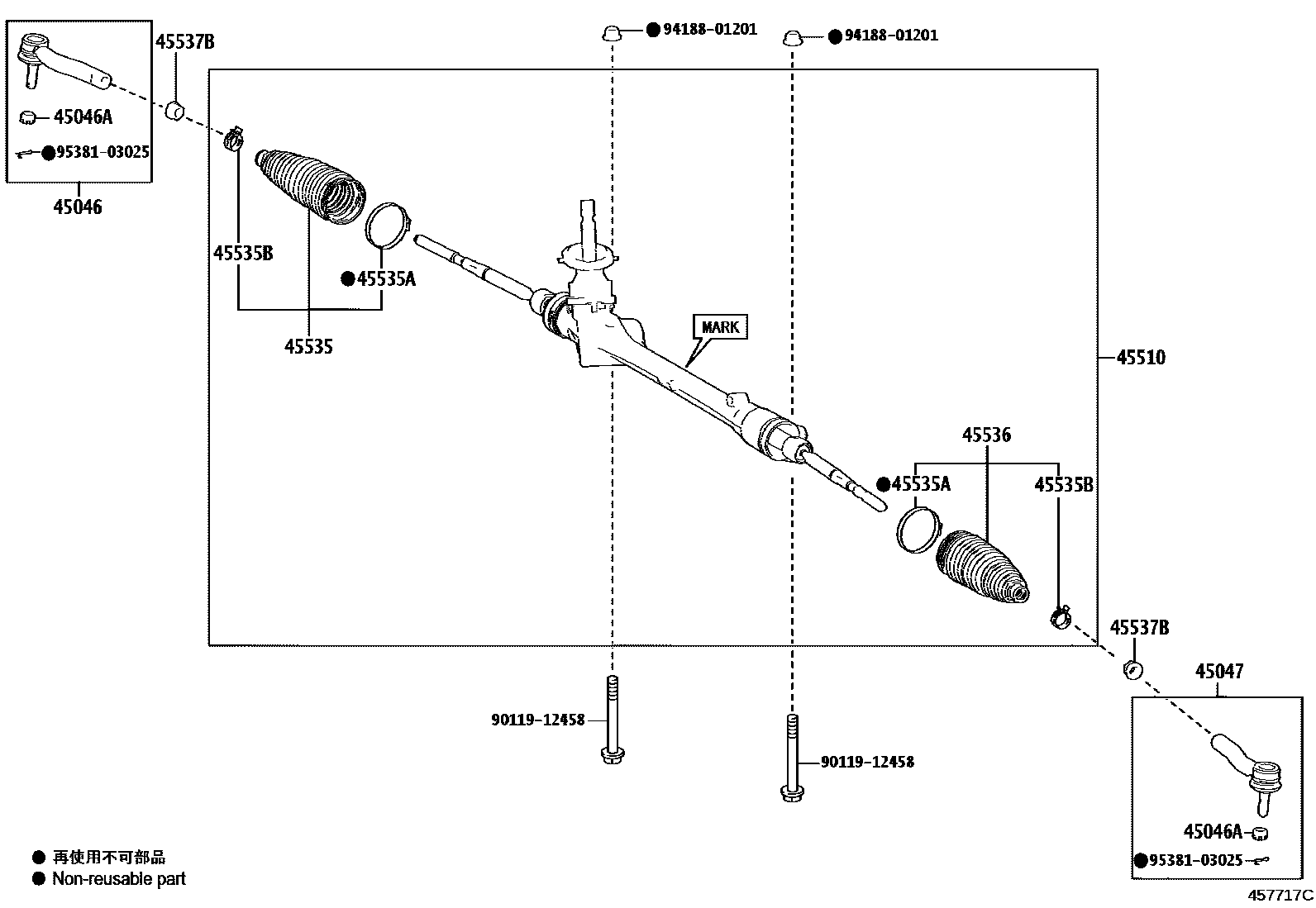

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-K9015iMXPA10,MXPH10..CVT202005-202401

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMXPA10..6F202005-202207

45047END SUB-ASSY, TIE ROD, LH

main45047-K9015iMXPA10,MXPH10..CVT202005-202401

45510GEAR ASSY, STEERING

main45510-K0020iMXPA10202401-202501

MARK=98

main45510-K0010supersedes 45510-K0020iMXPA10..6F202005-202207

TIRE & DISC WHEEL-175/70R14 STEEL,MARK=97

45535BOOT, STEERING RACK, NO.1

main45535-59075iMXPA10..6F202005-202207

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020×2iMXPA10,MXPH10202005-202401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iMXPA10,MXPH10202005-202401

45536BOOT, STEERING RACK, NO.2

main45535-59075iMXPA10..6F202005-202207

45537BNUT, RACK END LOCK

main90179-14019×2iMXPA10..6F202005-202207

9011912458

main90119-12458

9418801201

main94188-01201

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
