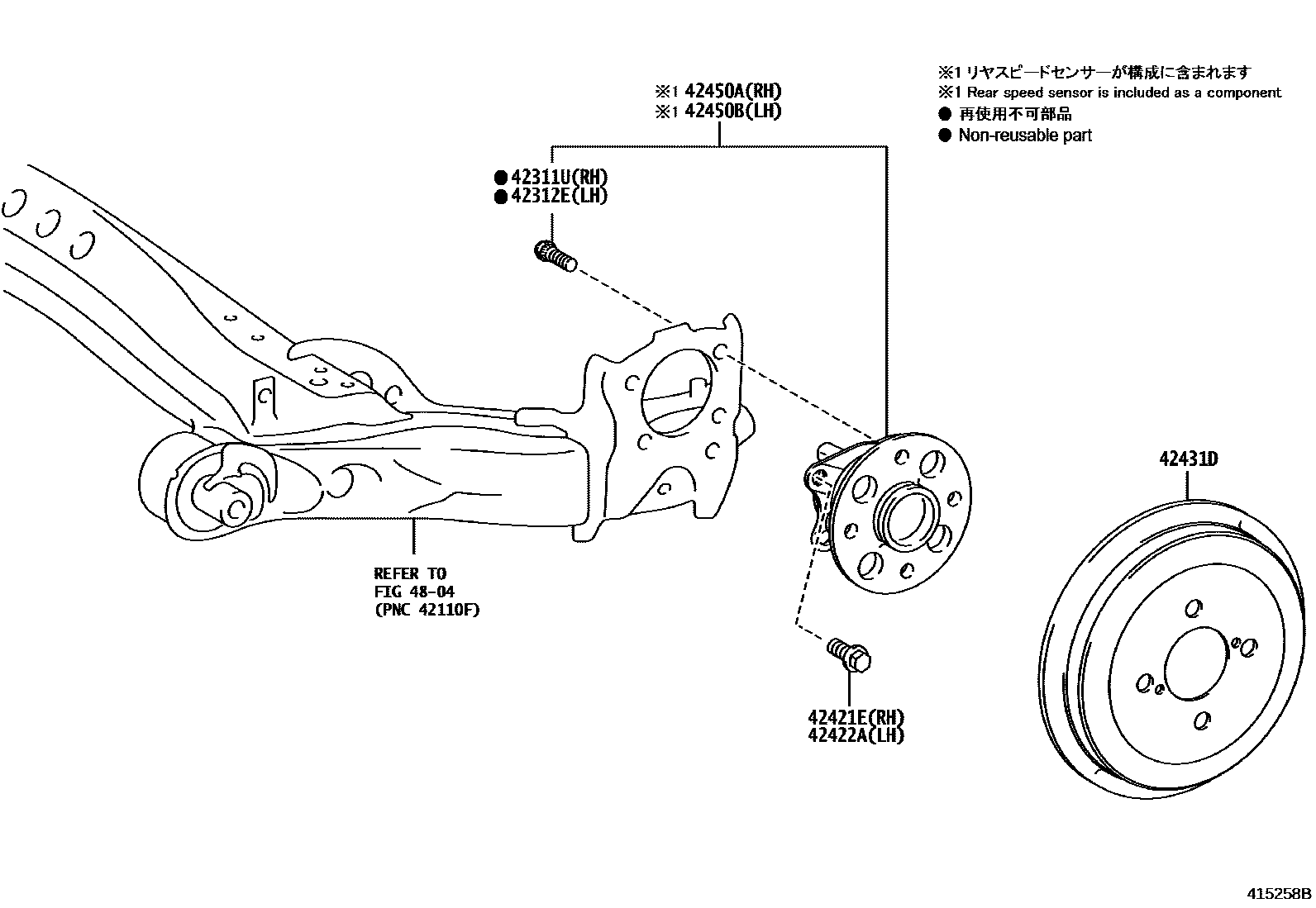

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iMXPA10,MXPH10..CVT202005-202401

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iMXPA10..6F202005-202207

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMXPA10..6F202005-202207

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iMXPA10202401-202501

42431DDRUM, BRAKE

main42431-52090×2iMXPH10202401

main42431-K0020×2iMXPA10,MXPH10..CVT202005-202401

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-K0010iMXPA10202401-202501

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-K0010iMXPA10..6F202005-202207

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
