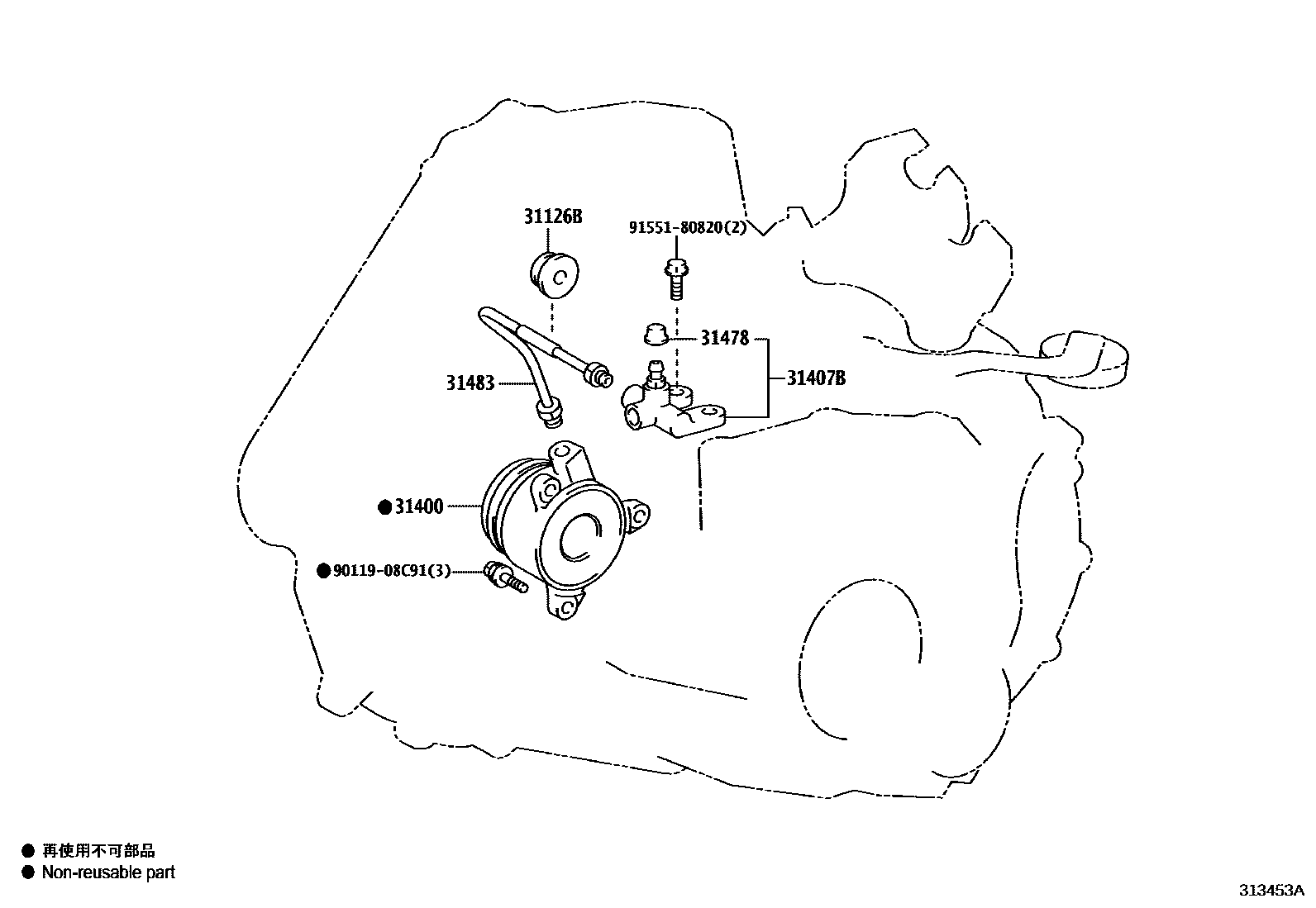

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-20090iMXPA10..6F202005-202205

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-59025iMXPA10..6F202005-202205

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iMXPA10..6F202005-202205

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMXPA10..6F202005-202205

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-52090iMXPA10..6F202005-202205

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
