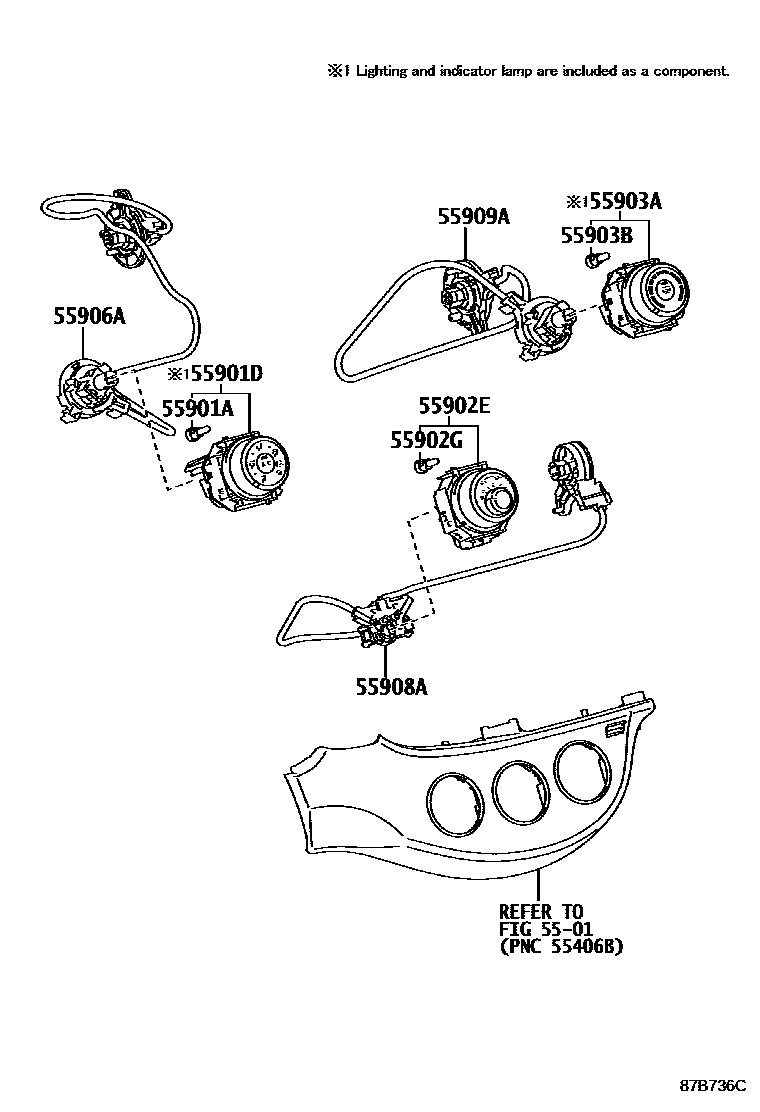

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
FRONT AIR CONDITIONER-AUTO
55901DCONTROL SUB-ASSY, HEATER, NO.1
main55901-52230iNCP13#..LHD..GEN; NCP130..ARL;NCP131..ARL,GCC; NCP131..ARL,GCC; NCP131..GEN;NCP130..GCC,GEN201108-201407
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION,L/KNOB PLATING; FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-MANUAL(ONLY BOOST BENT)
FRONT AIR CONDITIONER-AUTO; S PACKAGE&FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-DEALER OPTION,CHROME PLATED
55902ECONTROL SUB-ASSY, HEATER, NO.2
FRONT AIR CONDITIONER-AUTO; S PACKAGE&FRONT AIR CONDITIONER-AUTO
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
FRONT AIR CONDITIONER-AUTO; REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-AUTO
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-52550supersedes 55903-52670iNCP13#..ARL; NCP130..GCC; NCP130..GEN;NCP131..LHD; NCP131..ARL201108-201407
FRONT AIR CONDITIONER-AUTO; REAR WINDOW DEFOGGER-WITH(TIMER); REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-MANUAL
REAR WINDOW DEFOGGER-WITH(TIMER); REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-MANUAL(ONLY BOOST BENT)
FRONT AIR CONDITIONER-MANUAL(ONLY BOOST BENT)
main55903-52670supersedes 55903-52580iNCP130..5F..ARL; NCP130..GCC; NCP130..GEN;NCP131..LHD; NCP131..GCC201108-201407
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL; REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-AUTO; REAR WINDOW DEFOGGER-WITHOUT
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
FRONT AIR CONDITIONER-AUTO; REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-AUTO
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO; S PACKAGE
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
10 parts on this diagram · 8 diagrams in section
