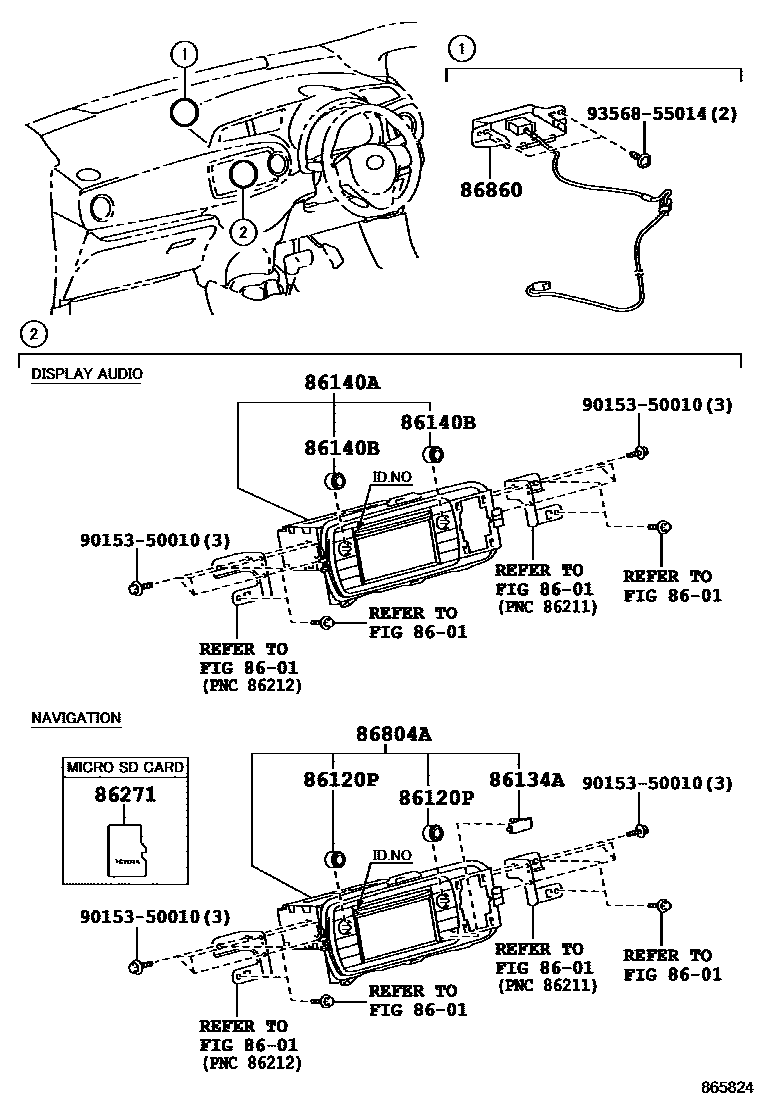

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120PKNOB, NAVIGATION RECEIVER SWITCH

86134APARTS, MULTI-DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-52190i201407-201701

FUJITSU TEN,ID100338

FUJITSU TEN,ID100763

FUJITSU TEN,ID100763,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

FUJITSU TEN,ID100763,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-23047i201407-201701

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

86271DISC, DISC PLAYER

86804ASUB-ASSY, NAVIGATION COMPUTER

86860ANTENNA ASSY, NAVIGATION

9015350010

9356855014

10 parts on this diagram · 1 diagram in section
