EPC Data

ANTI-THEFT DEVICE

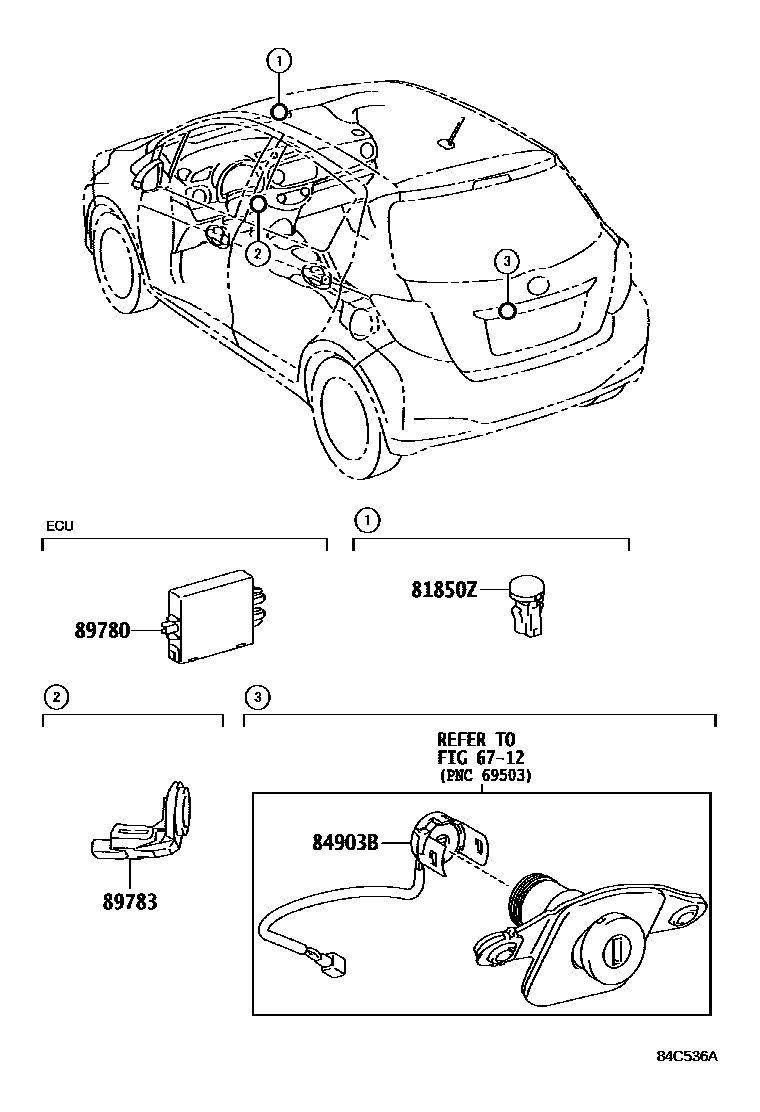

Parts diagram
6712LOCK CYLINDER SET
→ Go to FIG 67-12
81850ZLAMP ASSY, THEFT WARNING INDICATOR
main81850-52010i201108-201407
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
84903BSWITCH SUB-ASSY, DOOR UNLOCK
main84903-52030i201108-201407
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP); POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-52150i201407-201701
main89780-52210i201108-201407
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89783AMPLIFIER, TRANSPONDER KEY
main89783-52060i201108-201209
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
main89783-52061i201210-201407
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

5 parts on this diagram · 3 diagrams in section
