WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

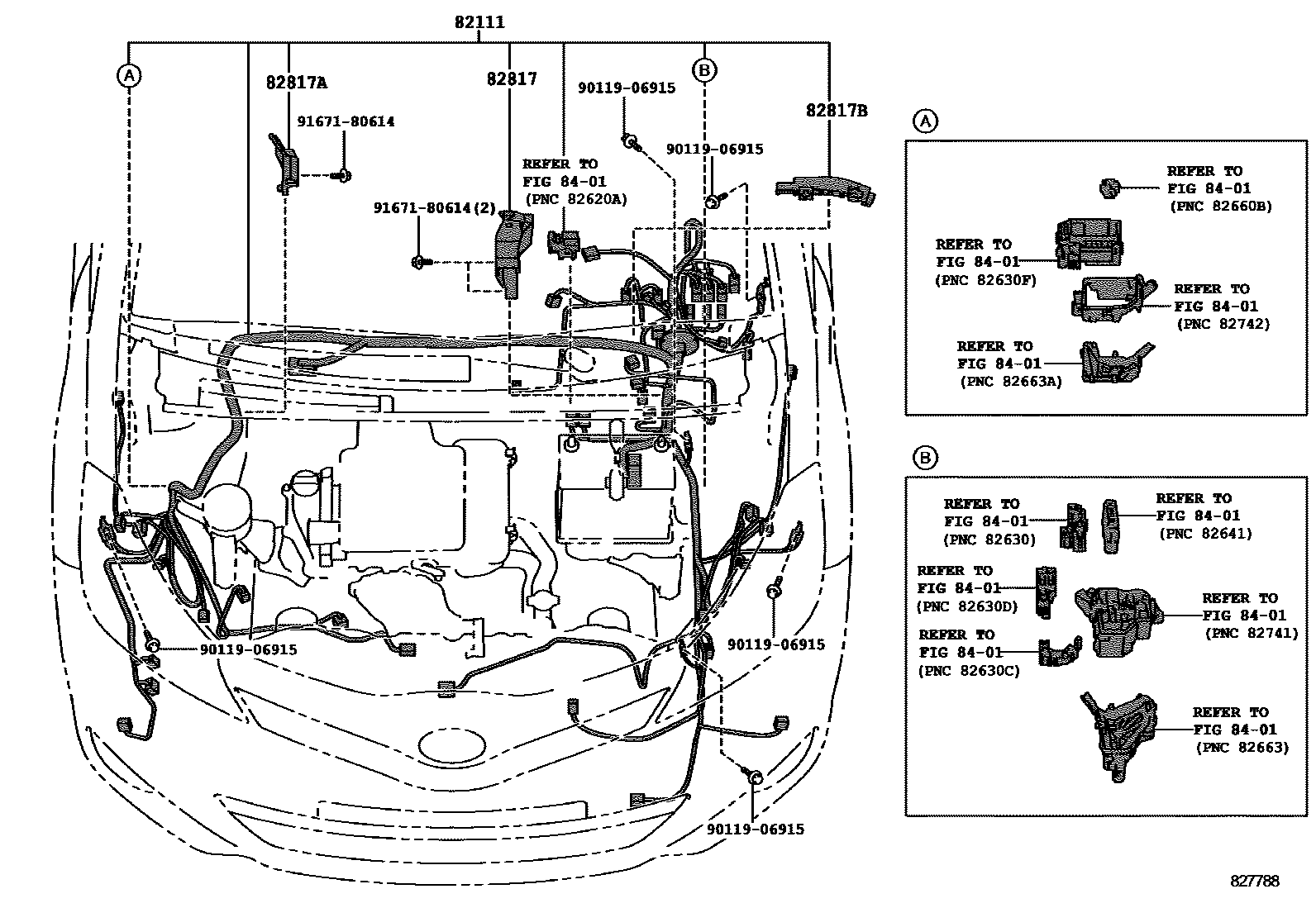

82111WIRE, ENGINE ROOM MAIN

main82111-5CE20iNCP130..5F..ARL201108-201407

main82111-5CE30iNCP130..4FC..ARL201108-201407

main82111-5CE40iNCP131..ARL201108-201407

main82111-5CE50iNCP130..RHD..GEN201108-201407

main82111-5CJ40iNCP13#..LHD..4FC201108-201407

main82111-5CJ60iNCP13#..LHD..5F201108-201407

main82111-5CX00iNCP13#201407-201609

main82111-5CX01iNCP13#201609-201701

main82111-5DJ90iNCP13#201701

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52A20iNCP13#201108-201701

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-52C00iNCP13#201108-201701

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-52B70iNCP13#..LHD201108-201407

8401

9011906915

main90119-06915

9167180614

main91671-80614

7 parts on this diagram · 10 diagrams in section
