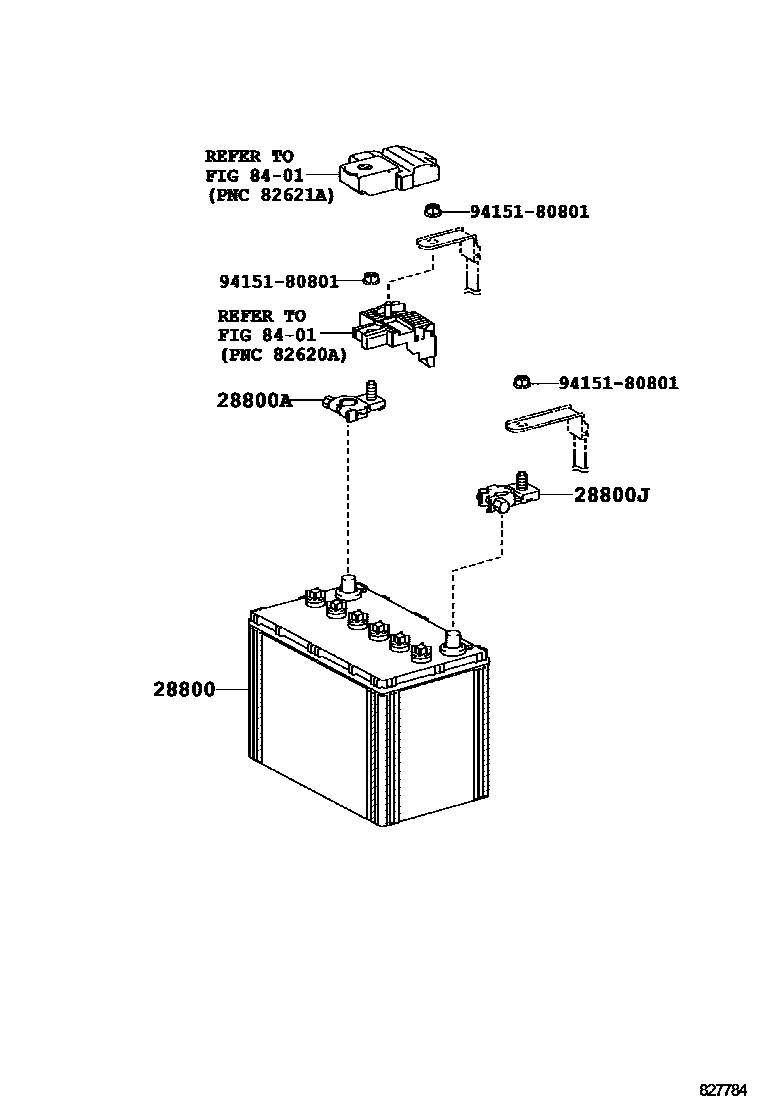

BATTERY & BATTERY CABLE

28800BATTERY

main28800-20060i1NZFE,2NZFE..NCP13#201204-201407

55B24L(S),FURUKAWA

main28800-22040i1NZFE,2NZFE..NCP13#201701-202001

46B24L(S),PANASONIC

main28800-74261i1NZFE,2NZFE..NCP13#201108-201204

46B24L(S),FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1NZFE,2NZFE..NCP13#201108-201407

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1NZFE,2NZFE..NCP13#201108-201407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

5 parts on this diagram · 1 diagram in section
