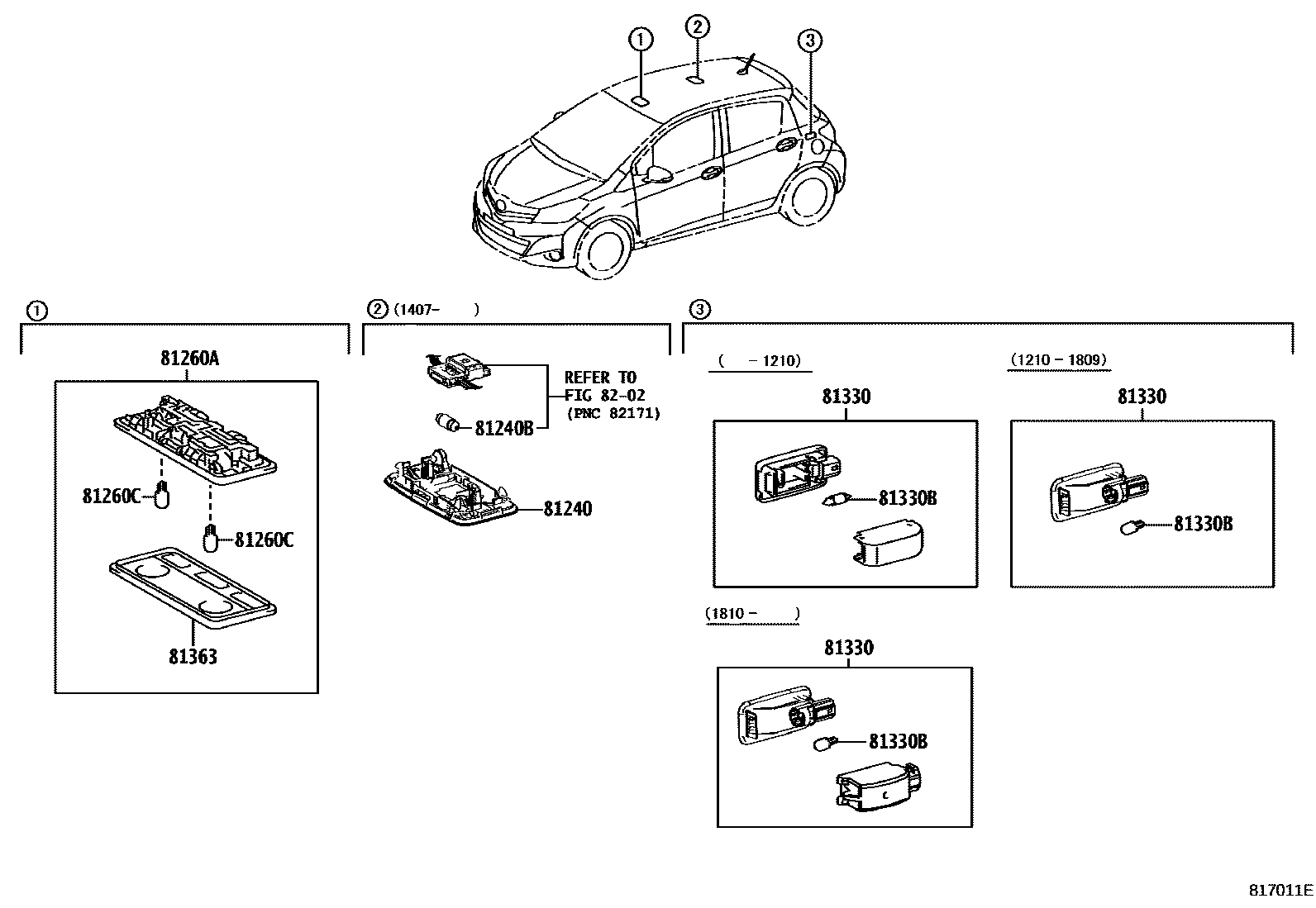

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0i201701-201905

LT.GRAY,TRIM2#

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

12V 8W

81260ALAMP ASSY, MAP

LT.GRAY,TRIM2#

main81260-52120-B0i201407-201701

LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

81260CBULB(FOR MAP LAMP)

main99132-12050×2i201108-201302

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-05050i201108-201210

PACKAGE TRAY TRIM & TONNEAU COVER-WITH(PACKAGE TRAY)

main81330-30100i201210-201407

PACKAGE TRAY TRIM & TONNEAU COVER-WITH(PACKAGE TRAY)

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-WE003i201108-201210

12V 5W; 12V 5W,PACKAGE TRAY TRIM & TONNEAU COVER-WITH(PACKAGE TRAY)

main99132-12050i201210-201407

12V 5W; 12V 5W,PACKAGE TRAY TRIM & TONNEAU COVER-WITH(PACKAGE TRAY)

81363LENS, ROOM LAMP, OUTER

main81363-52010i201108-201302

8202WIRING & CLAMP

8 parts on this diagram · 1 diagram in section
