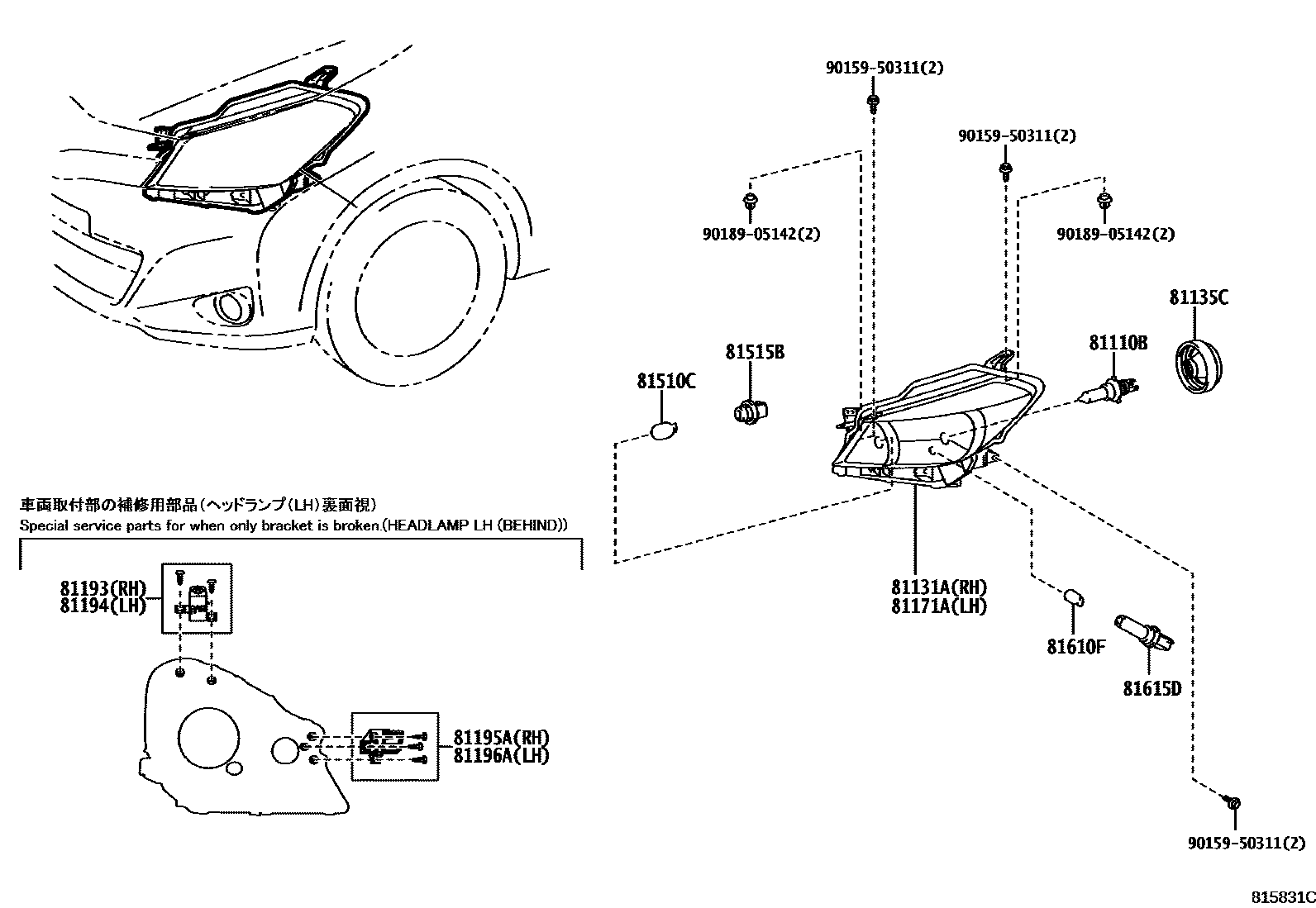

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
81131AUNIT, HEADLAMP, RH
HEAD LAMP AIMING-LH TRAFFIC SPEC
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81171AUNIT, HEADLAMP, LH
HEAD LAMP AIMING-LH TRAFFIC SPEC
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
9015950311
main90159-50311
9018905142
main90189-05142
16 parts on this diagram · 5 diagrams in section
