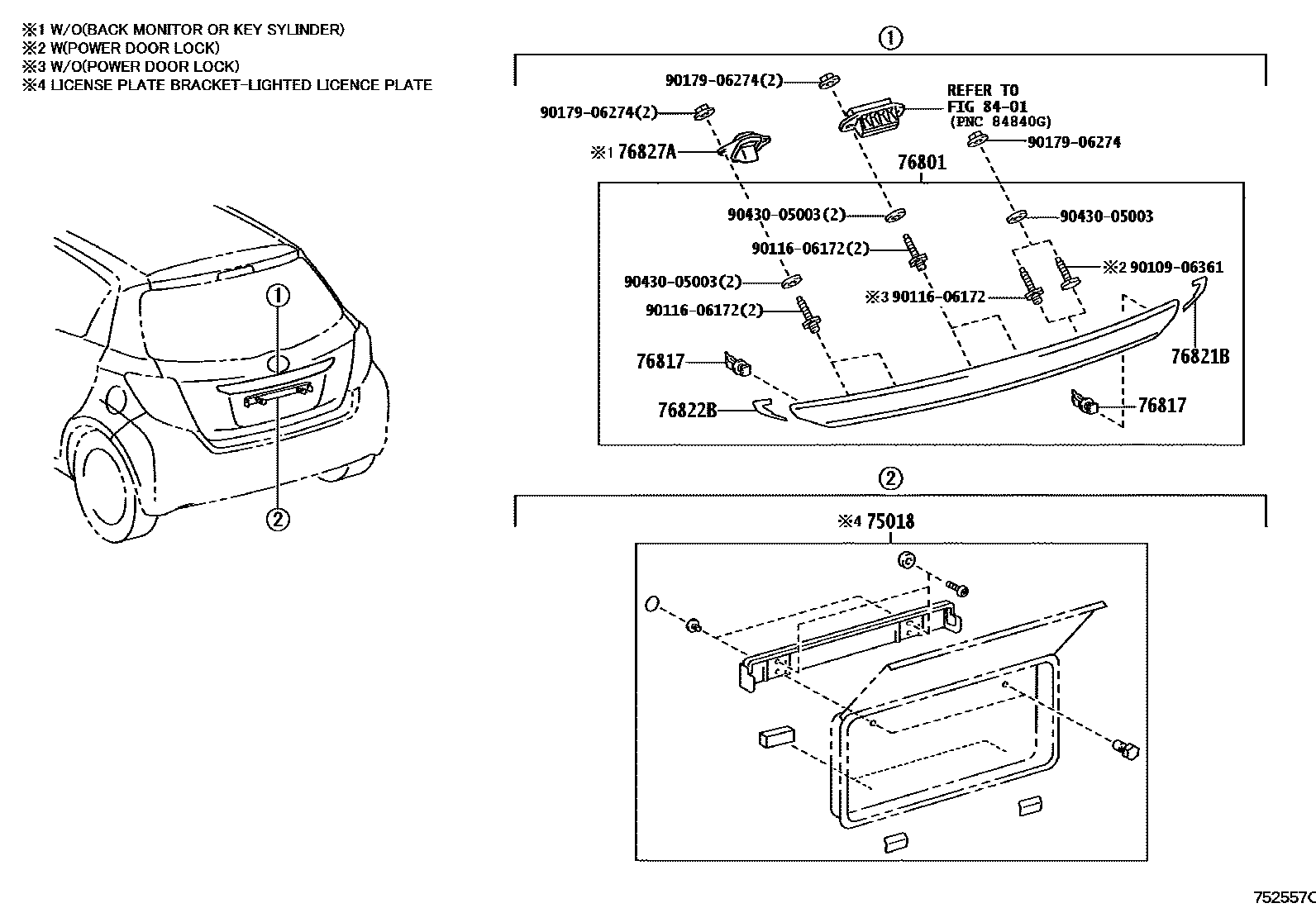

REAR MOULDING
75018FRAME SUB-ASSY, REAR LICENSE PLATE
LICENSE PLATE BRACKET-LIGHTED LICENSE PLATE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
main76801-52370supersedes 76801-52240iNCP131..ARL;NCP130..RHD..GEN; NCP131..LHD;NCP130..ARL,GCC;NCP130..LHD..GEN201108-201407
PLATED; PLATED,POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)
PAINT REQ.
PLATED,POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); PLATED,POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER); PLATED,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
main76821-52140supersedes 76821-52160iNCP13#..LHD; NCP130..ARL; NCP131..ARL;NCP130..RHD..GEN; NCP131..LHD;NCP130..ARL,GCC;NCP130..LHD..GEN201108-201407
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP); POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
main76822-52070supersedes 76822-52080iNCP13#..LHD; NCP130..ARL; NCP131..ARL;NCP130..RHD..GEN; NCP131..LHD;NCP130..ARL,GCC;NCP130..LHD..GEN201108-201407
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP); POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
76827ARETAINER, BACK DOOR GARNISH, NO.2
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
8401SWITCH & RELAY & COMPUTER
9010906361
main90109-06361
9011606172
main90116-06172
9017906274
main90179-06274
9043005003
main90430-05003
12 parts on this diagram · 3 diagrams in section
