BATTERY CARRIER

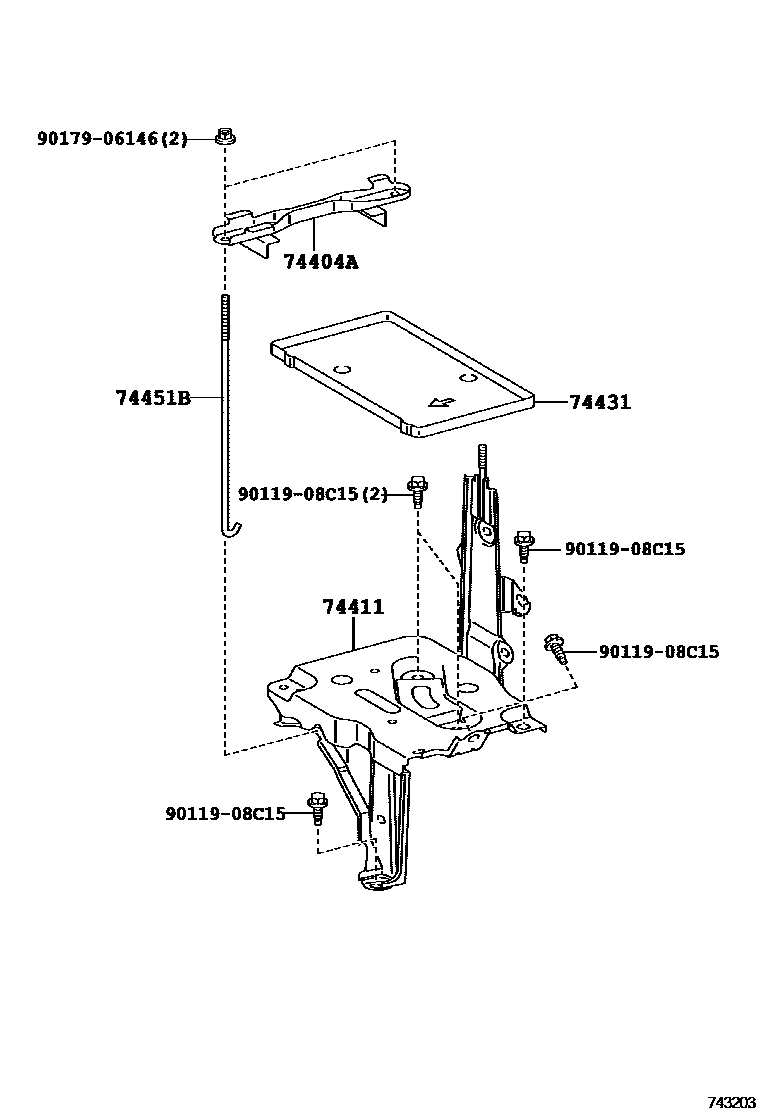

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-52110i201108-201407

74411CARRIER, BATTERY

main74410-52051i201108-201407

main74410-52060i201108-201407

74431TRAY, BATTERY

main74431-52101i201108-201407

74451BBOLT, BATTERY CLAMP

main74451-52070i201108-201203

main74451-52071i201204-201407

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
