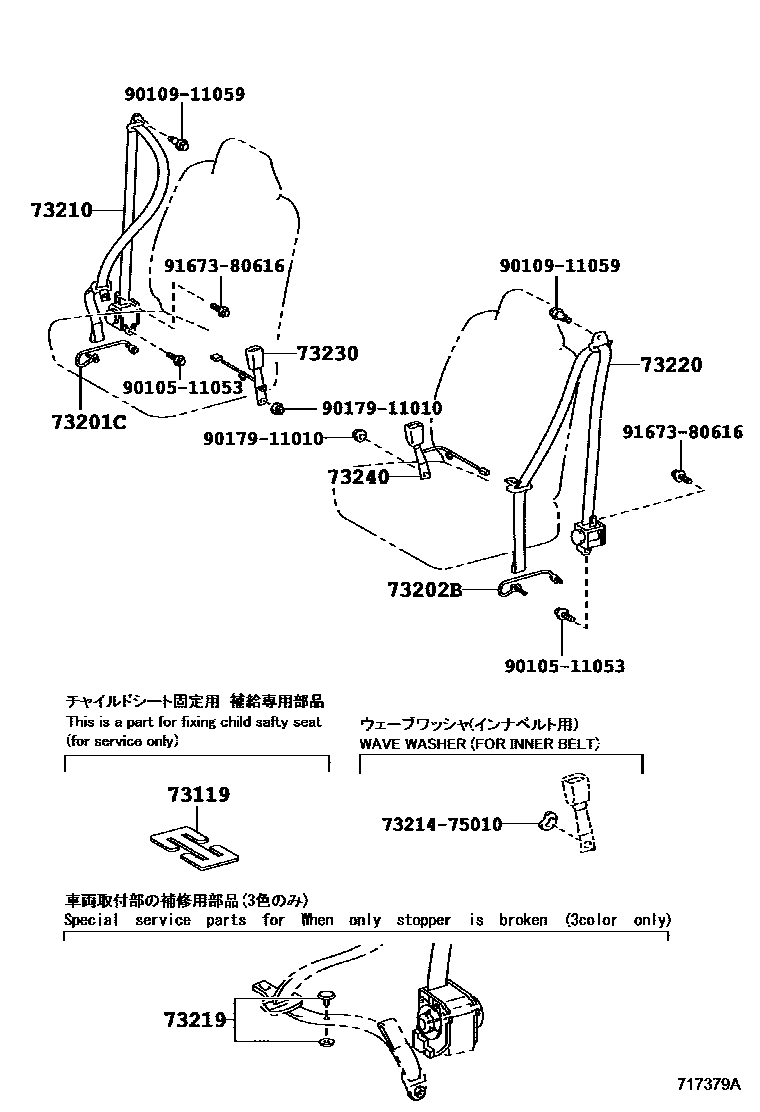

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1FRONT 0003 1REAR

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNCP13#201407-201701

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-52020-B0iNCP13#..3D201108-201407

DK.GRAY

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-52020-B0iNCP13#..3D201108-201407

DK.GRAY

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52740-C0iNCP13#..5D201108-201301

BLACK,TRIM1#

main73210-52741-C0iNCP13#201701

BLACK,TRIM2#

main73210-52780-C0iNCP13#..3D201108-201301

BLACK,TRIM1#

main73210-52781-C0iNCP13#..3D201302-201407

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP13#201108-201407

BLACK

main73219-33020iNCP13#201407-201701

GRAY

main73219-33030iNCP13#201407-201701

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52750-C0iNCP13#..5D201108-201301

BLACK,TRIM1#

main73220-52751-C0iNCP13#..5D201302-201407

BLACK,TRIM1#

main73220-52770-C0iNCP13#..3D201108-201301

BLACK,TRIM1#

main73220-52771-C0iNCP13#..3D201302-201407

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52550-C0supersedes 73230-52840-C0iNCP130..RHD; NCP131..ARL201108-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

main73230-52680-C0iNCP13#..GCC201108-201407

BLACK,TRIM1#

main73230-52830-C0iNCP13#..LHD..GEN201108-201407

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52550-C0supersedes 73230-52840-C0iNCP130..LHD; NCP131..LHD201108-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

main73230-52680-C0iNCP13#..ARL201108-201407

BLACK,TRIM1#

main73230-52830-C0iNCP130..RHD..GEN201108-201407

BLACK,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511053

main90105-11053

9010911059

main90109-11059

9017911010

main90179-11010

9167380616

main91673-80616

13 parts on this diagram · 3 diagrams in section
