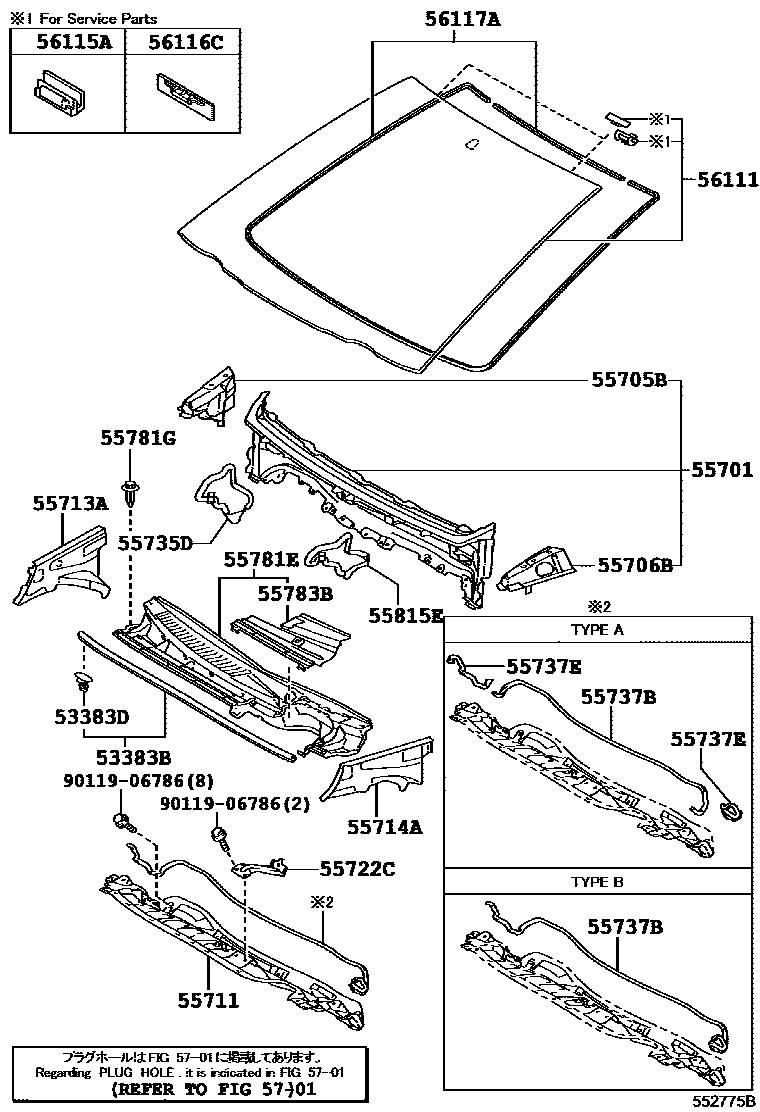

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1OUTSIDE MOULDING

53383BSEAL, HOOD TO COWL TOP

main53383-52130iNCP13#201108-201407

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6iNCP13#201108-201407

55701PANEL SUB-ASSY, COWL

main55700-52280iNCP13#201701

main55700-52290iNCP13#..LHD..GEN201108-201407

main55700-52340iNCP13#..GCC201108-201407

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52150iNCP13#201108-201407

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52150iNCP13#201407-201701

55711PANEL, COWL TOP, OUTER

main55701-52270iNCP13#..RHD201108-201407

main55701-52280iNCP13#..LHD201108-201407

main55701-52370iNCP13#201701

55713APANEL, COWL TOP SIDE, RH

main55713-52130iNCP13#201407-201701

55714APANEL, COWL TOP SIDE, LH

main55714-52130iNCP13#201407-201701

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52110iNCP13#201407-201701

main55722-52120iNCP13#..LHD201108-201407

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52090iNCP13#201701

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP13#201108-201407

TYPE A:REFER ILLUST.

main55737-74010iNCP13#201407-201701

TYPE B:REFER ILLUST.

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52050×2iNCP13#201108-201407

TYPE A:REFER ILLUST.

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52181iNCP13#..RHD201108-201209

main55708-52241iNCP13#..LHD201108-201407

main55708-52350iNCP13#..RHD201210-201407

main55708-52370iNCP13#201701

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07190-C0×2iNCP13#201701

BLACK

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52280iNCP13#..RHD201108-201407

main55783-52290iNCP13#..LHD201108-201407

main55783-52340iNCP13#201407-201701

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52040iNCP13#201108-201407

main55815-52070iNCP13#201407-201701

56111GLASS, WINDSHIELD

main56101-52550iNCP13#..GCC201108-201407

main56101-52610iNCP13#..ARL,GEN201108-201407

main56101-52C70iNCP13#201701

main56101-52B60iNCP13#201701-201806

PRE-COLLISION SYSTEM-WITH

main56101-52E60iNCP13#201806

PRE-COLLISION SYSTEM-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNCP13#201108-201407

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNCP13#201108-201407

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNCP13#201108-201407

*D,L=3186 OR 606

5701HOLE PLUG

→ Go to FIG 57-01

9011906786

main90119-06786

22 parts on this diagram · 3 diagrams in section
