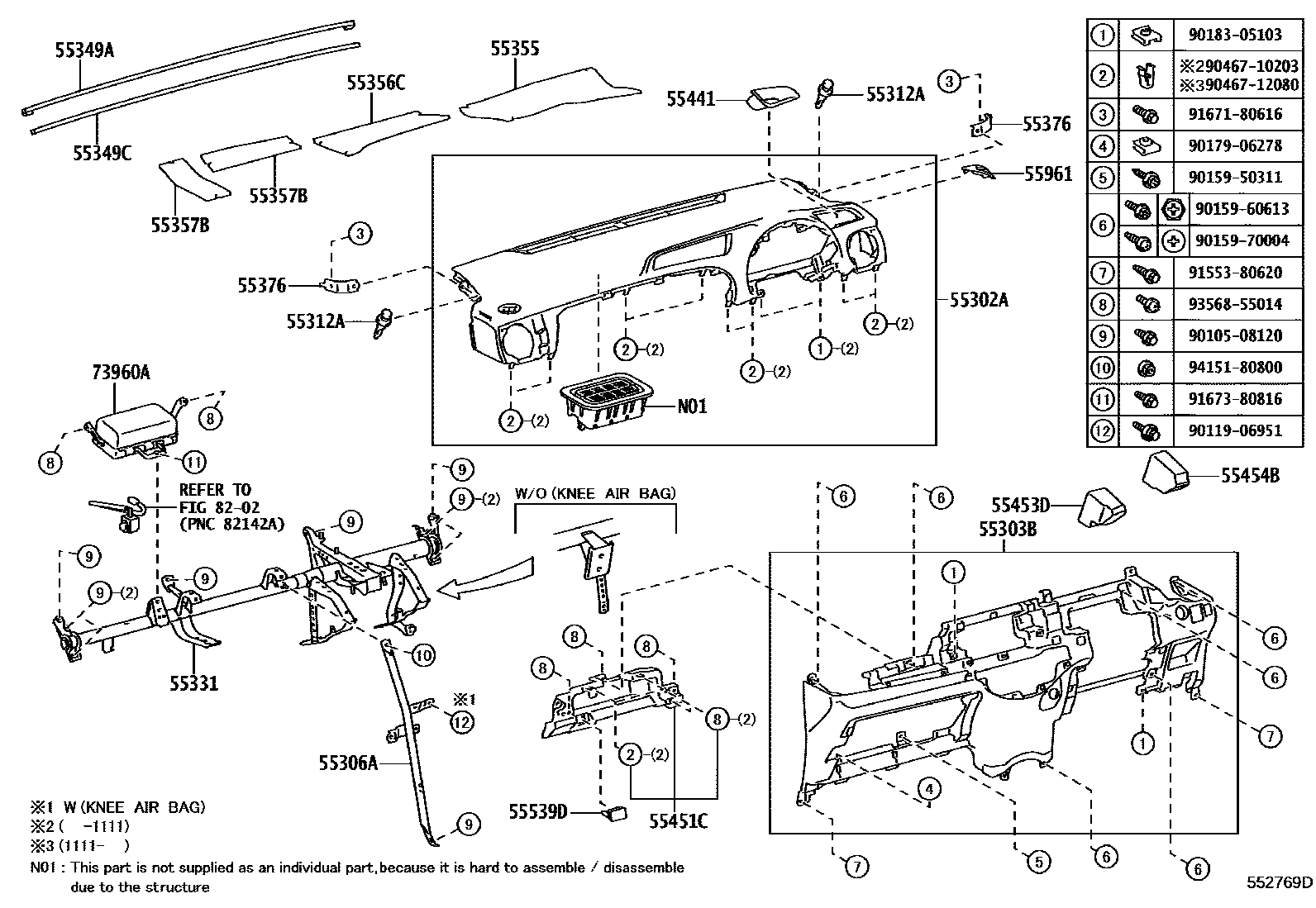

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52130-C0201108-201407

main55302-52140-C0201108-201407

main55302-52190-C0201407-201701

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52220-C0201108-201407

main55303-52240-C0201108-201407

main55303-52320-C0201407-201701

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52160201108-201407

main55306-52180201108-201407

main55306-52260201407-201701

main55306-52370201701-201810

main55306-52371201810

55312ACLIP, INSTRUMENT PANEL

main52161-16010201108-201701

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52600201108-201407

main55330-52620201108-201407

main55330-52740201407-201712

main55330-52741201801

55349ACUSHION, INSTRUMENT PANEL

main55349-52140201108-201212

main55349-52141201301-201407

main55349-52160201108-201212

main55349-52161201301-201407

main55349-52270201407-201701

55349CCUSHION, INSTRUMENT PANEL

main55349-52150201108-201212

main55349-52151201301-201407

main55349-52170201108-201212

main55349-52171201301-201701

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52180201108-201402

main55355-52181201403-201407

main55355-52270201407-201701

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52190201108-201402

main55356-52191201403-201407

main55356-52250201407-201701

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52160201108-201402

main55357-52161201403-201407

main55357-52200201407-201701

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110201108-201701

55441BOX, INSTRUMENT PANEL

main55441-52160-C0201108-201407

main55441-52170-C0201108-201407

main55441-52210-C0201407-201701

main55441-52220-C0201407-201701

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52180-C0201108-201407

main55451-52200-C0201108-201407

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52120201108-201407

main55453-52130201108-201407

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52110201108-201407

main55454-52120201108-201407

55539COVER, SPARE SWITCH HOLE

main55539-52070-C0201108-202001

55539DCOVER, SPARE SWITCH HOLE

main55539-52070-C0201108-201407

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-52010-C0201108-201407

main55961-52020-C0201108-201407

main55961-52050-C0201407-201701

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52150201108-201301

main73960-52151201302-201804

main73960-52152201805

main73960-52370201804-201805

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9011906951

main90119-06951

9015950311

main90159-50311

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046710203

main90467-10203

9046712080

main90467-12080

9155380620

main91553-80620

9167180616

main91671-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 12 diagrams in section
