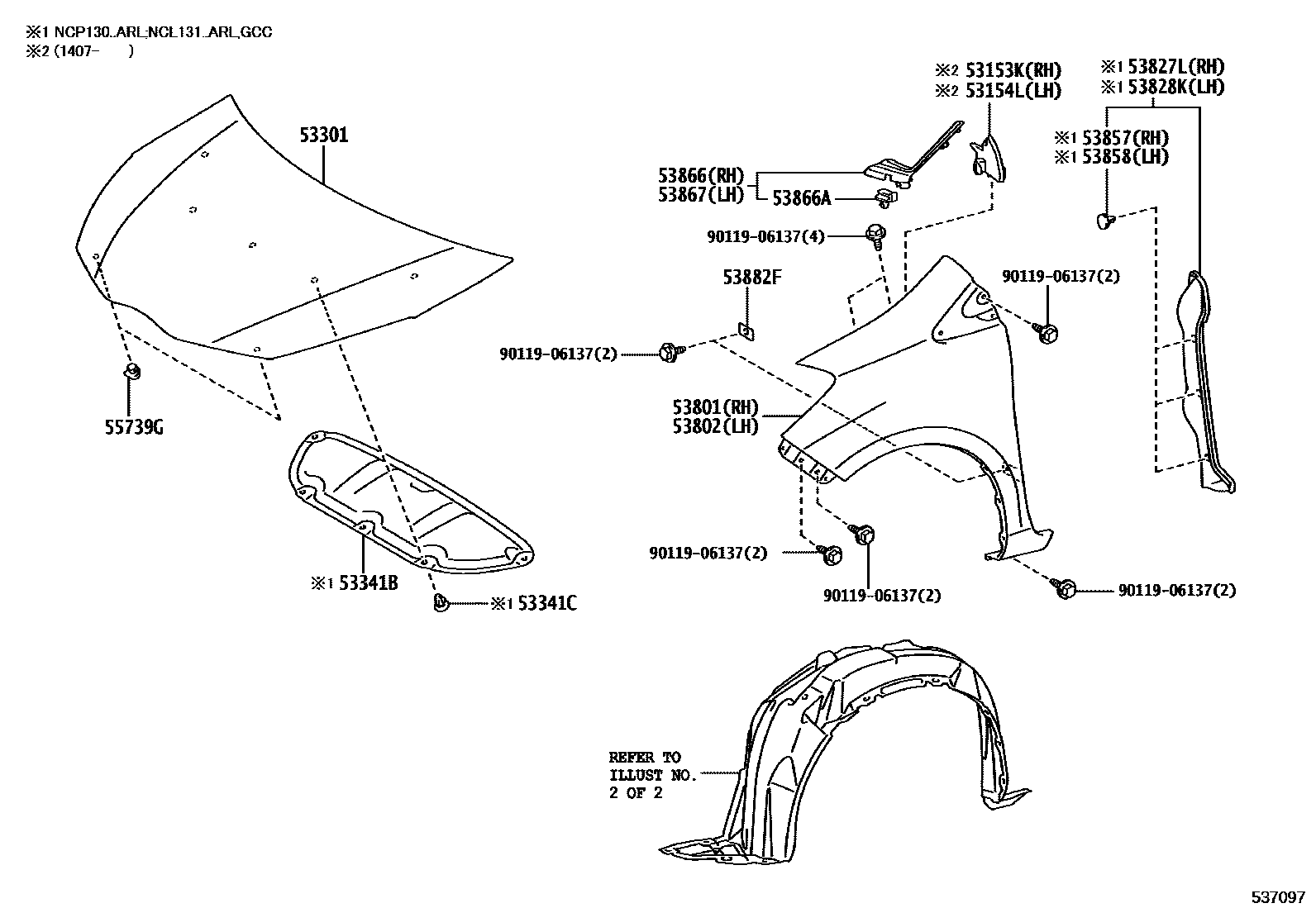

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52030iNCP13#201701

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52030iNCP13#201407-201701

53301HOOD SUB-ASSY

main53301-52310iNCP13#201108-201407

53341BINSULATOR, HOOD

main53341-52180iNCP13#201407-201701

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iNCP130..ARL;NCP131..ARL,GCC201108-201407

53801FENDER SUB-ASSY, FRONT RH

main53811-52370iNCP13#201108-201407

main53811-52550iNCP13#201701

main53811-52380iNCP131201407-201606

S PACKAGE

main53811-52560iNCP131201607-201701

S PACKAGE

53802FENDER SUB-ASSY, FRONT LH

main53812-52340iNCP13#201407-201606

main53812-52550iNCP13#201607-201701

main53812-52350iNCP131201407-201606

S PACKAGE

main53812-52560iNCP131201607-201701

S PACKAGE

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52150iNCP130..ARL;NCP131..ARL,GCC201108-201407

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52160iNCP130..ARL;NCP131..ARL,GCC201108-201407

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×3iNCP13#201407-201701

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×3iNCP13#201701

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52090iNCP13#201108-201407

main53866-52140iNCP13#201407-201701

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-52020×2iNCP13#201701

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52090iNCP13#201108-201407

main53867-52160iNCP13#201407-201701

53882FSEAL, FRONT FENDER

main53882-16030×2iNCP13#201108-201407

55739GSTOPPER, HOOD

main55738-52060×2iNCP13#201108-201407

9011906137

main90119-06137

17 parts on this diagram · 4 diagrams in section
