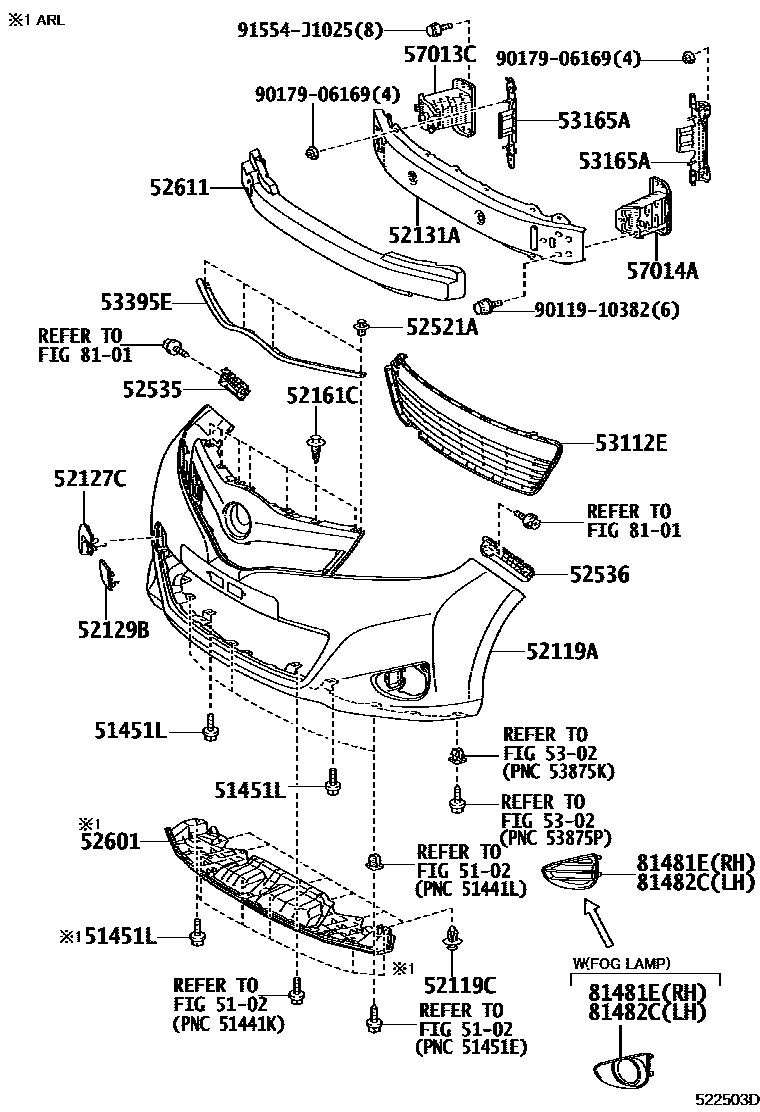

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
51451LBOLT, NO.1
FRONT FOG LAMP-WITH
S PACKAGE
S PACKAGE&FRONT FOG LAMP-WITH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52127CCOVER, FRONT BUMPER HOLE
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52521ACLIP(FOR FRONT BUMPER RETAINER)
BLACK
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52611ABSORBER, FRONT BUMPER ENERGY
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
RH
LH
53395ESEAL, HOOD TO FRONT END PANEL
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9011910382
main90119-10382
9017906169
main90179-06169
91554J1025
main91554-J1025
25 parts on this diagram · 5 diagrams in section
