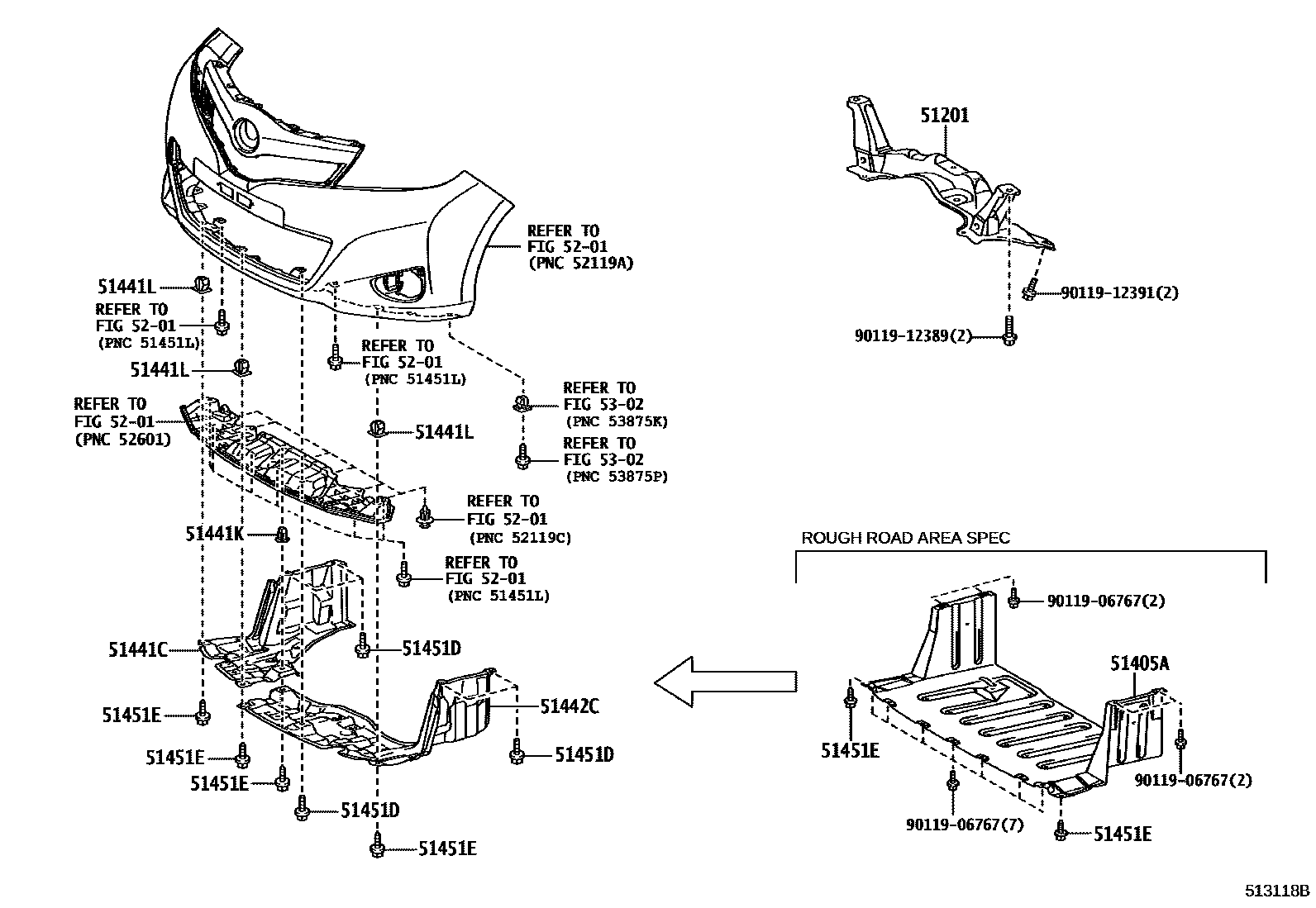

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52083iNCP13#201108-201112

main51201-52084iNCP13#201201-201204

main51201-52085iNCP13#201205-201206

main51201-52086iNCP13#201206-201210

main51201-52087iNCP13#201211-201701

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

51441CCOVER, ENGINE UNDER, RH

main51441-52180iNCP13#201108-201404

main51441-52330iNCP13#201404-201701

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076iNCP13#201108-202001

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06237iNCP13#..GEN201108-201407

ROUGH ROAD AREA SPEC-S AREA W/ROAD INTERFER

main90189-06237iNCP13#201407-202001

51442CCOVER, ENGINE UNDER, LH

main51442-52090iNCP13#201108-201404

main51442-52160iNCP13#201404-201701

51451DSCREW, NO.1

main90119-06767iNCP13#201108-201407

ROUGH ROAD AREA SPEC-S AREA W/ROAD INTERFER

main90119-06767iNCP13#201407-201701

51451ESCREW, NO.2

main90159-60383iNCP13#..GEN201108-201407

ROUGH ROAD AREA SPEC-S AREA W/ROAD INTERFER

main90159-60383iNCP13#201407-202001

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

13 parts on this diagram · 1 diagram in section
