FRONT SPRING & SHOCK ABSORBER

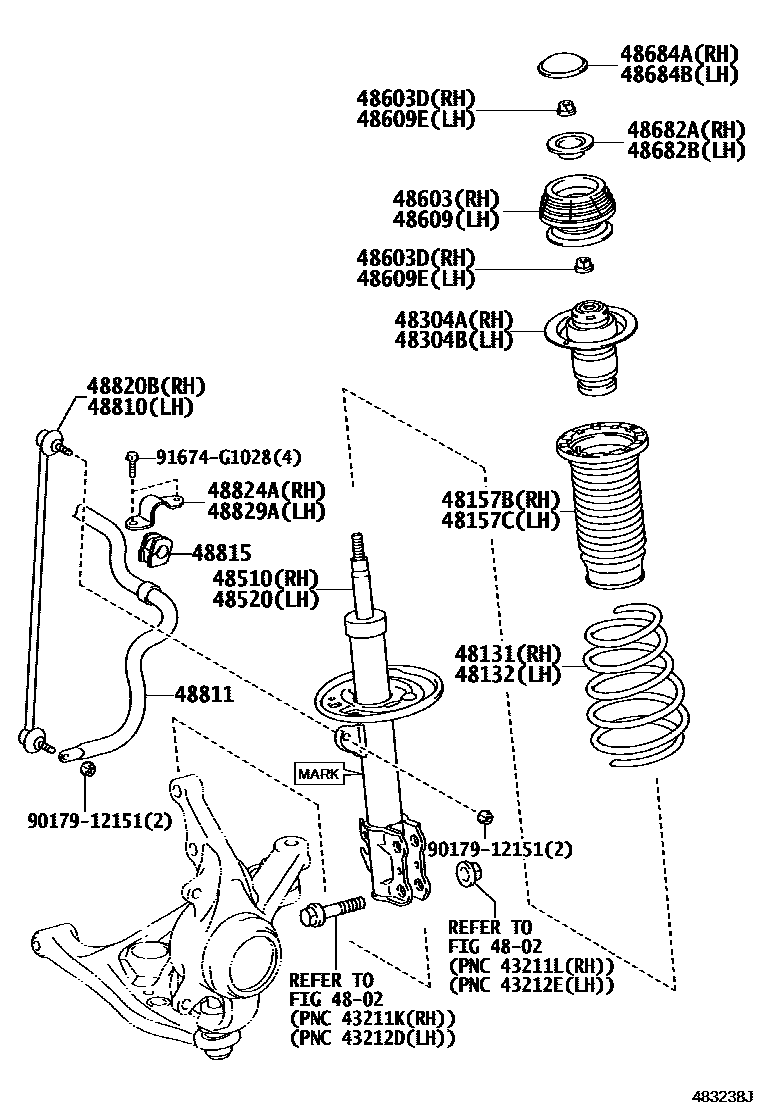

Parts diagram
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02
48131SPRING, FRONT COIL, RH
main48131-52F10i201108-201402
main48131-52F11i201403-201407
main48131-52F90i201108-201403
main48131-52L00i201108-201407
main48131-52M50i201404-201605
main48131-52M51i201606-202001
main48131-52M60i201407-201605
TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
main48131-52M60i201407-201605
TIRE & DISC WHEEL-175/65R15 5.5J STEEL
main48131-52M61i201606-202001
TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
main48131-52M61i201606-202001
TIRE & DISC WHEEL-175/65R15 5.5J STEEL
48132SPRING, FRONT COIL, LH
main48131-52F10i201108-201402
main48131-52F11i201403-201407
main48131-52F90i201108-201403
main48131-52L00i201108-201407
main48131-52M50i201404-201605
main48131-52M51i201606-202001
main48131-52M60i201407-201605
TIRE & DISC WHEEL-175/65R15 5.5J STEEL
main48131-52M60i201407-201605
TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
main48131-52M61i201606-202001
TIRE & DISC WHEEL-175/65R15 5.5J STEEL
main48131-52M61i201606-202001
TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-52030i201108-201401
main48157-52040i201402-201407
main48157-52040i201407-201605
PNC 48158B=TYPE A
main48157-52050i201605-201701
PNC 48158B=TYPE B
main48157-52050i201701-202001
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-52030i201108-201401
main48157-52040i201402-201407
main48157-52040i201407-201605
PNC 48158C=TYPE A
main48157-52050i201605-201701
PNC 48158C=TYPE B
main48157-52050i201701-202001
48304ASEAT SUB-ASSY, BUMPER, RH
main48304-52040i201108-201406
main48304-52050i201108-201206
main48304-52051i201207-201407
main48304-52111i201407-202001
48304BSEAT SUB-ASSY, BUMPER, LH
main48304-52040i201108-201406
main48304-52050i201108-201206
main48304-52051i201207-201407
main48304-52111i201407-202001
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-52G10i201108-201401
MARK 48510-52G10
main48510-52G11i201402-201407
MARK 48510-52G11
main48510-52J80i201407-201605
MARK 48510-52J80
main48510-52N10i201701-201809
MARK 48510-52N10
main48510-52Q20i201605-201701
MARK 48510-52Q20
main48510-52S20i201810-202001
MARK 48510-52S20
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-52510i201108-201401
MARK 48520-52510
main48520-52511i201402-201407
MARK 48520-52511
main48520-52680i201407-201605
MARK 48520-52680
main48520-52B10i201701-201809
MARK 48520-52B10
main48520-52D20i201605-201701
MARK 48520-52D20
main48520-52F20i201810-202001
MARK 48520-52F20
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-52100i201108-202001
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90179-12145i201108-202001
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-52100i201108-202001
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-12145i201108-202001
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-52040i201108-202001
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-52040i201108-202001
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-52020i201108-202001
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-52020i201108-202001
48810LINK ASSY, FRONT STABILIZER, LH
main48820-52030i201108-201701
48811BAR, STABILIZER, FRONT
main48811-52240i201108-201701
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-52090i201108-201701
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-52030i201108-201701
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-52060i201108-201701
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-52060i201108-201701
9017912151
main90179-12151
91674G1028
main91674-G1028

25 parts on this diagram · 2 diagrams in section
