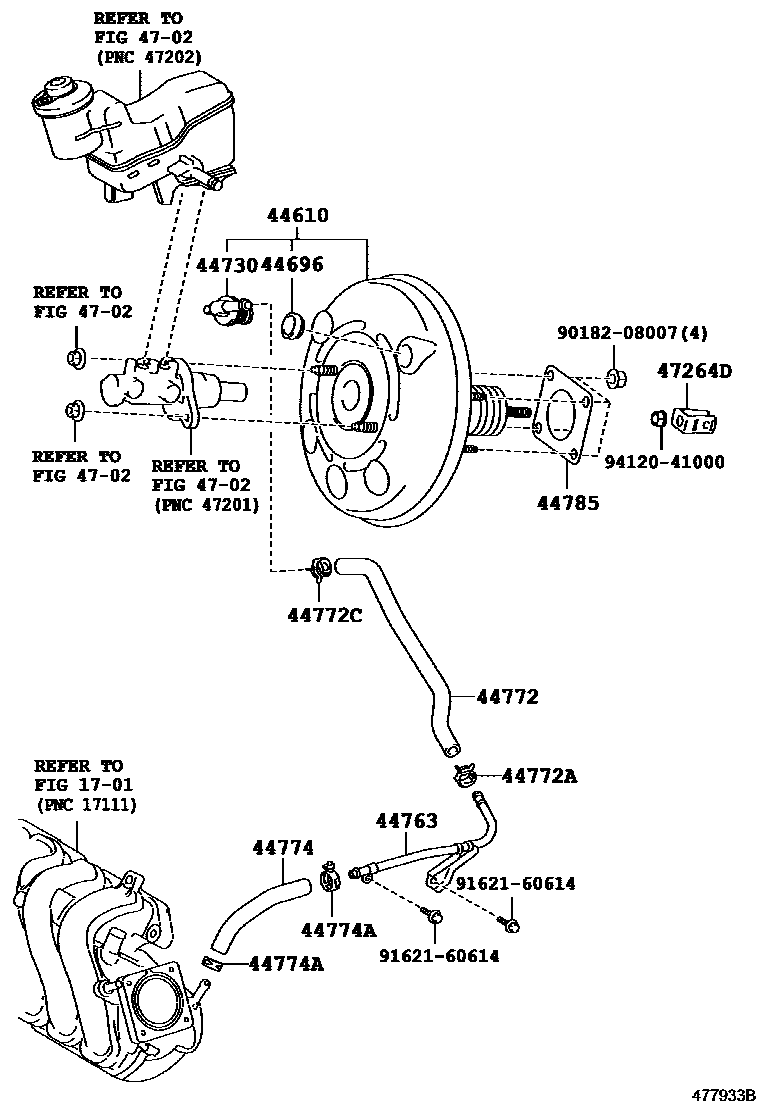

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-52A60iNCP130..RHD..GEN201108-201407

main44610-52A90iNCP13#..ARL201108-201407

main44610-52B60iNCP13#..LHD201108-201407

main44610-52F50iNCP13#201407-201701

main44610-52E50iNCP130..LHD..GEN201108-201407

ABS-WITHOUT

44696GROMMET, CHECK VALVE

main90480-24439iNCP13#201108-201407

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNCP13#..RHD201108-201407

main44730-60070iNCP13#..LHD201108-201407

44763TUBE, BOOSTER VACUUM

main44763-52080iNCP13#201108-201407

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52170iNCP13#..RHD201108-201407

main44772-52180iNCP13#..LHD201108-201407

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iNCP13#201108-201407

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iNCP13#201108-201407

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP13#201108-201407

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNCP13#201108-201407

main96136-41801×2iNCP13#201502-201701

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP13#201108-201407

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP13#201108-201407

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

16 parts on this diagram · 2 diagrams in section
