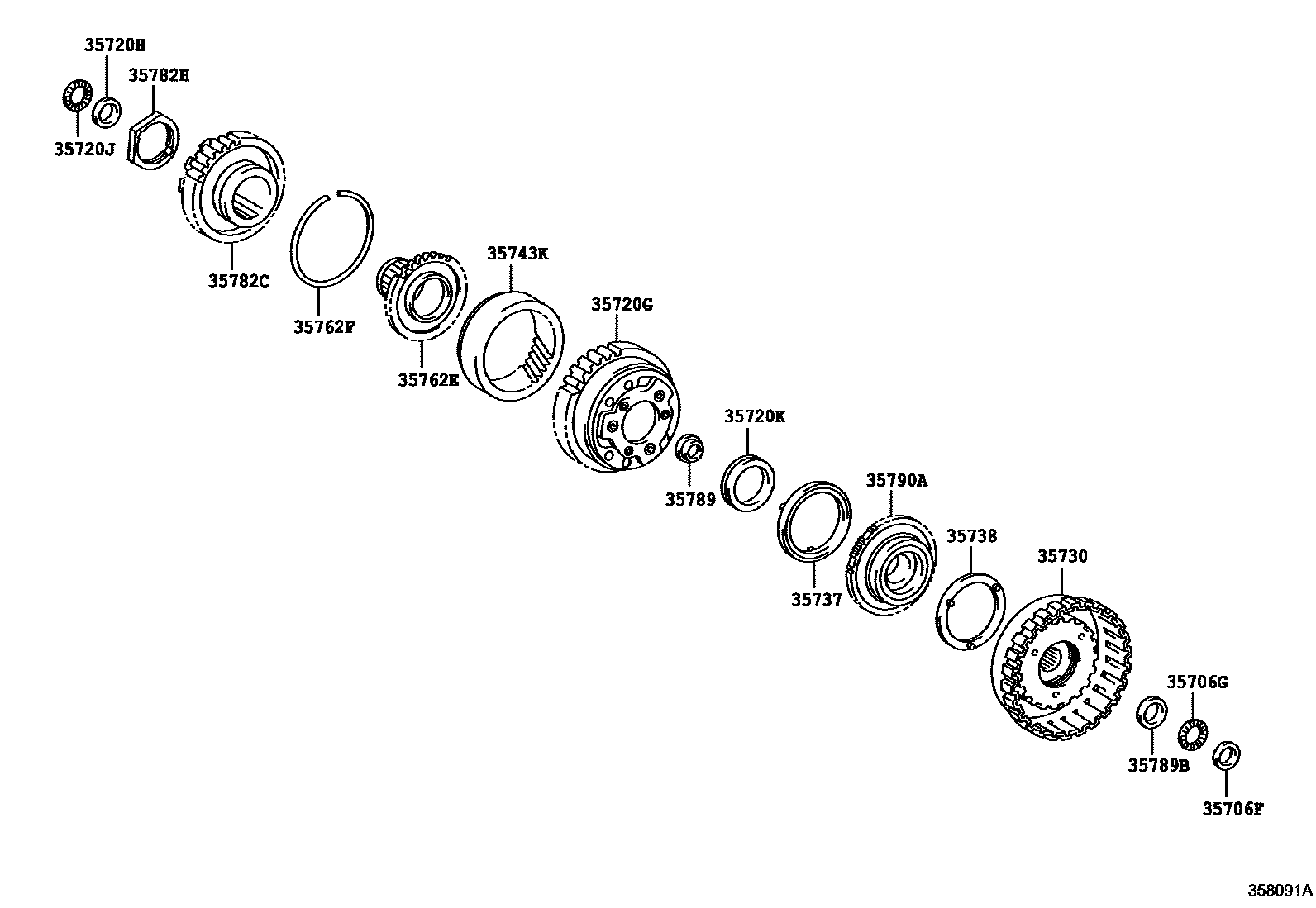

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)
35706GBEARING, THRUST (FOR SUN GEAR REAR)
35720GGEAR ASSY, PLANETARY
35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730GEAR ASSY, REAR PLANETARY SUN
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743KGEAR, PLANETARY RING
35762EFLANGE, PLANETARY RING GEAR
35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)
35782CGEAR, COUNTER DRIVE
35782HNUT(FOR COUNTER DRIVE GEAR)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35790ACLUTCH ASSY, 1 WAY
17 parts on this diagram · 2 diagrams in section
