TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

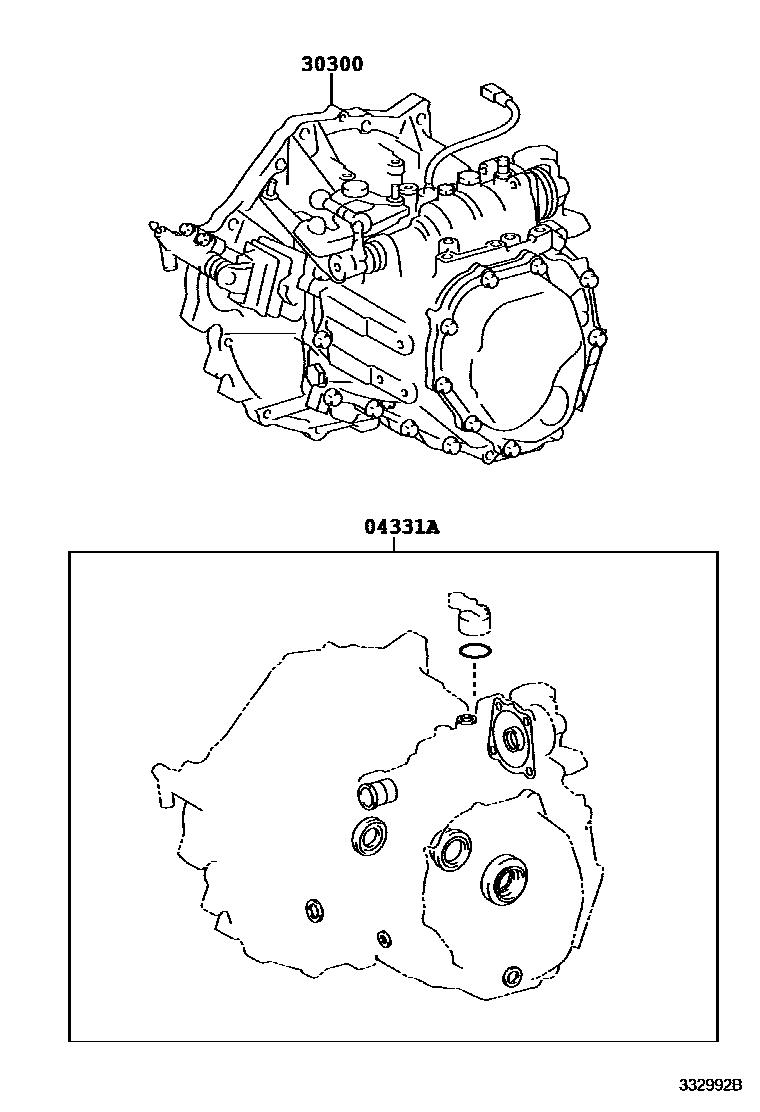

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12810i201108-201904

main04331-12860i201904

30300TRANSAXLE ASSY, MANUAL

main30300-52720i201108-201311

C54

main30300-52721i201311-201701

C54

main30300-52730i201108-201311

C54

main30300-52731i201311-201701

C54

2 parts on this diagram · 1 diagram in section
