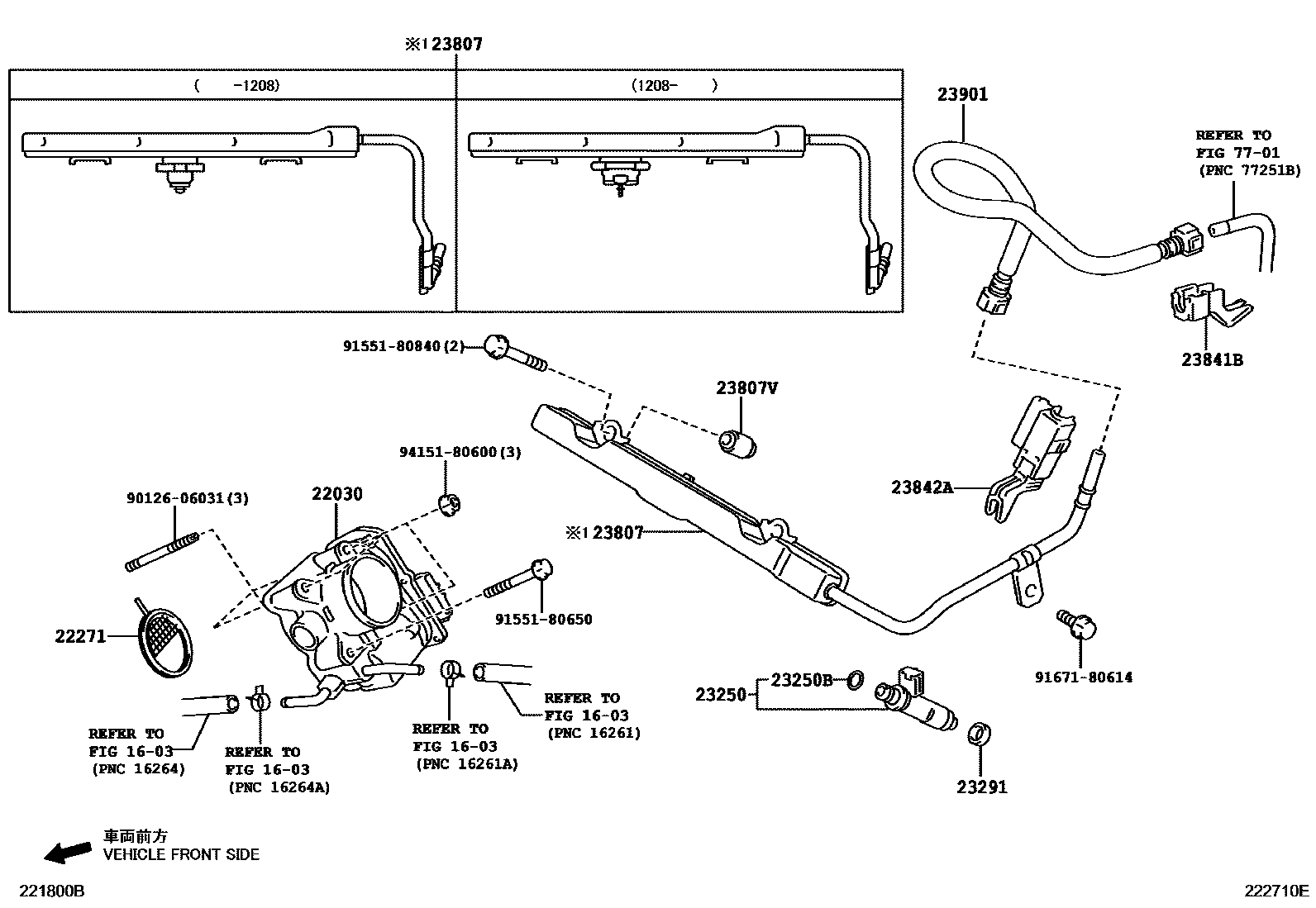

FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE,2NZFE..NCP13#201108-201407

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE,2NZFE..NCP13#201108-201407

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE,2NZFE..NCP13#201108-201407

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFE,2NZFE..NCP13#201108-201407

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE,2NZFE..NCP13#201108-201407

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21051i1NZFE,2NZFE..NCP13#201108-201208

main23807-21090i1NZFE,2NZFE..NCP13#201208-201407

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE,2NZFE..NCP13#201108-201407

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE,2NZFE..NCP13#201108-201407

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE,2NZFE..NCP13#201108-201210

main23841-37090i1NZFE,2NZFE..NCP13#201211-201407

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE,2NZFE..NCP13#201108-201407

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
