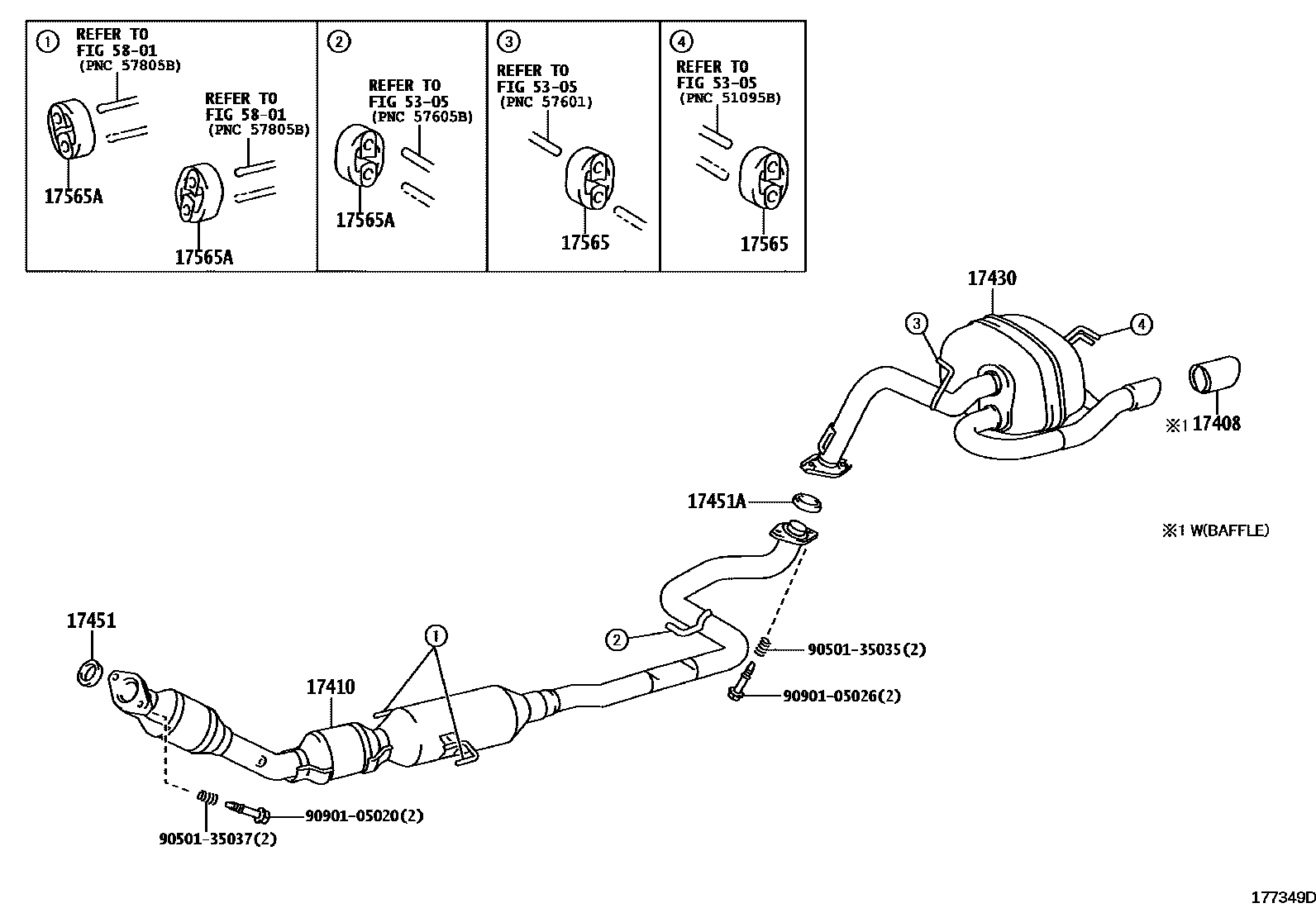

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-21030i1NZFE..NCP131..5D..GEN;1NZFE..NCP131..3D..5F..ARL201108-201407

S PACKAGE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21B10i1NZFE,2NZFE..NCP13#..ARL201108-201407

main17410-21B20i1NZFE,2NZFE..NCP13#..LHD201108-201407

main17410-21B30i2NZFE..NCP130..RHD..GEN201108-201407

main17410-21D90i1NZFE..NCP131201609-201701

main17410-21E00i2NZFE..NCP130201701

17430PIPE ASSY, EXHAUST, TAIL

main17430-21831i1NZFE,2NZFE..NCP13#201407-201701

main17430-21791i1NZFE..NCP131..5D..GEN;1NZFE..NCP131..3D..5F..ARL201108-201208

S PACKAGE

main17430-21792i1NZFE..NCP131201407-201701

S PACKAGE

17451GASKET, EXHAUST PIPE

main17451-21070i1NZFE,2NZFE..NCP13#201108-201407

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i1NZFE,2NZFE..NCP13#201108-201407

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-47010×2i1NZFE,2NZFE..NCP13#201108-201407

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010×3i1NZFE,2NZFE..NCP13#201108-201407

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 1 diagram in section
