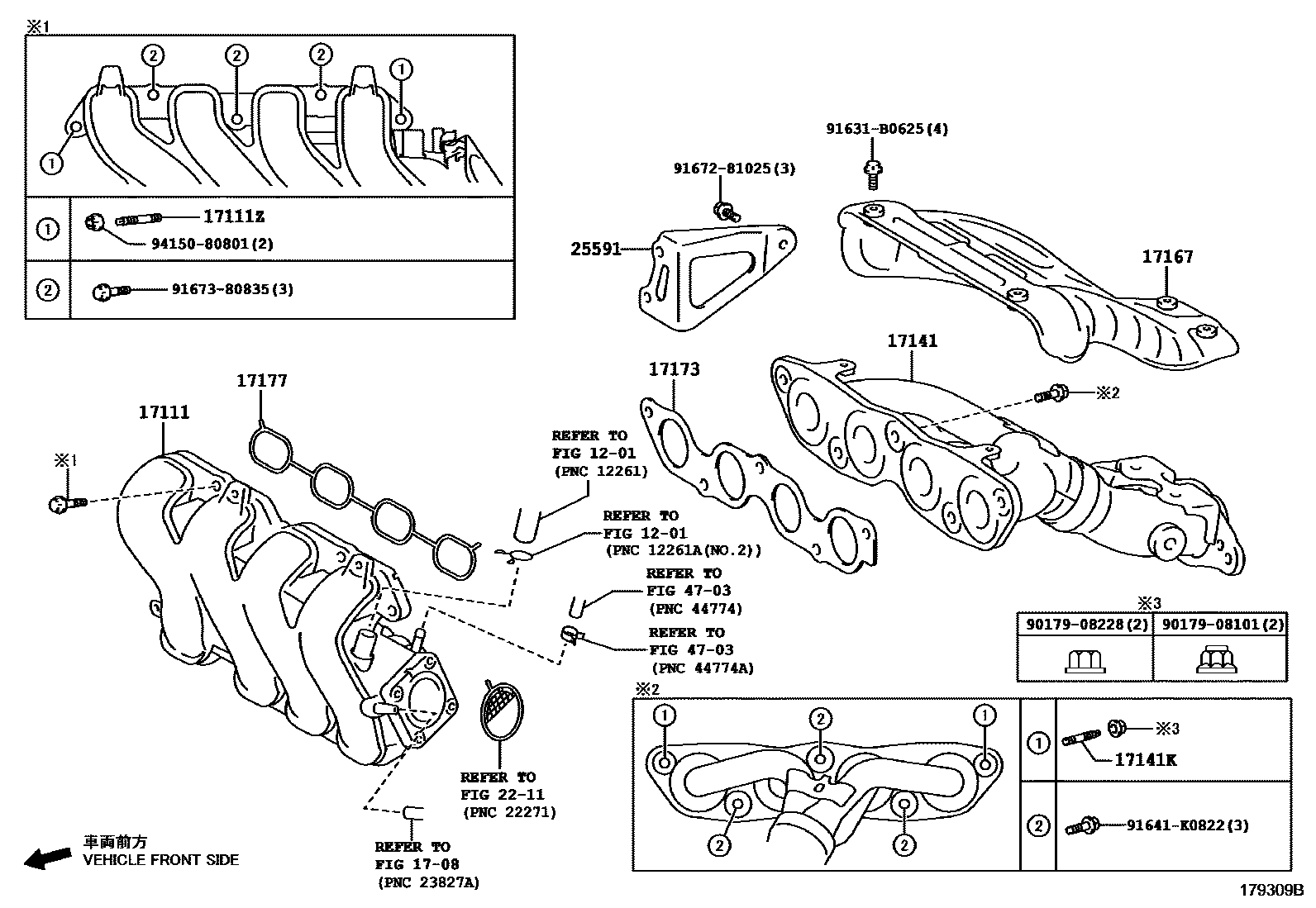

MANIFOLD

0001 1 0002 1 0003 1 0004 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17101-21080i1NZFE..NCP131201407-201701

main17101-21090i2NZFE..NCP130201108-201407

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFE,2NZFE..NCP13#201701

17141MANIFOLD, EXHAUST

main17141-21130i1NZFE..NCP131201108-201407

main17141-21140i2NZFE..NCP130201108-201407

main17141-21210i1NZFE..NCP131201609-201701

main17141-21220i2NZFE..NCP130201701

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×2i1NZFE,2NZFE..NCP13#201701

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NCP131201108-201407

main17167-21130i2NZFE..NCP130201407-201701

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE,2NZFE..NCP13#201701

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZFE..NCP131201108-201207

main17177-21030i1NZFE..NCP131201207-201407

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE,2NZFE..NCP13#201108-201407

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9017908101

main90179-08101

9017908228

main90179-08228

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167380835

main91673-80835

9415080801

main94150-80801

19 parts on this diagram · 4 diagrams in section
