VENTILATION HOSE

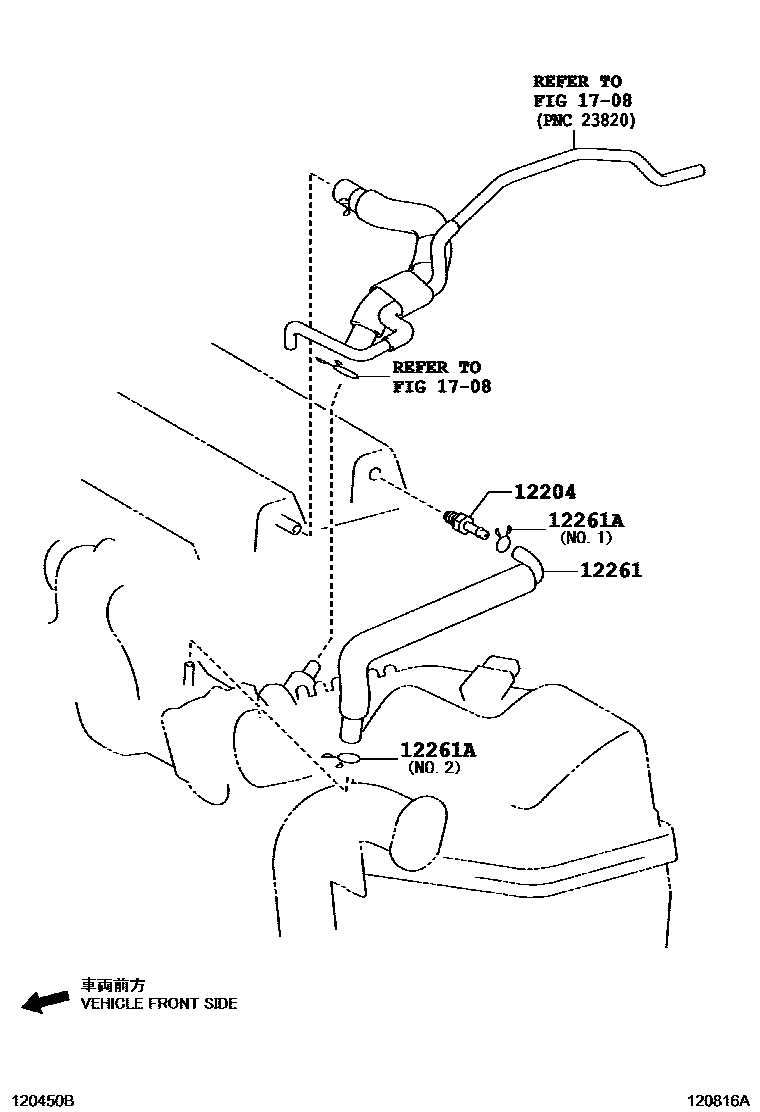

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-21012i201108-201304

main12204-21013i201304-201407

12261HOSE, VENTILATION

main12261-21030i201701

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i201108-201407

NO.2

main90467-15120i201108-201407

NO.1

1708VACUUM PIPING

→ Go to FIG 17-08
