ENGINE OVERHAUL GASKET KIT

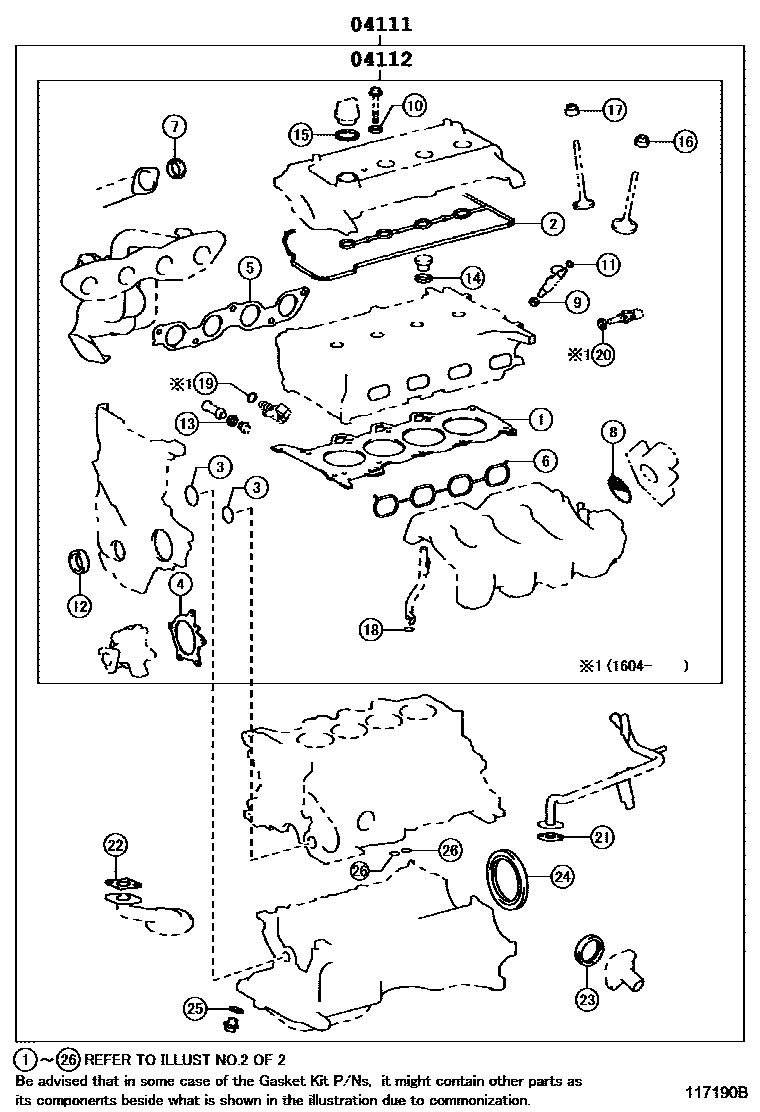

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21234i201108-201110

main04111-21235i201110-201111

main04111-21236i201111-201201

main04111-21237i201201-201204

main04111-21238i201204-201207

main04111-21239i201302-201311

main04111-21360i201207-201311

main04111-21361i201311-201402

main04111-21362i201407-201604

main04111-21363i201604-201701

main04111-21370i201311-201402

main04111-21371i201402-201407

main04111-21372i201701

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21233i201108-201110

main04112-21234i201110-201111

main04112-21235i201111-201204

main04112-21236i201204-201207

main04112-21237i201302-201311

main04112-21238i201311-201402

main04112-21239i201407-201604

main04112-21350i201207-201311

main04112-21351i201311-201402

main04112-21352i201402-201407

main04112-21353i201604-201701

main04112-21370i201604-201701

2 parts on this diagram · 2 diagrams in section
