SHORT BLOCK ASSEMBLY

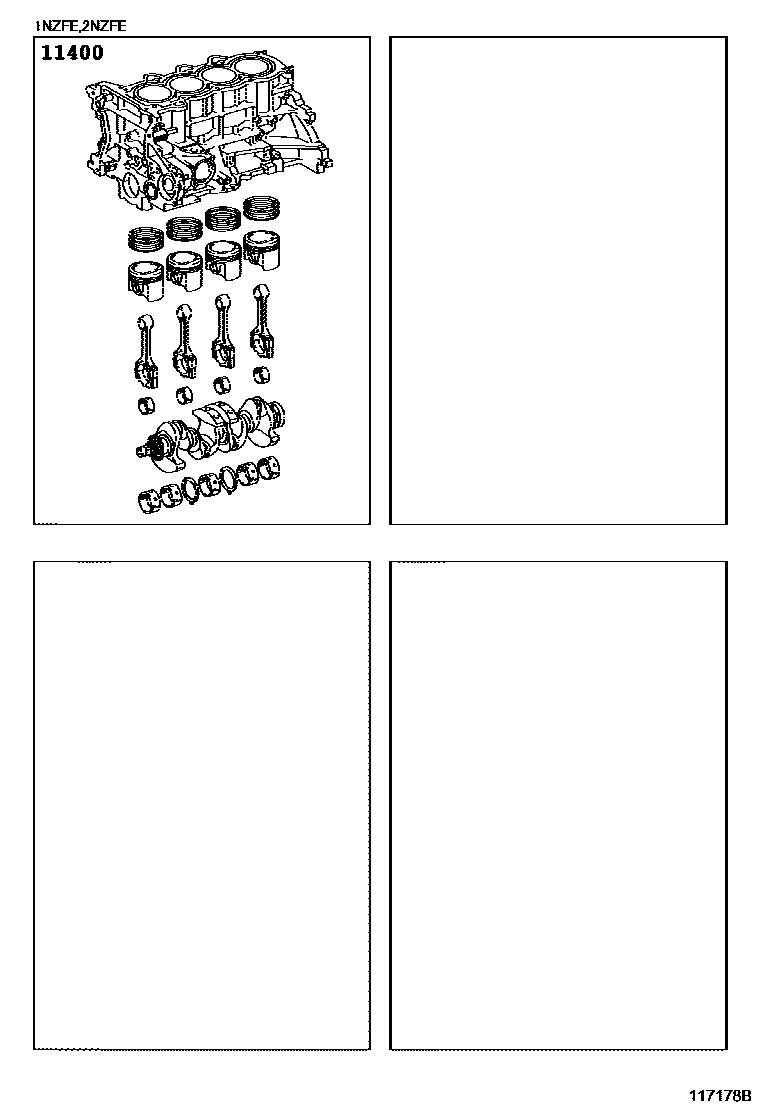

Parts diagram

11400BLOCK ASSY, SHORT

main11400-21150i201407-201506

main11400-21220i201108-201204

main11400-21411i201407-201701

main11400-21470i201701-202001

1 parts on this diagram · 1 diagram in section
