STANDARD TOOL

09110JACK ASSY

main09110-52010iNCP13#..ARL201108-201810

main09110-52020iNCP13#201810

main09111-52060iNCP13#..GCC,GEN201108-201407

09113HANDLE, JACK

main09113-20050iNCP13#201112-201809

main09113-52040iNCP13#201108-201111

sub09113-20050

main09113-52060iNCP13#201810

09120BAG, TOOL

main09120-37030iNCP13#201407-201701

main09120-37030iNCP13#..ARL201108-201407

TYPE A:REFER ILLUST.

main09120-52050iNCP13#..GCC,GEN201108-201407

TYPE B:REFER ILLUST.

09130PLIERS

main99913-11500iNCP13#..GCC,GEN201108-201407

09135DRIVER, SCREW

main99915-10700iNCP13#..GCC,GEN201108-201407

09141SPANNER

main99914-10810iNCP13#..GCC,GEN201108-201407

8 X 10

main99914-11214iNCP13#..GCC,GEN201108-201407

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iNCP13#201108-201701

09155WRENCH, SPARK PLUG

main09155-74010iNCP13#..GCC,GEN201108-201407

51960HOOK ASSY, FRONT

main51960-47020iNCP13#201108-201509

main51960-52090iNCP13#201510-201701

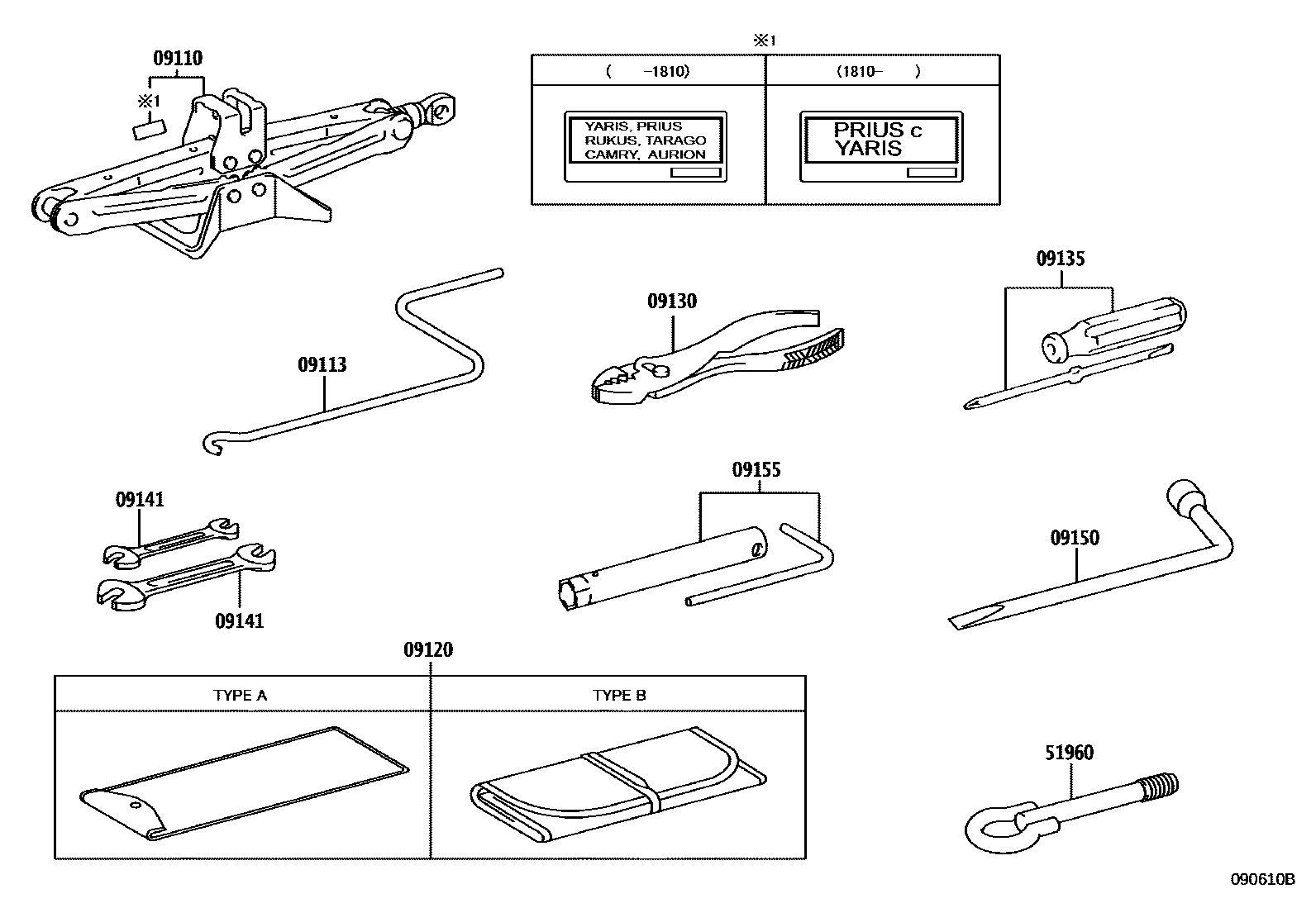

9 parts on this diagram · 1 diagram in section
