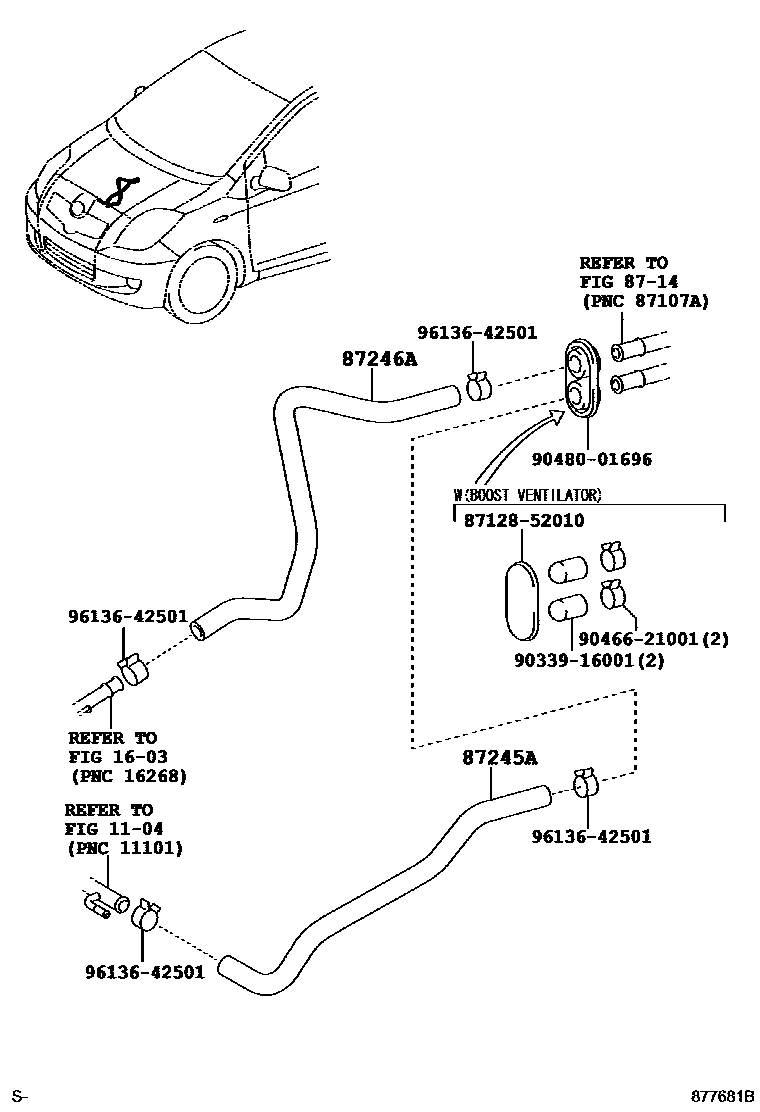

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-52080iNCP9#..ARL,GEN; NCP90..GCC200508-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

87246AHOSE, HEATER WATER, OUTLET A

main87245-52100iNCP9#..ARL,GEN; NCP90..GCC200508-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

8712852010GROMMET, HEATER

main87128-52010

9033916001

main90339-16001

9046621001

main90466-21001

9048001696

main90480-01696

9613642501

main96136-42501

10 parts on this diagram · 1 diagram in section
