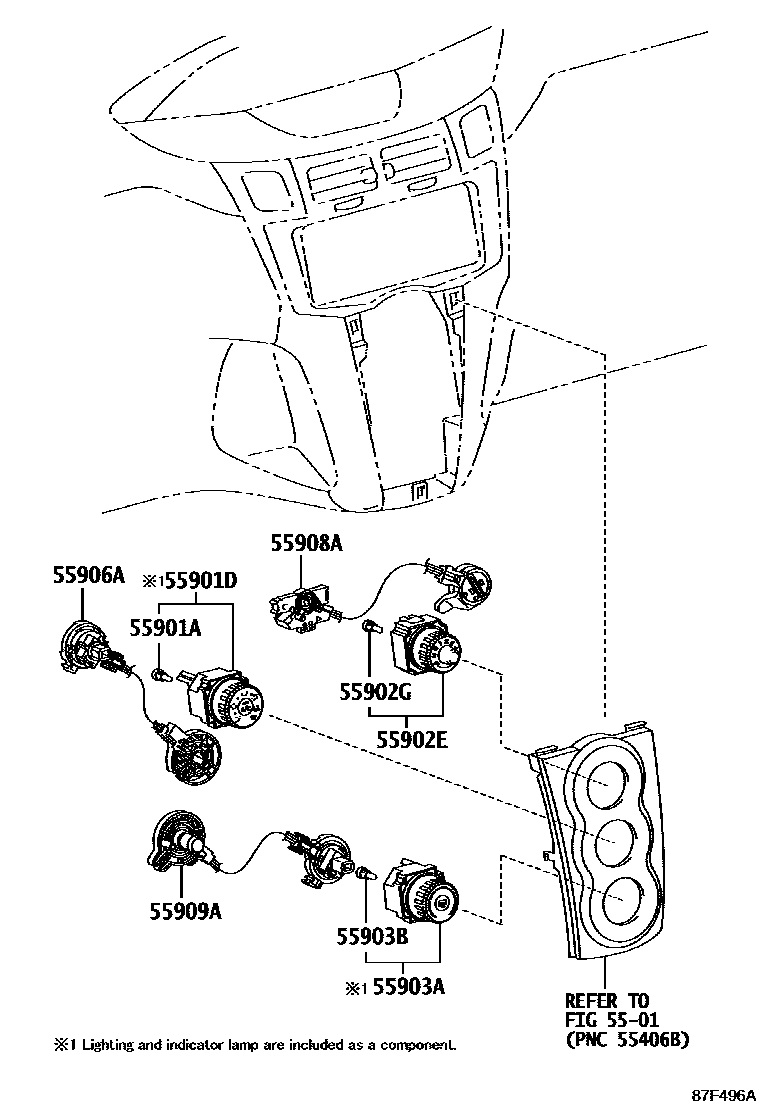

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901ABULB, HEATER CONTROL SUB-ASSY, NO.1

main90010-01113iNCP9#200508-200808

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-52100iNCP9#..ARL,GEN200508-200808

main55901-52120iNCP90..GCC; NCP90..LHD..GEN200508-200808

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55901-52290iNCP9#..GCC; NCP9#..LHD..GEN200808-201107

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55901-52300iNCP9#..ARL,GEN200808-201107

main55901-52090iNCP9#; NCP9#..ARL;NCP90..LHD..GEN200508-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55901-52250iNCP9#..ARL200808-200812

AIR CONDITIONER-DEALER KIT

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-52010iNCP9#200508-200808

main55902-52130iNCP9#200808-201107

55902GBULB, HEATER CONTROL SUB-ASSY, NO.2

main90010-01113iNCP9#200508-200808

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-52010supersedes 55903-52030iNCP9#..ARL; NCP90..GCC; NCP90..GEN200508-200808

REAR WINDOW DEFOGGER-WITH; REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55903-52260supersedes 55903-52390iNCP9#..ARL; NCP9#..GCC; NCP9#..GEN200808-201107

REAR WINDOW DEFOGGER-WITH; REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55903-52030supersedes 55903-52080iNCP90..GCC; NCP90..GEN200508-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55903-52070iNCP90..GCC; NCP90..LHD..GEN200508-200808

REAR WINDOW DEFOGGER-WITH; REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55903-52080iNCP90..GCC; NCP90..LHD..GEN200508-200808

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55903-52330supersedes 55903-52340iNCP9#..GCC; NCP9#..LHD..GEN200808-201107

REAR WINDOW DEFOGGER-WITH; REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55903-52340iNCP9#..GCC; NCP9#..LHD..GEN200808-201107

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main55903-52390supersedes 55903-52340iNCP9#..GCC; NCP9#..GEN200808-201107

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

55903BBULB, HEATER CONTROL SUB-ASSY, NO.3

main90010-01113iNCP9#200508-200808

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP9#200508-200808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120iNCP90..LHD200508-200808

main55908-52130iNCP9#..RHD200808-201108

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP9#..ARL,GEN; NCP90..GCC200508-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

10 parts on this diagram · 4 diagrams in section
