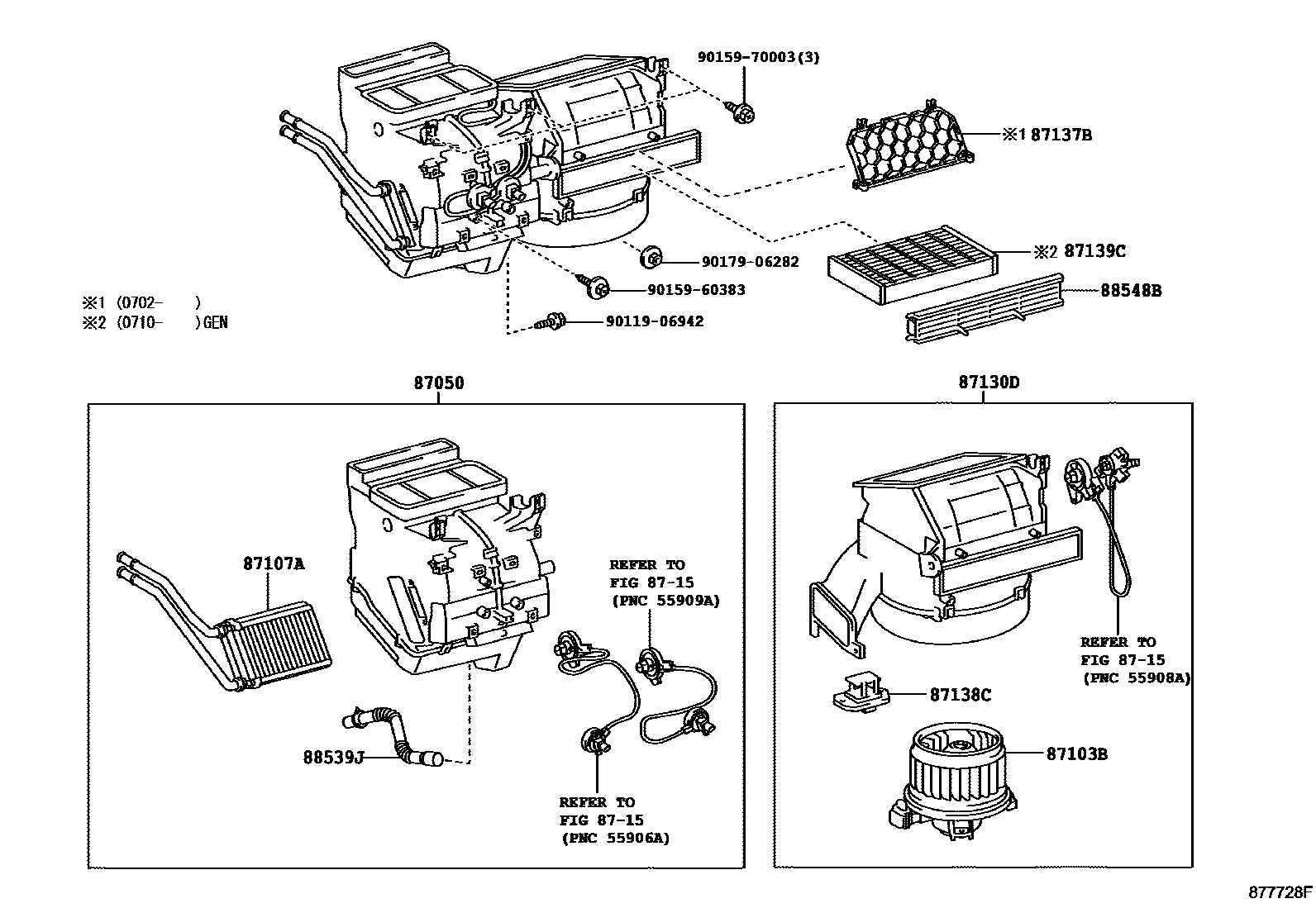

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W/O(AIR CONDITIONER) 0002 1BOOST VENTILATOR 0003 1MANUAL AIR CONDITIONER 0004 1W/O(AIR CONDITIONER) 0005 1MANUAL AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52121iNCP90..GCC; NCP90..LHD..GEN200508-200607

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main87050-52122supersedes 87050-52102iNCP9#..GCC; NCP9#..LHD..GEN200808-201108

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main87050-52012supersedes 87050-52051iNCP9#..RHD200508-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52061iNCP90..LHD200508-200607

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52062iNCP90..LHD200608-200808

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52063iNCP9#..LHD201012-201108

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52131supersedes 87050-52051iNCP9#..RHD201012-201108

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52120iNCP9#..RHD200808-201012

main87103-52121iNCP9#..RHD201012-201107

main87103-52140iNCP90..LHD200508-200808

main87103-52141iNCP9#..LHD201009-201107

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52060iNCP9#..ARL,GEN; NCP9#..GCC200808-200902

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87107-52061iNCP9#..ARL,GEN; NCP9#..GCC200902-201108

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

87130DBLOWER ASSY

main87130-52070iNCP90..GCC; NCP90..LHD..GEN200508-200701

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main87130-52071supersedes 87130-52121iNCP90..GCC; NCP90..LHD..GEN200702-200807

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main87130-52072supersedes 87130-52132iNCP9#..GCC; NCP9#..LHD..GEN200808-201107

AIR CONDITIONER-MANUAL(ONLY BOOST BENT)

main87130-52030supersedes 87130-52180iNCP9#..RHD200508-200701

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52031supersedes 87130-52180iNCP9#..RHD200702-200807

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52032supersedes 87130-52180iNCP9#..RHD200808-201012

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52050supersedes 87130-52180iNCP9#..RHD201012-201107

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52092iNCP9#..LHD201012-201107

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

87137BCOVER, HEATER BLOWER

main87137-52010iNCP9#200808-200908

87138CRESISTOR, BLOWER

main87138-52030iNCP9#200508-200808

87139CFILTER, CLEAN AIR

main87139-52020iNCP9#..GEN200808-201107

CLEAN AIR FILTER-WITH,MICRO DUST FILTER

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88539JHOSE, DRAIN COOLER

main88539-52020iNCP9#200508-200808

main88539-52030iNCP9#..RHD201101-201107

main88539-52040iNCP9#..LHD201101-201107

88548BCASE, AIR FILTER

main88548-52040iNCP9#200508-200808

9011906942

main90119-06942

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

14 parts on this diagram · 5 diagrams in section
