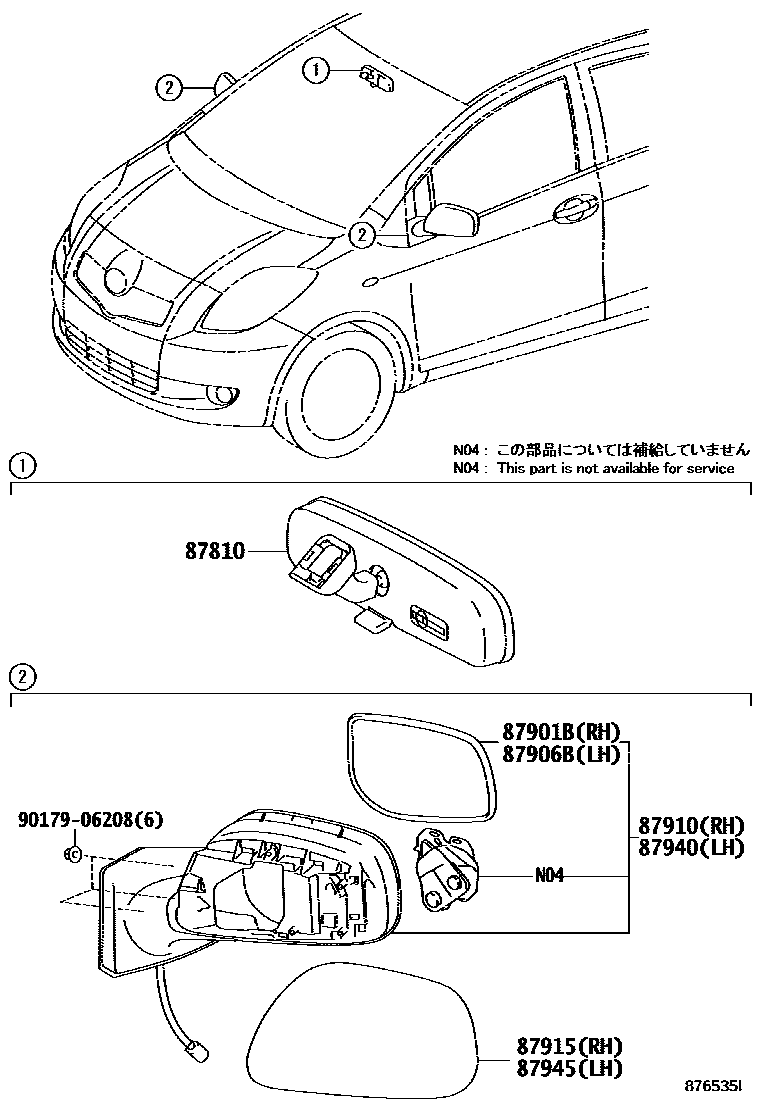

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
9017906208
main90179-06208
8 parts on this diagram · 1 diagram in section
