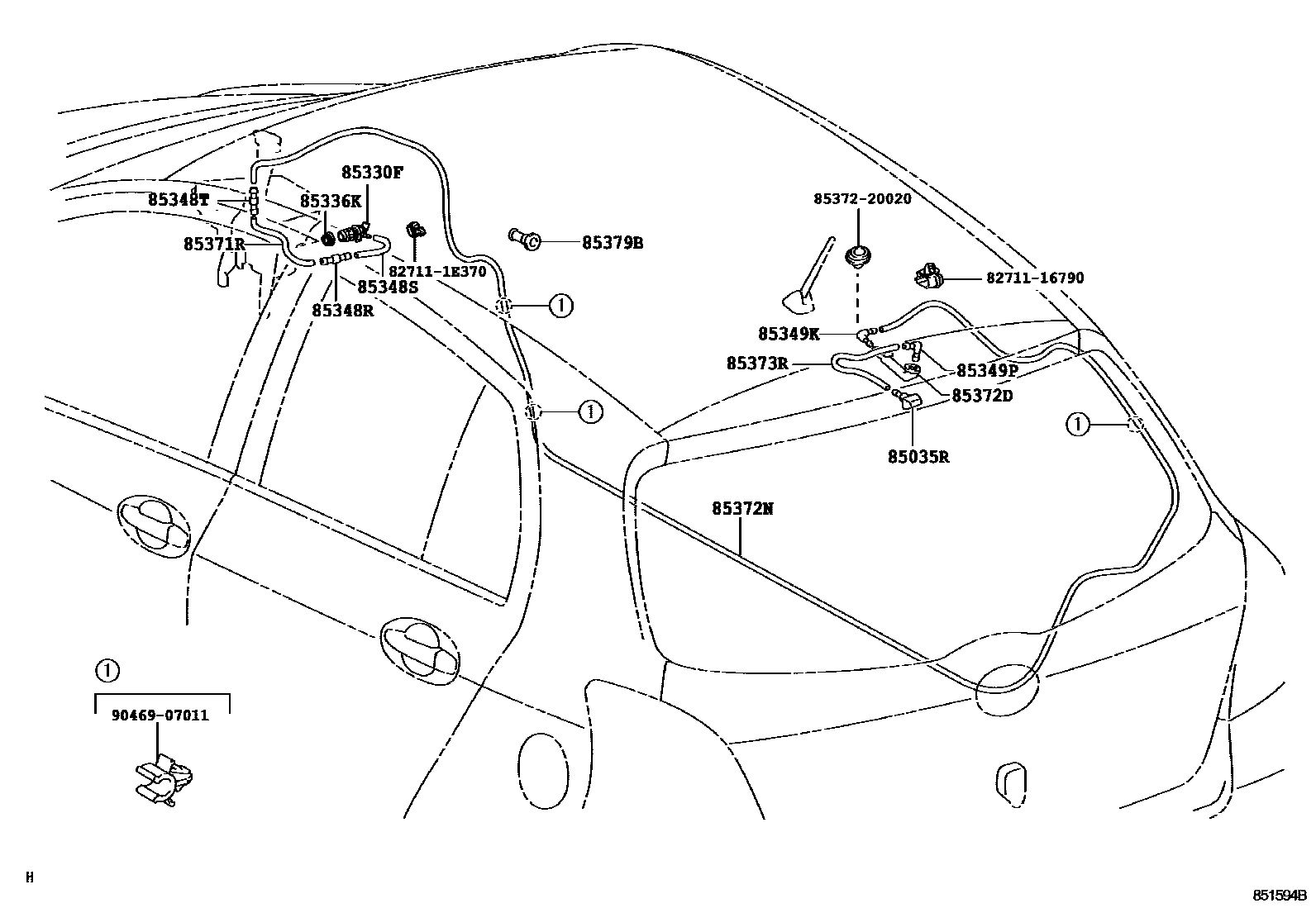

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010iNCP9#200508-200808

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNCP9#200508-200808

85336KPROTECTOR, WASHER JAR

main85336-60300iNCP9#200508-200808

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP9#200508-200808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85336-12230iNCP9#200508-200808

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNCP9#200508-200808

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNCP9#200508-200808

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iNCP9#200508-200808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP9#200508-200808

L=1450(*H,L=200)

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNCP9#200508-200808

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iNCP9#200508-200706

L=4985(*H,L=4345)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNCP9#200508-200808

L=1000(*H,L=220)

85379BGROMMET, WASHER, A

main85379-52351iNCP9#200508-200808

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

9046907011

main90469-07011

17 parts on this diagram · 1 diagram in section
