ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200508-200808

89456RESISTOR, VARIABLE

main89450-52020i200808

EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

89661COMPUTER, ENGINE CONTROL

main89661-52B50i200508-200808

EXHAUST EMISSION CONTROL-EURO4 WITH(OBD)

main89661-52B60i200508-200808

EXHAUST EMISSION CONTROL-EURO4 WITH(OBD)

main89661-52B70i200808-201107

SOUTH AFRICA SPEC

main89661-52C00i200508-200808

SOUTH AFRICA SPEC

main89661-52C10i200508-200803

main89661-52C11i200808-200908

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)

main89661-52C30i200508-200803

main89661-52C31i200804-200808

main89661-52E01i200808-201107

main89661-52E11i200808-201107

main89661-52L80i200908-201107

main89661-52L90i200908-201107

main89661-52C40i200808-201107

EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

main89661-52G90i200808-201107

ABS(ANTI-LOCK BRK SYSTM)-WITHOUT

main89661-52J20i200808-201107

ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROADSPEC.

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52190i200508-200808

main89667-52200i200808-201107

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210i200508-200808

main89668-52220i200808-201107

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

91631J0612

main91631-J0612

9167180610

main91671-80610

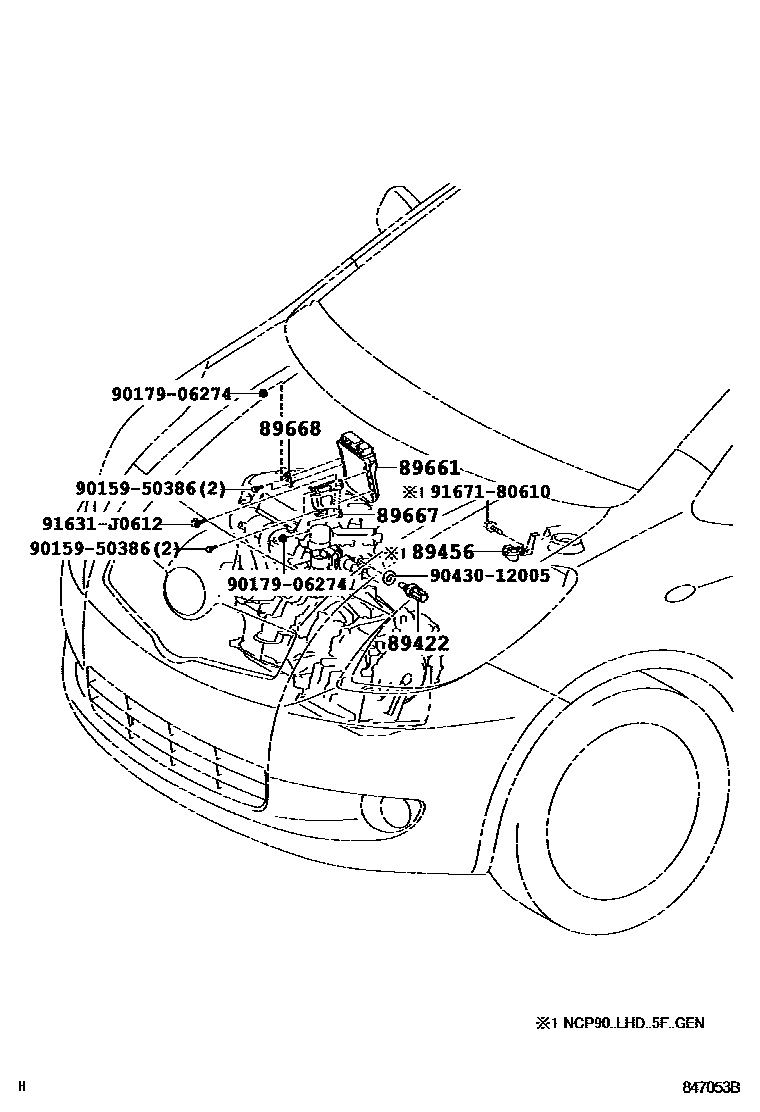

10 parts on this diagram · 2 diagrams in section
