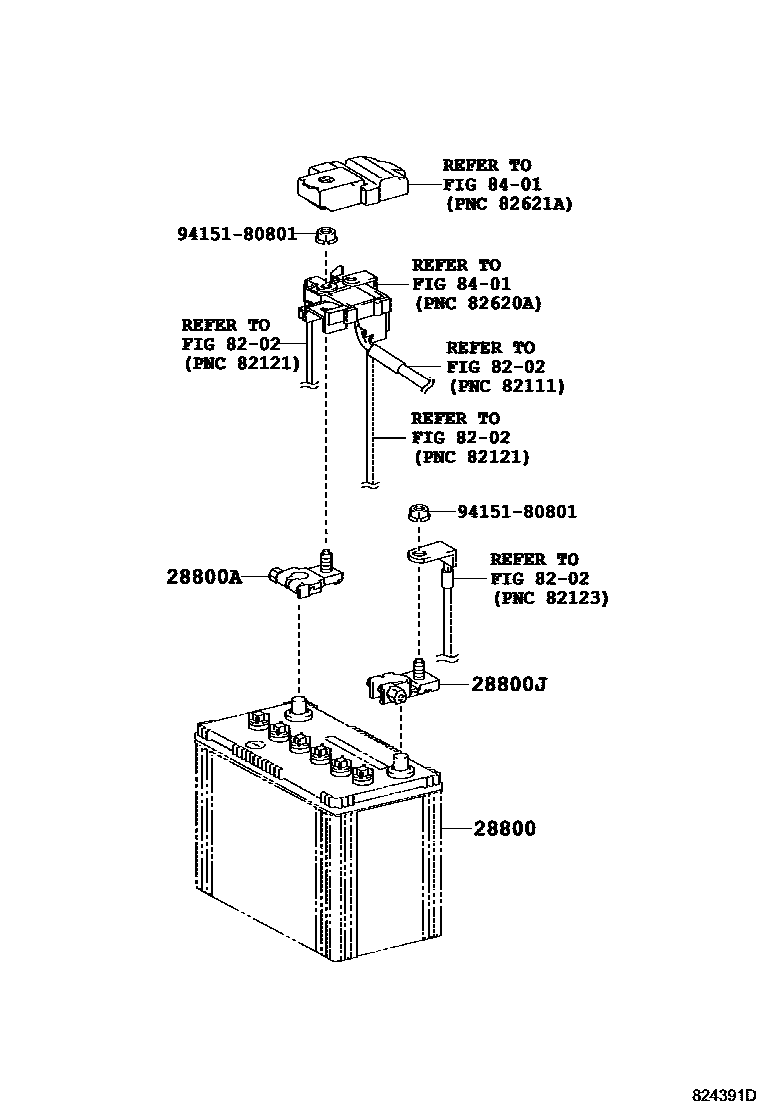

BATTERY & BATTERY CABLE

28800BATTERY

main28800-22040i1NZFE,2NZFE..NCP9#201105-201108

46B24L(S),PANASONIC

main28800-74261i1NZFE,2NZFE..NCP9#200808-201108

46B24L(S),FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1NZFE,2NZFE..NCP9#200808-201011

main90982-05061i1NZFE,2NZFE..NCP9#201011-201107

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1NZFE,2NZFE..NCP9#200508-200808

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
