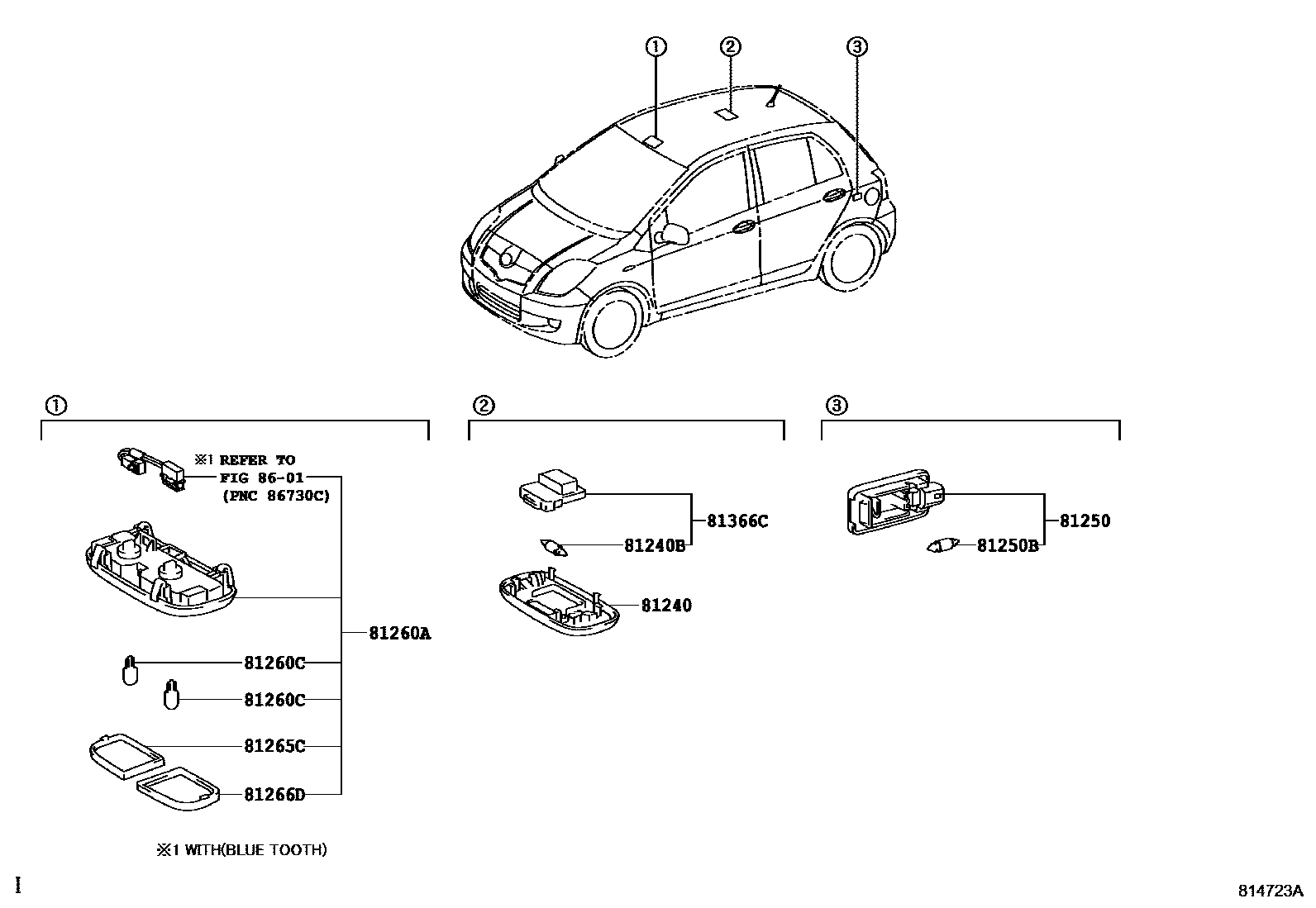

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iNCP9#200808-201108

GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP9#200808-201107

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNCP9#..ARL,GCC; NCP9#..GEN201010-201107

WITH(PACKAGE TRAY & PARCEL SHELF)

main81330-05021iNCP9#..ARL,GCC; NCP9#..GEN200808-201009

WITH(PACKAGE TRAY & PARCEL SHELF)

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNCP9#..ARL,GCC; NCP90..GEN200508-200808

12V 5W

main90981-WE003iNCP9#..ARL,GCC; NCP9#..GEN201010-201107

12V 5W; 12V 5W,WITH(PACKAGE TRAY & PARCEL SHELF)

81260ALAMP ASSY, MAP

main81260-52030-B0iNCP9#200508-200808

GRAY,TRIM1#

main81260-52041-B0iNCP90..5D..ARL200808-201108

AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH),GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP9#200508-200808

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP9#200508-200808

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP9#200508-200808

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP9#200508-200808

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

10 parts on this diagram · 1 diagram in section
