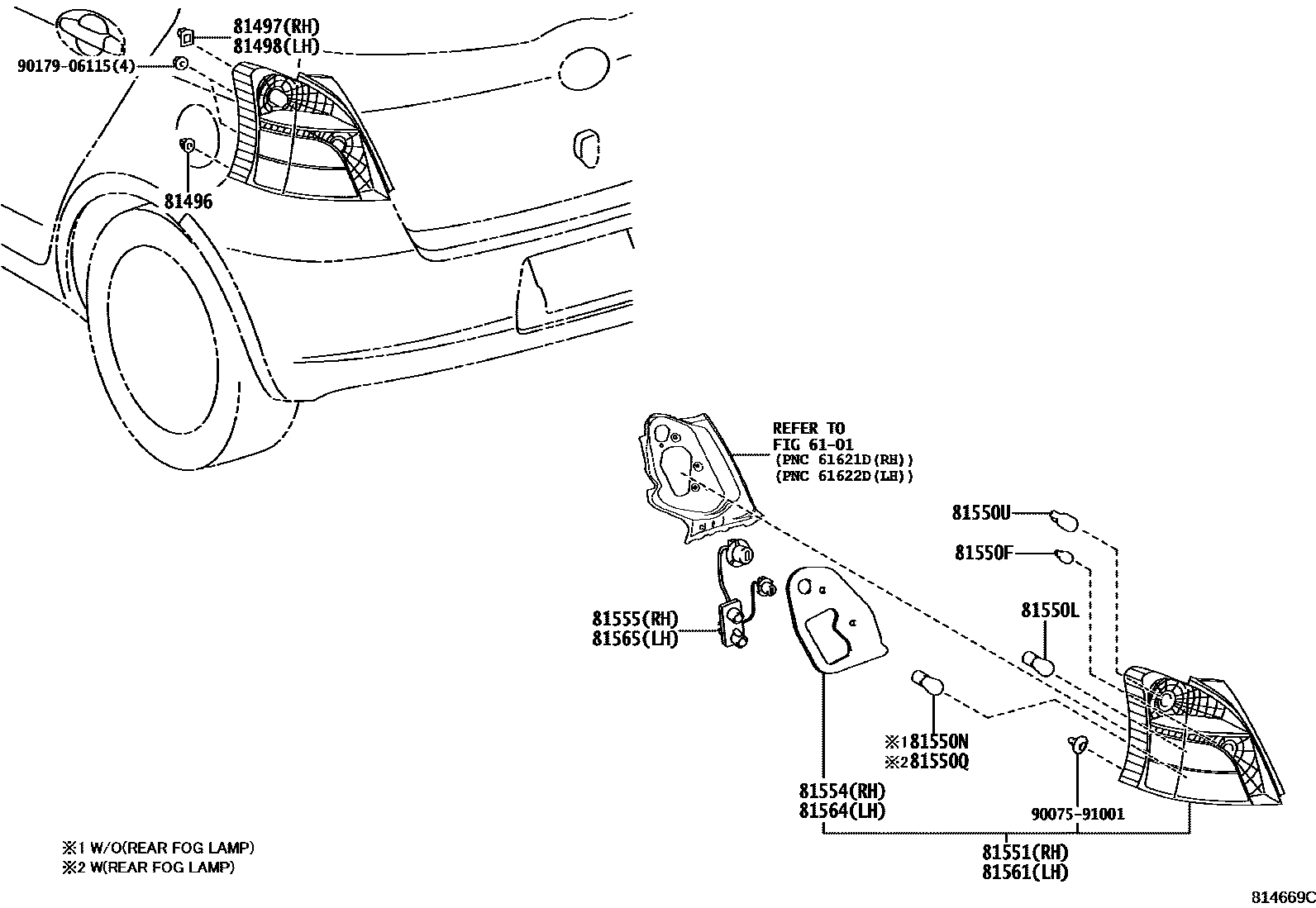

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iNCP9#200508-200808

81497COVER, REAR COMBINATION LAMP, RH

main81497-52020iNCP9#200508-200808

81498COVER, REAR COMBINATION LAMP, LH

main81497-52020iNCP9#200508-200808

81550FBULB, TAILLAMP

main99132-12050×2iNCP9#200508-200808

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15009×2iNCP9#200508-200808

main99132-11210×2iNCP9#200808-201108

81550NBULB, BACK UP LAMP

main99132-11210iNCP9#..ARL; NCP90..GCC,GEN200508-200808

81550QBULB, REAR FOG LAMP, NO.1

main99132-11210iNCP9#..ARL200508-200808

81550UBULB, STOP LAMP

main90981-13043×2iNCP9#200508-200808

81551LENS, REAR COMBINATION LAMP, RH

main81551-52550iNCP90..GCC,GEN200508-200808

main81551-52560iNCP9#..ARL200508-200808

main81551-52710iNCP9#200808-201108

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-52710iNCP9#201010-201108

main81554-52530iNCP9#200508-200808

main81554-52710iNCP9#200808-201010

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52550iNCP90..GCC,GEN200508-200808

main81555-52560iNCP9#..ARL200508-200808

main81555-52710iNCP9#200808-201107

81561LENS, REAR COMBINATION LAMP, LH

main81561-52480iNCP9#200508-200808

main81561-52630iNCP9#200808-201108

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-52630iNCP9#201010-201108

main81564-52470iNCP9#200508-200808

main81564-52630iNCP9#200808-201010

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-52480iNCP9#200508-200808

main81565-52630iNCP9#200808-201107

9007591001

main90075-91001

9017906115

main90179-06115

17 parts on this diagram · 2 diagrams in section
