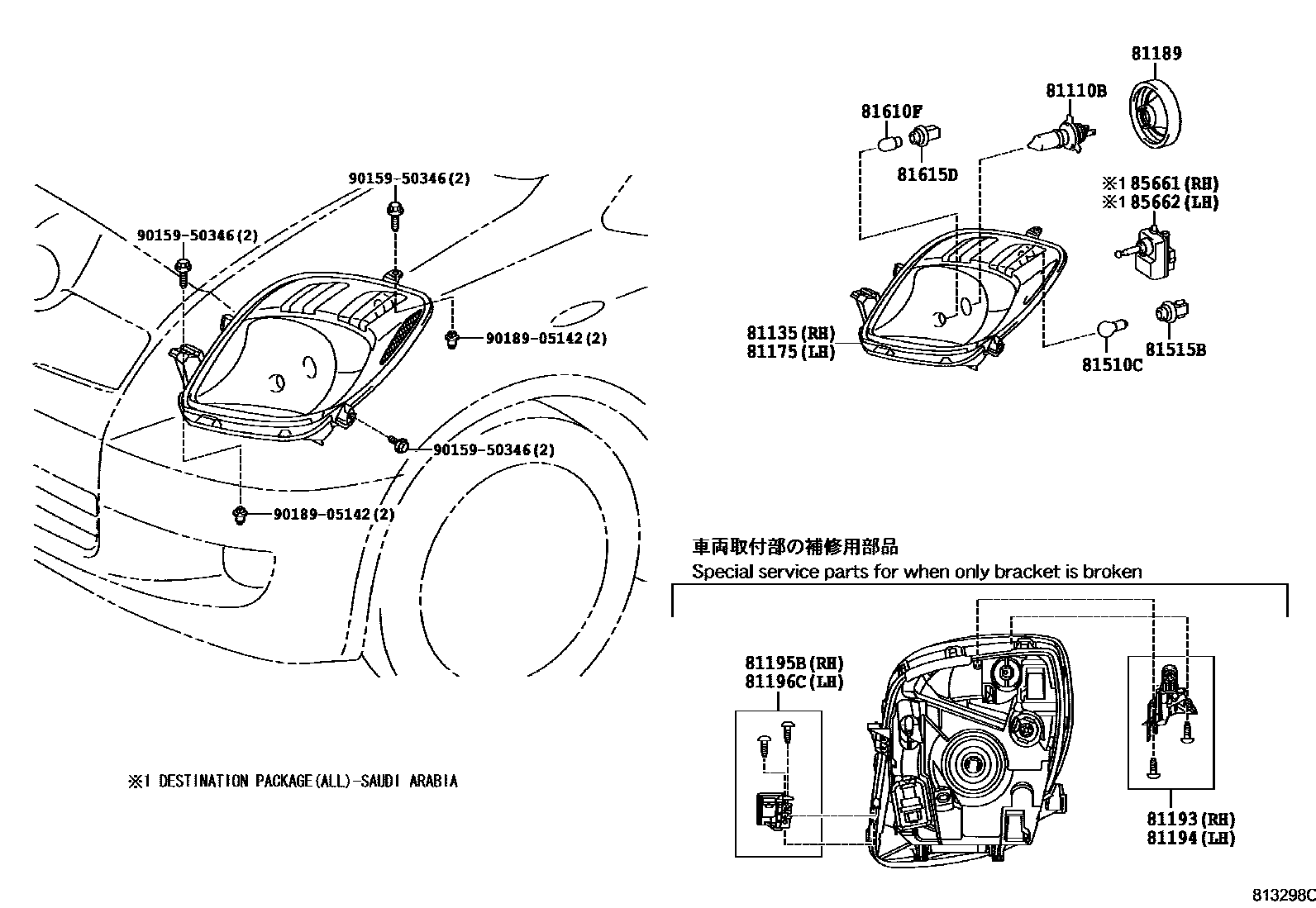

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP9#200508-201107

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52571iNCP9#..RHD200508-200808

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81130-52600iNCP90..LHD..GEN200508-200808

main81130-52690iNCP90..GCC200508-200808

main81130-52B20iNCP9#..RHD200808-201108

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81130-52B40iNCP9#..LHD..GEN200808-201108

main81130-52B60iNCP9#..GCC200808-201108

81175UNIT ASSY, HEADLAMP, LH

main81170-52561iNCP9#..RHD200508-200808

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81170-52590iNCP90..LHD..GEN200508-200808

main81170-52680iNCP90..GCC200508-200808

main81170-52B10iNCP9#..RHD200808-201108

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81170-52B30iNCP9#..LHD..GEN200808-201108

main81170-52B50iNCP9#..GCC200808-201108

81189COVER, HEADLAMP

main81139-52570iNCP9#200508-201107

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52080iNCP9#200508-201107

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52080iNCP9#200508-201107

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-52050iNCP9#200508-200808

main81195-52110iNCP9#200808-201107

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-52050iNCP9#200508-200808

main81196-52110iNCP9#200808-201107

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15020iNCP9#200508-201107

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-52570iNCP9#200508-201107

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP9#200508-201107

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-52570iNCP9#200508-201107

85661MOTOR, HEADLAMP LEVELING, RH

main85661-52010

85662MOTOR, HEADLAMP LEVELING, LH

main85661-52010

9015950346

main90159-50346

9018905142

main90189-05142

16 parts on this diagram · 2 diagrams in section
