SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52030iNCP9#200508-200808

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-52030iNCP9#200508-200808

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52130iNCP9#200508-200808

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75551-52130iNCP9#200508-200808

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52040×4iNCP9#200508-200808

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-52020iNCP9#200508-200805

main75751-52030iNCP9#200805-200808

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-52010iNCP9#200508-200805

main75752-52020iNCP9#200805-200808

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-52030iNCP9#..3D200508-200808

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-52020iNCP9#..3D200508-200808

9046710162

main90467-10162

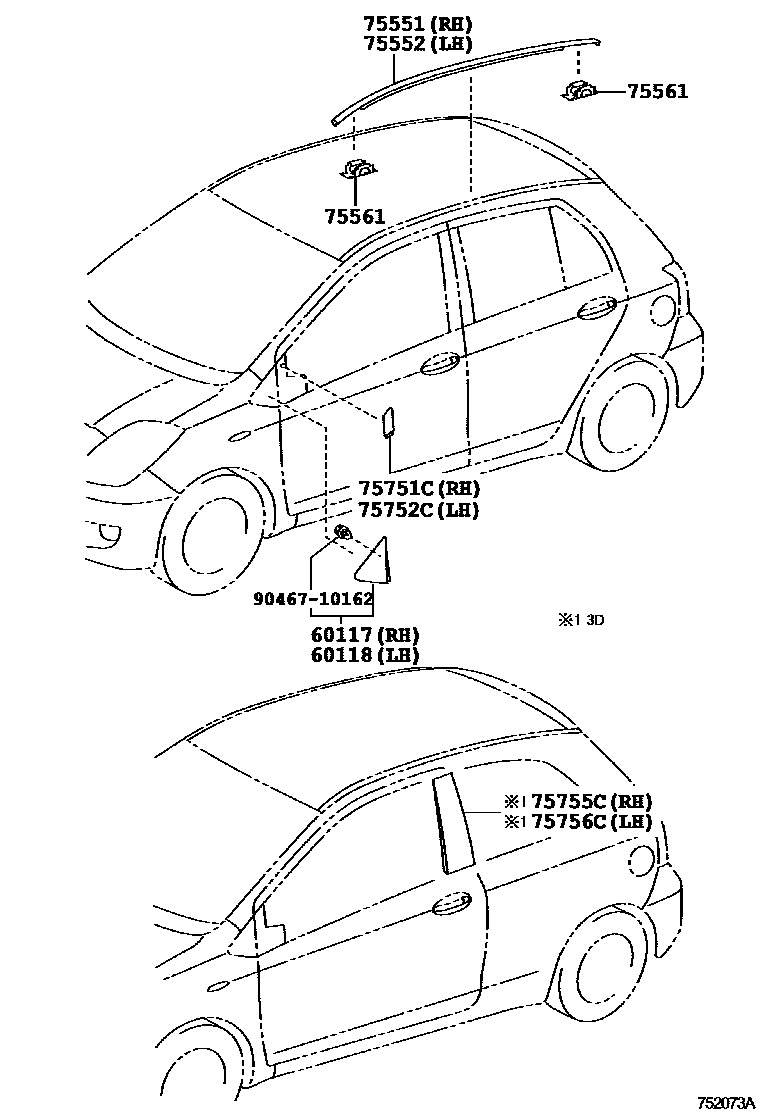

10 parts on this diagram · 1 diagram in section
