BATTERY CARRIER

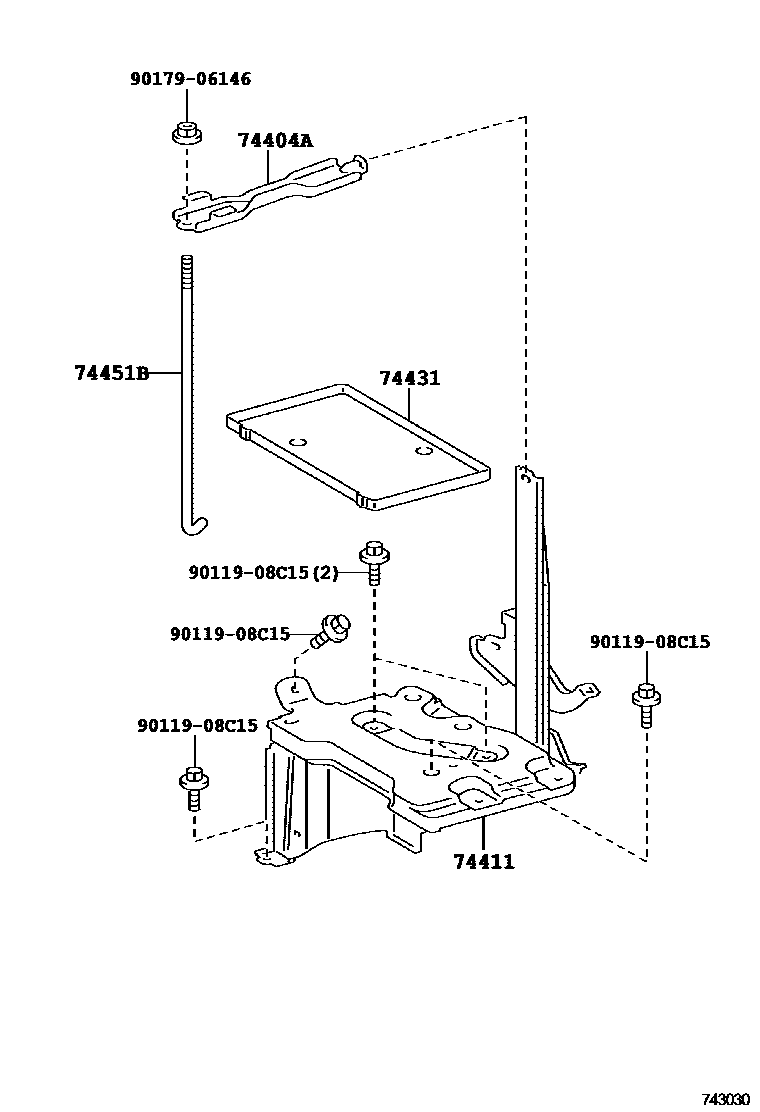

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-52040i200508-200808

74411CARRIER, BATTERY

main74410-52010i200808-201107

main74410-52020i200808-201107

74431TRAY, BATTERY

main74431-52100i200508-200808

main74431-52101i201010-201107

74451BBOLT, BATTERY CLAMP

main74451-52070i200508-200808

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
