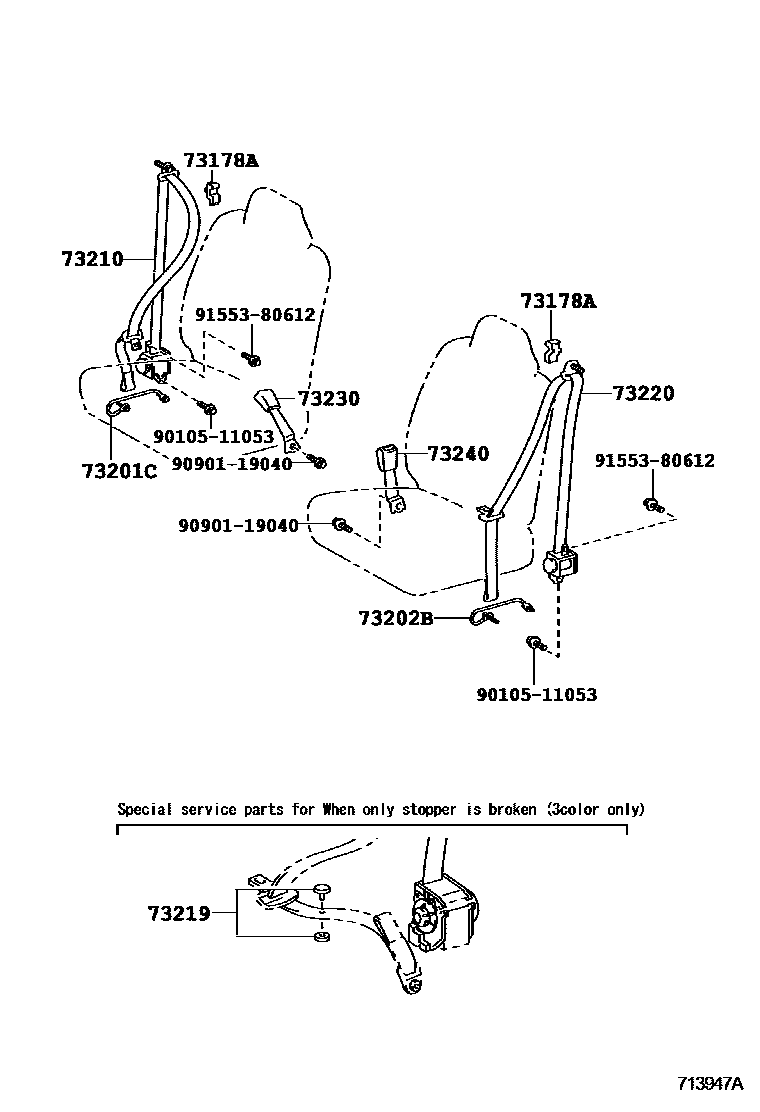

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1FRONT SEAT BELT 0003 1REAR SEAT BELT(CENTER = 3 POI0004 1REAR SEAT BELT(CENTER = 2 POI

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0×2iNCP9#..5D200508-200808

GRAY,TRIM18,19

main73178-52060-B1×2iNCP9#..3D200808-201107

GRAY,TRIM1#

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-52020-B0iNCP9#..3D200508-200808

DK.GRAY,TRIM18,19

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-52020-B0iNCP9#..3D200808-201107

DK.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52490-C0iNCP9#..3D200508-200808

BLACK,TRIM18,19

main73210-52521-C4iNCP9#..5D200508-200808

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP9#200508-200808

BLACK

main73219-33020iNCP9#200808

GRAY

main73219-33030iNCP9#200808

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52550-C0iNCP9#..3D200808-201107

BLACK,TRIM1#

main73220-52571-C4iNCP9#..5D200808-201107

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52490-B0iNCP9#..5D..ARL200508-200606

DK.GRAY,TRIM18,19,DRIVER SIDE

main73230-52491-B0iNCP9#..ARL200808-201108

DK.GRAY,TRIM1#

main73230-52500-B0iNCP90..GCC200508-200606

DK.GRAY,TRIM18,19,PASSENGER SIDE

main73230-52501-B0iNCP9#..GCC200808-201108

DK.GRAY,TRIM1#

main73230-52510-B0iNCP90..GEN200508-200808

DK.GRAY,TRIM18,19

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52490-B0iNCP90..GCC200508-200606

DK.GRAY,TRIM18,19,DRIVER SIDE

main73230-52491-B0iNCP9#..GCC200808-201108

DK.GRAY,TRIM1#

main73230-52500-B0iNCP9#..5D..ARL200508-200606

DK.GRAY,TRIM18,19,PASSENGER SIDE

main73230-52501-B0iNCP9#..ARL200808-201108

DK.GRAY,TRIM1#

main73230-52510-B0iNCP9#..GEN200808-201108

DK.GRAY,TRIM1#

main73230-52640-B0iNCP9#..3D..ARL200508-200607

DK.GRAY,TRIM18,19

9010511053

main90105-11053

9090119040

main90901-19040

9155380612

main91553-80612

11 parts on this diagram · 4 diagrams in section
