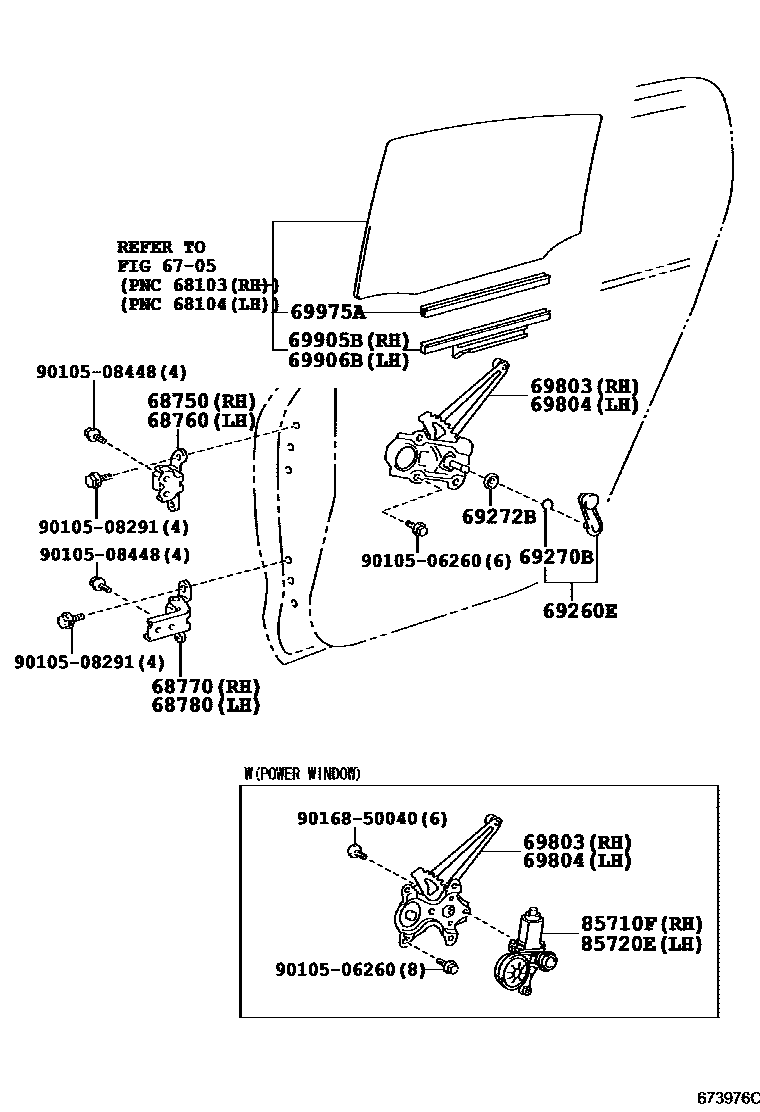

REAR DOOR WINDOW REGULATOR & HINGE
6705REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
DK.GRAY,TRIM1#; POWER DOOR LOCK-W(DRIVER+PASSENGER),DK.GRAY,TRIM1#; POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER DOOR LOCK-W(DRIVER+PASSENGER); POWER WINDOW-WITH(FRONT & REAR)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER DOOR LOCK-W(DRIVER+PASSENGER); POWER WINDOW-WITH(FRONT & REAR)
POWER DOOR LOCK-WITH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
POWER DOOR LOCK-WITH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
POWER DOOR LOCK-WITH
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
POWER DOOR LOCK-WITH
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
POWER DOOR LOCK-WITH
9010506260
main90105-06260
9010508291
main90105-08291
9010508448
main90105-08448
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
