REAR DOOR LOCK & HANDLE

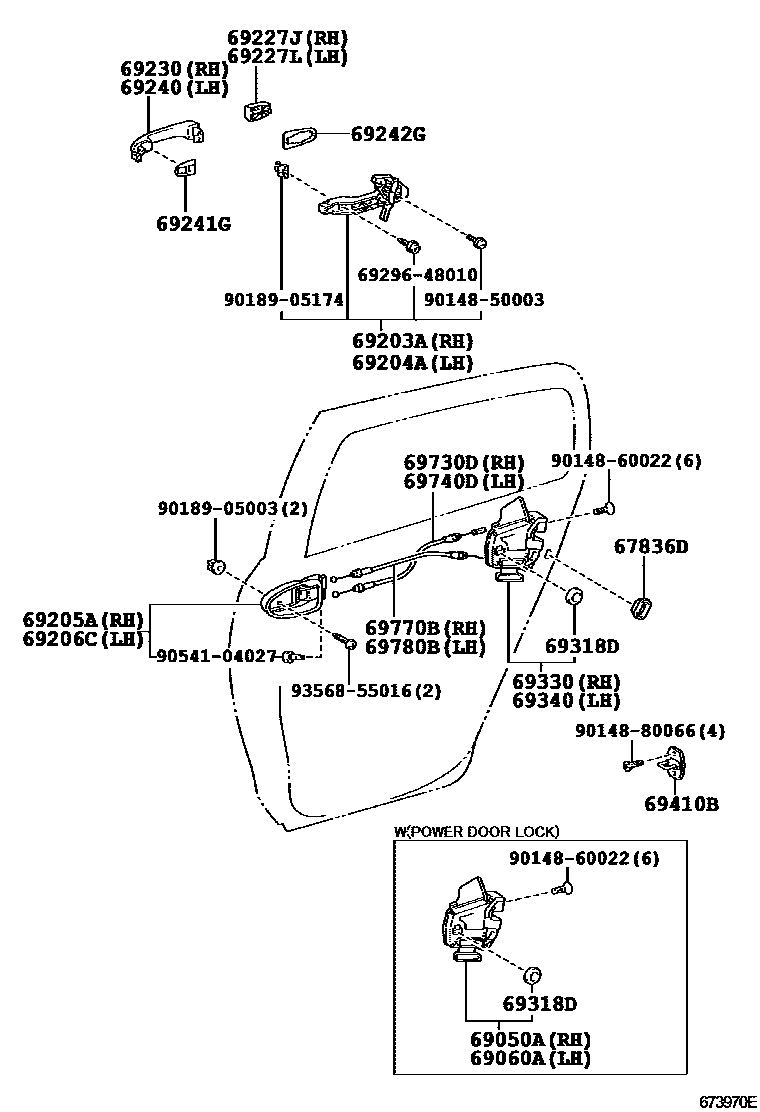

Parts diagram
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
main67836-12040×2i200508-200808
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-52190i200508-200808
POWER DOOR LOCK-WITH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-52200i200508-200808
POWER DOOR LOCK-WITH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-52040i200508-200808
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-52050i200508-200808
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-52070-B1i200508-200808
DK.GRAY,TRIM1#
main69205-52120-B5i200808-201107
DK.GRAY,TRIM1#
main69205-52130-B0i200808-201107
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-52110-B1i200508-200808
DK.GRAY,TRIM1#
main69206-52120-B5i200808-201107
DK.GRAY,TRIM1#
main69206-52130-B0i200808-201107
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-42060i200808-201107
BLACK MATERIAL
main69227-42070-03i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
main69227-42070-50i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
main69227-42070-A3i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040 ,068
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main69227-42070-C2i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main69227-42070-F9i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
main69227-42070-H4i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
main69227-42070-P0i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main69227-42070-P3i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
main69227-42070-P5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
main69227-42070-P6i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main69227-42070-R5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
main69227-42070-R6i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
main69227-42070-R8i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
main69227-42070-X0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
main69227-42070-X6i200808-201011
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
main69227-42070-Y4i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-42060i200808-201107
BLACK MATERIAL
main69227-42070-03i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
main69227-42070-50i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
main69227-42070-A3i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,068
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main69227-42070-C2i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main69227-42070-F9i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
main69227-42070-H4i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
main69227-42070-P0i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main69227-42070-P3i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
main69227-42070-P5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
main69227-42070-P6i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main69227-42070-R5i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
main69227-42070-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
main69227-42070-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
main69227-42070-X0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
main69227-42070-X6i200808-201011
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
main69227-42070-Y4i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-42010i200808-201107
NO PAINT REQ.
main69211-12220-03i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
main69211-12220-50i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
main69211-12220-A0i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,068
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main69211-12220-C2i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main69211-12220-F9i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
main69211-12220-P0i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main69211-12220-P3i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
main69211-12220-P5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
main69211-12220-P6i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main69211-12220-R5i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
main69211-12220-R6i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
main69211-12220-R8i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
main69211-12220-X0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
main69211-12220-X6i200808-201011
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
main69211-12220-Y4i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
main69211-52090-H1i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-42010i200508-200808
NO PAINT REQ.
main69211-12220-03i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
main69211-12220-50i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILKY GOLD M.M.,5A7
main69211-12220-A0i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040 ,068
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main69211-12220-C2i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main69211-12220-F9i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
main69211-12220-P0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main69211-12220-P3i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
main69211-12220-P5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
main69211-12220-P6i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main69211-12220-R5i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
main69211-12220-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
main69211-12220-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
main69211-12220-X0i200808-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0
main69211-12220-X6i200808-201011
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
main69211-12220-Y4i201008-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),CHERRY PEARL CS.,3S7
main69211-52090-H1i200808-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48020×2i200508-200808
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-42010×2i200508-200610
main69242-52020×2i200611-200808
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-47010×2i200508-200808
69330LOCK ASSY, REAR DOOR, RH
main69330-52210i200808-200903
69340LOCK ASSY, REAR DOOR, LH
main69340-52220i200508-200808
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33010×2i200508-200808
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-52110i200508-200701
main69730-52150i200702-200808
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-52110i200508-200701
main69730-52150i200702-200808
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-52030i200508-200808
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-52030i200508-200808
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9018905174
main90189-05174
9054104027
main90541-04027
9356855016
main93568-55016

29 parts on this diagram · 1 diagram in section
