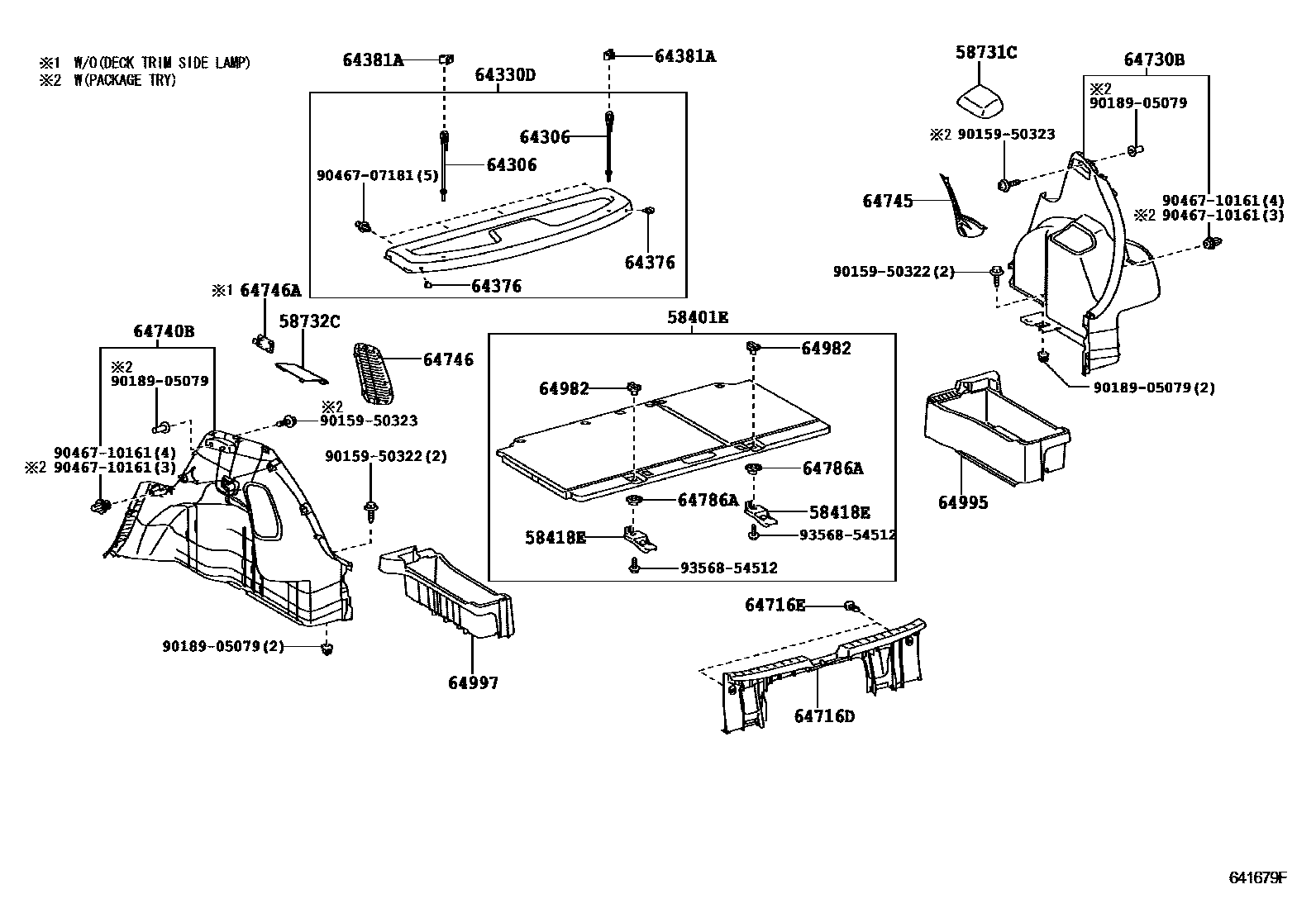

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
58418EBOARD, REAR FLOOR, NO.4
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
WITH(PACKAGE TRAY & PARCEL SHELF)
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#
WITH(PACKAGE TRAY & PARCEL SHELF),BLACK,TRIM1#
BLACK,TRIM18,19
64376SPACER, PACKAGE TRAY TRIM, NO.2
WITH(PACKAGE TRAY & PARCEL SHELF)
64381AHANGER, PACKAGE TRAY TRIM
WITH(PACKAGE TRAY & PARCEL SHELF)
64716DCOVER, DECK TRIM, REAR
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,DK.GRAY,TRIM18,19
DK.GRAY,TRIM18,19
ALGERIA SPEC,DK.GRAY,TRIM18,19
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER = STEEL&TIRE & DISK WHEEL-175/65R14 5J BLACK,DK.GRAY,TRIM18,19
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER = STEEL&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,DK.GRAY,TRIM18,19
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK,DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
64716ECLIP(FOR DECK TRIM REAR COVER)
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK,DK.GRAY,TRIM18,19
sub90467-08186
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER = STEEL&TIRE & DISK WHEEL-175/65R14 5J BLACK,DK.GRAY,TRIM18,19
sub90467-08186
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER = STEEL&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,DK.GRAY,TRIM18,19
sub90467-08186
ALGERIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,DK.GRAY,TRIM18,19
sub90467-08186
64730BPANEL ASSY, DECK TRIM SIDE, RH
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
WITH(PACKAGE TRAY & PARCEL SHELF),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM18,19
64740BBOARD, DECK TRIM SIDE, LH
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
WITH(PACKAGE TRAY & PARCEL SHELF),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM18,19
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
64746ACOVER, DECK TRIM SIDE LAMP HOLE
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
WITH(PACKAGE TRAY & PARCEL SHELF),DK.GRAY,TRIM1#
BLACK,TRIM1#
WITH(PACKAGE TRAY & PARCEL SHELF),BLACK,TRIM1#
64786APLATE, JACK COVER
64982KNOB, COVER
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
9015950322
main90159-50322
9015950323
main90159-50323
9018905079
main90189-05079
9046707181
main90467-07181
9046710161
main90467-10161
9356854512
main93568-54512
25 parts on this diagram · 1 diagram in section
