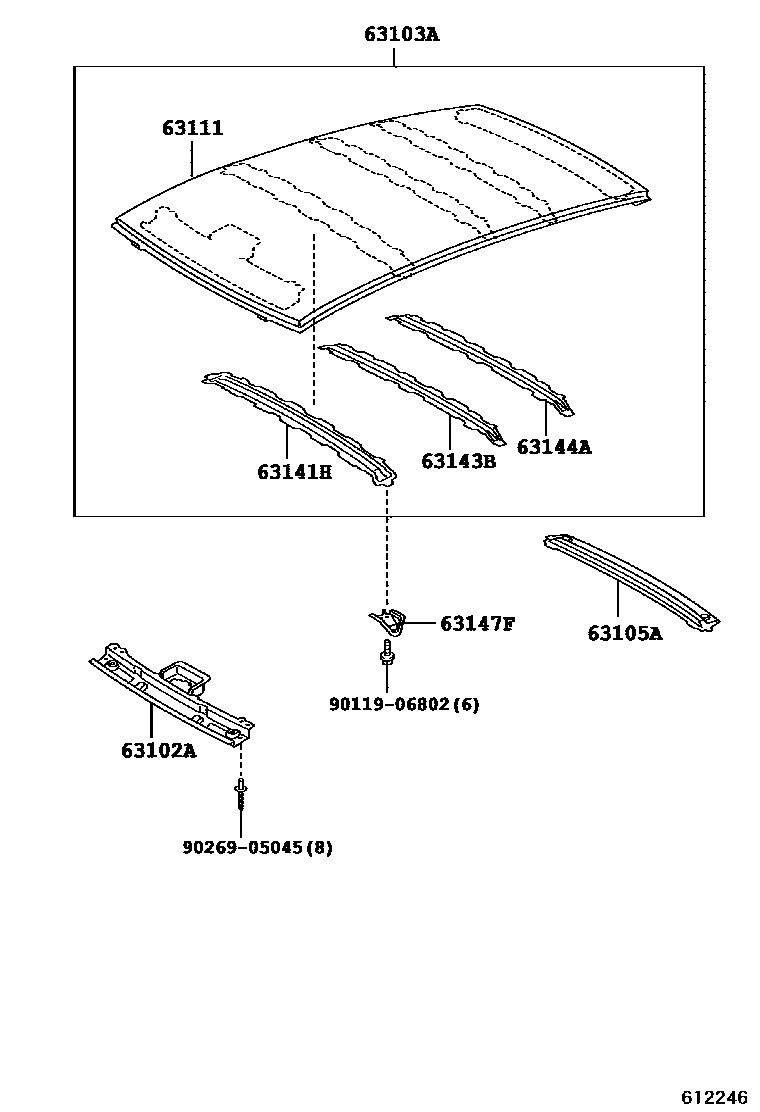

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52110iNCP9#200508-200808

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52070iNCP9#200508-200808

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52080iNCP9#200508-200808

63111PANEL, ROOF

main63111-52230iNCP9#200508-200808

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52100iNCP9#200508-200808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52110iNCP9#200508-200808

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52080iNCP9#200508-200808

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52040×2iNCP9#200508-200808

9011906802

main90119-06802

9026905045

main90269-05045

10 parts on this diagram · 1 diagram in section
