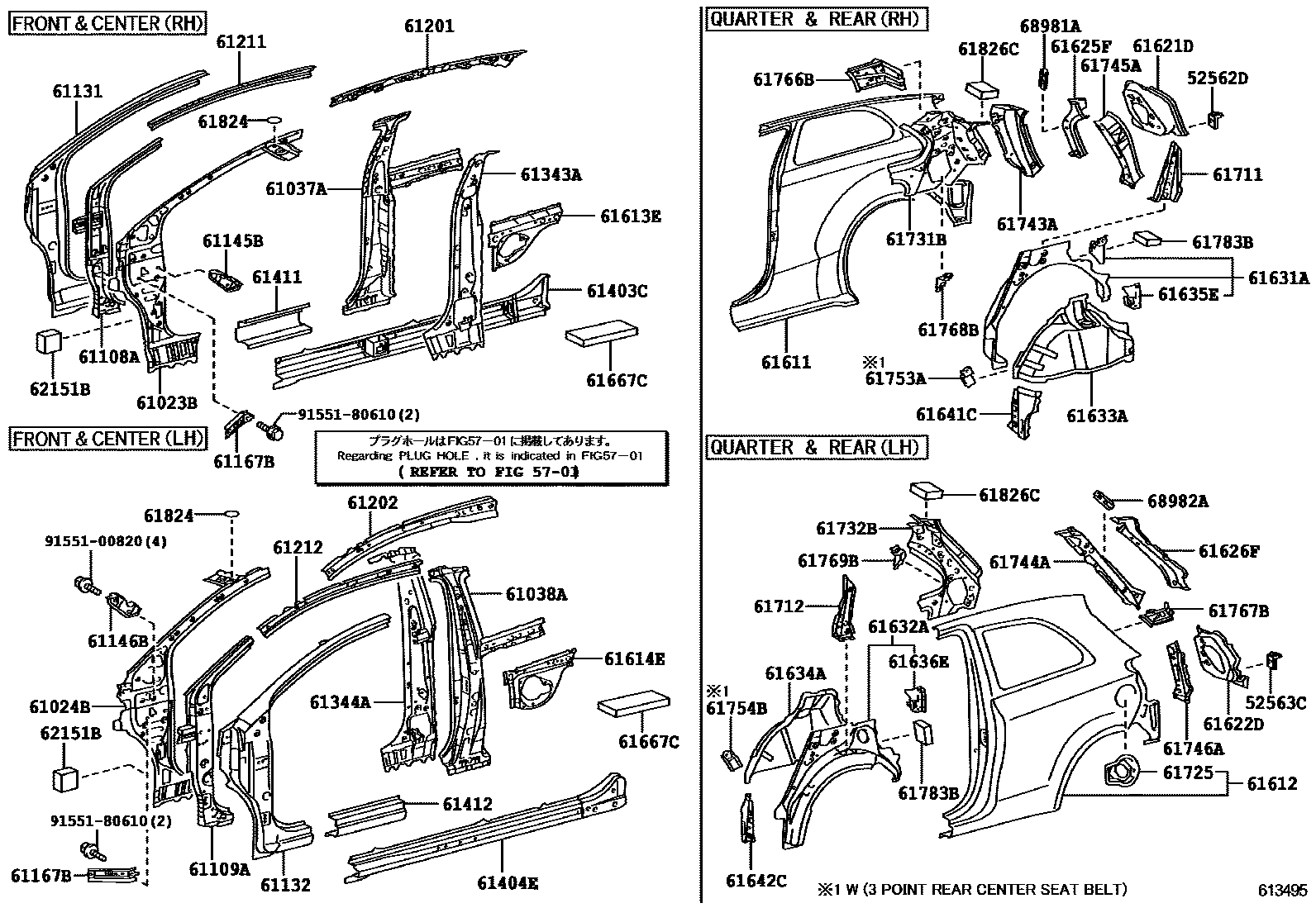

52562DRETAINER, REAR BUMPER, UPPER SIDE, RH

main52562-52030i200508-200808

52563CRETAINER, REAR BUMPER, UPPER SIDE, LH

main52562-52030i200808-201107

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52120i200508-200808

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-52120i200508-200808

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-52903i200508-200808

main61037-52904i200508-200808

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-52903i200508-200808

main61038-52904i200508-200808

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52120i200508-200808

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-52100i200508-200808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52170i200808-201107

main61131-52210i200808-201107

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52110i200508-200808

main61132-52190i200508-200808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-52010i200508-200808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-52020i200808-201107

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-52010×2i200508-200808

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-52040i200508-200808

main61201-52070i200508-200808

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-52030i200508-200808

main61202-52040i200508-200808

61211RAIL, ROOF SIDE, OUTER RH

main61211-52110i200808-201107

main61211-52120i200508-200808

61212RAIL, ROOF SIDE, OUTER LH

main61212-52070i200808-201107

main61212-52080i200808-201107

61343APILLAR, CENTER BODY, INNER RH

main61032-52030i200808-201005

main61032-52031i201006-201107

main61032-52040i200508-200808

main61032-52041i201006-201107

61344APILLAR, CENTER BODY, INNER LH

main61042-52020i200508-200808

main61042-52021i201006-201107

main61042-52030i200508-200808

main61042-52031i201006-201107

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52140i200508-200808

main61403-52150i200508-200808

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-52140i200808-201107

main61404-52150i200808-201107

61411PANEL, ROCKER, OUTER RH

main61411-52160i200508-200808

main61411-52170i200508-200808

61412PANEL, ROCKER, OUTER LH

main61412-52170i200808-201107

main61412-52180i200808-201107

61611PANEL, QUARTER, RH

main61601-52270i200508-200701

main61601-52440i200808-201107

main61611-52240i200808-201107

61612PANEL, QUARTER, LH

main61602-52290i200508-200701

main61602-52310i200508-200808

main61602-52470i200702-200808

61613EPANEL, QUARTER, INNER RH

main61613-52050i200808

61614EPANEL, QUARTER, INNER LH

main61614-52030i200508-200808

61621DTROUGH, BACK DOOR OPENING, RH

main61621-52110i200508-200808

61622DTROUGH, BACK DOOR OPENING, LH

main61622-52110i200508-200808

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-52110i200508-200808

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-52110i200508-200808

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52903supersedes 61631-52902i200508-200808

HONG KONG SPEC; HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE; SEAT COVER MATERIAL-FABRIC-HIGH GRADE

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-52902i200508-200808

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52330i200508-200808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-52370i200508-200808

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-52060i200508-200808

61636EEXTENSION, QUARTER WHEEL HOUSE, LH

main61636-52060i200508-200808

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52100i200508-200808

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-52100i200508-200808

61667CSEAL, QAURTER PANEL, NO.1

main61667-52070×2i200508-200808

61711PANEL, ROOF SIDE, OUTER RH

main61711-52130i200508-200808

61712PANEL, ROOF SIDE, OUTER LH

main61712-52160i200508-200808

61725BOX, FUEL INLET

main61725-52080i200808-201107

61731BPANEL, ROOF SIDE, INNER RH

main61731-52180i200808-201107

main61731-52190i200508-200808

61732BPANEL, ROOF SIDE, INNER LH

main61732-52230i200508-200710

main61732-52231i200711-200808

main61732-52240i200508-200701

main61732-52241i200702-200808

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-52071i200508-200808

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-52061i200508-200808

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-52080i200508-200808

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-52080i200508-200808

61753ARETAINER, QUARTER TRIM, LOWER

main61753-52020i200508-200808

61754BRETAINER, QUARTER TRIM, LOWER LH

main61754-52020i200508-200808

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-52100i200808-201107

main61766-52110i200808-201107

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-52120i200808-201107

main61767-52130i200508-200808

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-52151i200508-200808

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-52151i200808-201107

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-52040×2i200808-201107

61824PLATE, NOISE CONTROL, NO.1

main61824-12060×2i200905-201107

main61824-52010×2i200808-200904

61826CPAD, NOISE SHUTTER, NO.3

main61826-52040×2i200508-200808

62151BPAD, COWL SIDE SILENCER

main62151-52030×2i200808-201107

68981ARETAINER, BACK DOOR STAY, RH

main68981-52050i200508-200808

68982ARETAINER, BACK DOOR STAY, LH

main68981-52050i200508-200808

9155100820

main91551-00820

9155180610

main91551-80610

SIDE MEMBER
