MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52130iNCP9#..RHD200508-200808

main55214-52140iNCP90..LHD200508-200808

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-52100iNCP9#..RHD200508-200606

main55215-52101iNCP9#..RHD200607-200808

main55215-52110iNCP90..LHD200508-200808

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-52010iNCP9#..RHD200508-200808

main55216-52020iNCP90..LHD200508-200606

main55216-52021iNCP90..LHD200607-200808

58442FCOVER, JACK

main58442-52060iNCP9#200508-200808

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52A80-B1iNCP9#..RHD..5D200508-200708

DK. GREY,TRIM1#

main58510-52A81-B1iNCP9#..RHD..5D200708-200805

DK. GREY,TRIM1#

main58510-52A82-B1iNCP9#..RHD..5D200806-200808

DK. GREY,TRIM1#

main58510-52A90-B1iNCP90..LHD..5D200508-200608

DK. GREY,TRIM1#

main58510-52A91-B1iNCP90..LHD..5D200608-200708

DK. GREY,TRIM1#

main58510-52A92-B1iNCP90..LHD..5D200708-200805

DK. GREY,TRIM1#

main58510-52A93-B1iNCP90..LHD..5D200806-200808

DK. GREY,TRIM1#

main58510-5D080-B1iNCP9#..3D..ARL200508-200707

DK. GREY,TRIM1#

main58510-5D081-B1iNCP9#..3D..ARL200708-200805

DK. GREY,TRIM1#

main58510-5D082-B1iNCP9#..3D..ARL200808-201107

DK. GREY,TRIM1#

main58510-5D100-B1iNCP90..3D..GEN200508-200608

DK. GREY,TRIM1#

main58510-5D101-B1iNCP90..3D..GEN200608-200707

DK. GREY,TRIM1#

main58510-5D102-B1iNCP90..3D..GEN200708-200805

DK. GREY,TRIM1#

main58510-5D103-B1iNCP9#..3D..GEN200808-201107

DK. GREY,TRIM1#

main58510-52A40-B0iNCP90..3D..5F..GEN200704-200707

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

main58510-52A41-B0iNCP90..3D..5F..GEN200708-200805

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

main58510-52A42-B0iNCP90..3D..5F..GEN200806-200808

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

main58510-52D11-B0iNCP90..LHD..5D..5F..GEN200704-200708

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

main58510-52D12-B0iNCP90..LHD..5D..5F..GEN200708-200805

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

main58510-52D13-B0iNCP9#..4FC..GCC;NCP90..LHD..5D..5F200808-201107

REAR SEAT-UNITED FOLDING,RECLINING,DK. GREY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-10023iNCP9#200808-201107

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07115-B0iNCP9#200508-200808

DK.GRAY,TRIM18,19

58521BHOOK, FLOOR CARPET

main58521-52040×4iNCP9#..3D; NCP9#..5D200808-201107

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52130iNCP9#200508-200808

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52090iNCP9#200508-200808

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52070iNCP9#200508-200808

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52080iNCP9#200508-200808

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-52020-B0iNCP9#200806-200808

DK.GRAY,TRIM1#

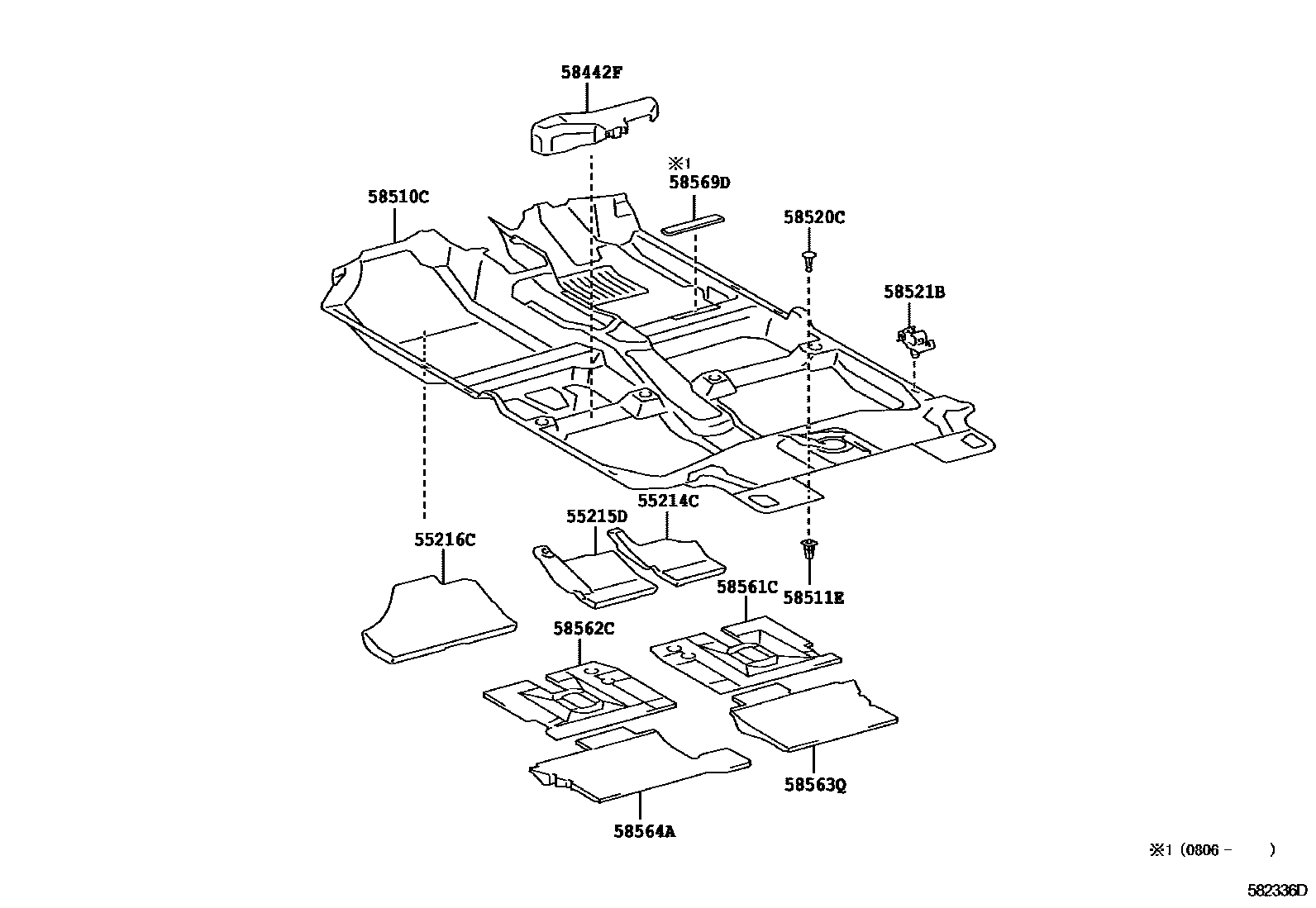

13 parts on this diagram · 1 diagram in section
